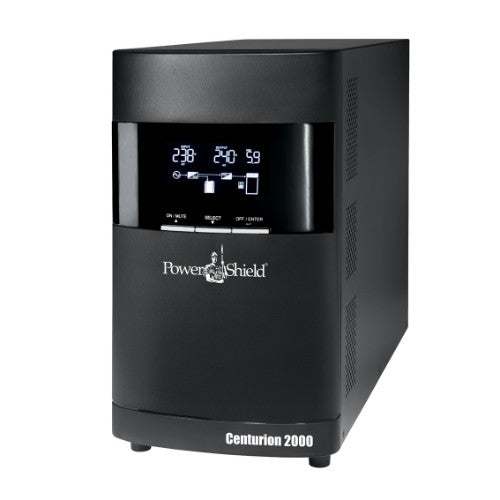

PowerShield Centurion 2000VA uninterruptible power supply (UPS) Double-conversion (Online) 2 kVA 1800 W 6 AC outlet(s)

2000 VA, 1800 W, 6 Outlets, 6 Batteries, 12 V, 9 AH, 425 × 190 × 335 mm, 25000 g

Key Features

• True Online Double Conversion
• Wide input voltage range
• Input power factor correction 0.98
• 50Hz/60Hz frequency converter mode
• Programmable power outlets
• Emergency power off function (EPO)
• Optional Eco-mode operation for energy saving
• Generator compatible
• Backup time for all models is easily extended by simply plugging additional battery banks
• Battery banks are available with internal charger to enable fast recharge even with large battery banks
• USB, RS232, SNMP and AS400 multiple communications available

Description

The PowerShield Centurion UPS provides a permanent backup power solution for sensitive devices such as medical equipment and internet routers.
Use Power Shield Centurion to protect:
Servers
Critical power applications
Items in remote areas (over 30 kms outside of city grid)
Where light to heavy industrial equipment is utilised
Where generators are present
Applications that require remote connectivity

Specifications

Power
Output frequency	47/53 Hz
Output power capacity	2 kVA
Output power	1800 W
Input operation voltage (min)	110 V
Input operation voltage (max)	300 V
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Surge energy rating	1248 J
Efficiency	91%
Emergency Power Off (EPO)	Yes
Power factor	0.9
Output voltage regulation	1%
Crest factor	3:1
Efficiency (On-line mode)	89%
Charging current	1.5 A
Efficiency (ECO mode)	98%
Input frequency	40/70 Hz
Performance
UPS topology	Double-conversion (Online)
Response time	4 ms
Waveform	Pure sine
Noise level	50 dB
Features
Output frequency	47/53 Hz
UPS topology	Double-conversion (Online)
Output power capacity	2 kVA
Response time	4 ms
Output power	1800 W
Input operation voltage (min)	110 V
Input operation voltage (max)	300 V
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Surge energy rating	1248 J
Efficiency	91%
Emergency Power Off (EPO)	Yes
Waveform	Pure sine
Power factor	0.9
Output voltage regulation	1%
Crest factor	3:1
Noise level	50 dB
Efficiency (On-line mode)	89%
Efficiency (ECO mode)	98%
Input frequency	40/70 Hz
Power source type	AC
Charging current	1.5 A
Ports & interfaces
USB port	Yes
AC outlets quantity	6 AC outlet(s)
AC outlet types	C13 coupler
RS-232 ports	1
USB port type	USB Type-B
Battery
Number of batteries supported	6
Battery recharge time	4 h
Battery voltage	12 V
Battery capacity	9 Ah
Charging current	1.5 A
Design
Form factor	Tower
Product colour	Black
Certification	EN62040 - 1 - 1 2003, IEC60950 - 1 - 1, EN62040 - 2 2006, Directive 2001 / 65 / EU
Cooling type	Active
Built-in fan	Yes
Control type	Buttons
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 90%
Technical details
Output frequency	47/53 Hz
Compliance certificates	RoHS
Cooling
Cooling type	Active
Built-in fan	Yes
Weight & dimensions
Width	190 mm
Depth	425 mm
Height	335 mm
Weight	25 kg
Certificates
Certification	EN62040 - 1 - 1 2003, IEC60950 - 1 - 1, EN62040 - 2 2006, Directive 2001 / 65 / EU
