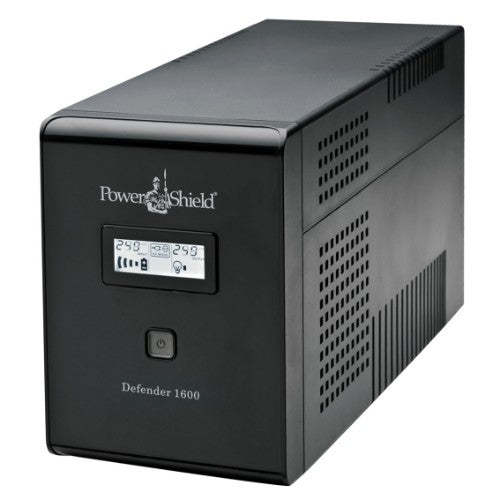

PowerShield Defender 1600VA uninterruptible power supply (UPS) Line-Interactive 1.6 kVA 960 W 6 AC outlet(s)

1600 VA, 960 W, 6 Outlets, 2 Batteries, 12 V, 9 Ah, 397 × 146 × 205 mm, 11500 g

Key Features

• Stylish and informative LCD display
• Surge Protection, Best in its Class
• Excellent microprocessor control guarantees high reliability

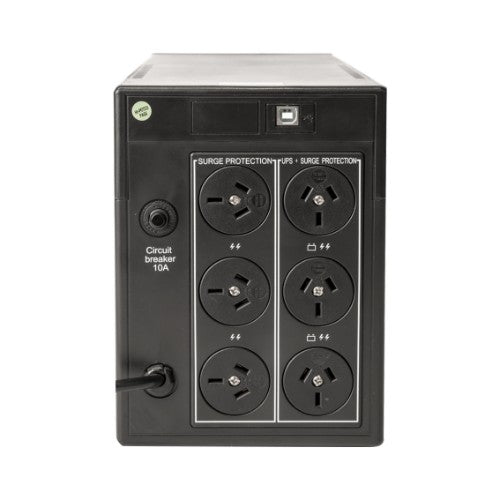

• Australian outlets for UPS and Surge Protection
• Boost and buck AVR for voltage stabilization
• User replaceable batteries
• Silent Operation (No fans included)
• Auto restart while AC is recovering
• Off-mode charging
• Cold start function
• USB communication with sophisticated NetGuard software

Description

The Defender 1600 uses Automatic Voltage Regulation (AVR) to minimise the effects of fluctuations in input voltage protecting your valuable equipment from power line disturbances. The stylish LCD display, user replaceable batteries and Australian sockets makes the Defender the complete package at this level and is ideal for Workstations and Gaming.

Specifications

Power
Output frequency	50/60 Hz
Output power capacity	1.6 kVA
Output power	960 W
Input operation voltage (min)	177 V
Input operation voltage (max)	290 V
Surge energy rating	936 J
Power factor	0.6
Output voltage regulation	10%
Input frequency	50/60 Hz
Performance
UPS topology	Line-Interactive
Response time	6 ms
Waveform	Sine
Power protection features	Battery discharge, Overcharge, Overload, Short circuit
Noise level	5 dB
Features
Output frequency	50/60 Hz
UPS topology	Line-Interactive
Output power capacity	1.6 kVA
Response time	6 ms
Output power	960 W
Input operation voltage (min)	177 V
Input operation voltage (max)	290 V
Surge energy rating	936 J
Waveform	Sine
Power protection features	Battery discharge, Overcharge, Overload, Short circuit
Power factor	0.6
Output voltage regulation	10%
Noise level	5 dB
Input frequency	50/60 Hz
Power source type	AC
Ports & interfaces
USB port	Yes
AC outlets quantity	6 AC outlet(s)
USB port type	USB Type-B
Battery
Number of batteries supported	2
Battery recharge time	6 h
Battery voltage	12 V
Battery capacity	9 Ah
Design
Form factor	Tower
Product colour	Black
Certification	(A-tick PSD650) EN62040-1 -1 2003, IEC60950-1 : 2001, EN62040-2 2006, Directive 2011/65/EU
Control type	Buttons
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90%
Technical details
Output frequency	50/60 Hz
Compliance certificates	RoHS
Weight & dimensions
Width	146 mm
Depth	397 mm
Height	205 mm
Weight	11.5 kg
Certificates
Certification	(A-tick PSD650) EN62040-1 -1 2003, IEC60950-1 : 2001, EN62040-2 2006, Directive 2011/65/EU
