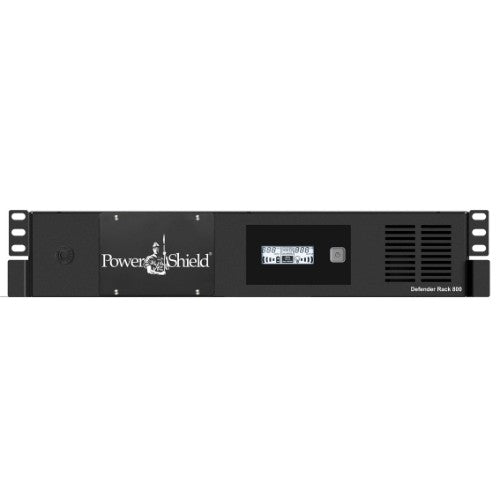

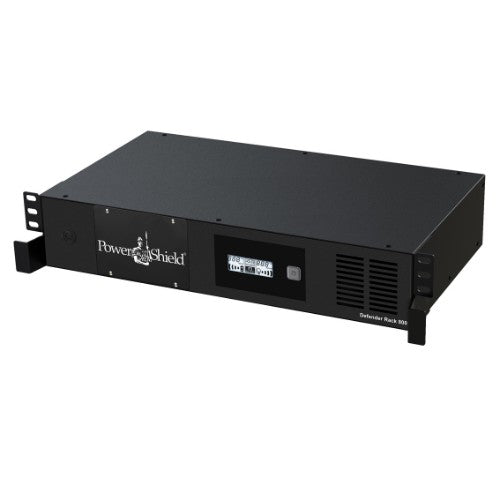

PowerShield Defender uninterruptible power supply (UPS) Line-Interactive 0.8 kVA 480 W 6 AC outlet(s)

800 VA, 480 W, 1 Batteries, 12 V, 9 Ah, 8 Outlets, 438 x 230 x 86 mm, 7700 g

Description

RACK UPS. The Defender Rackmount expands the successful Defender Range by building the popular features into a Rack Mount NAS UPS perfect for shallow, wall mounted Comms cabinets.

This versatile UPS uses Automatic Voltage Regulation (AVR) to minimise the effects of fluctuations in input voltage, protecting your valuable equipment from power line disturbances whilst also incorporating the best surge protection in its class.

Specifications

Power
Output frequency	50/60 Hz
Output power capacity	0.8 kVA
Output power	480 W
Input operation voltage (min)	177 V
Input operation voltage (max)	290 V
Surge energy rating	312 J
Maximum current	6500 A
Output voltage regulation	1%
Input frequency	50/60 Hz
Performance
Audible alarm modes	Fault, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Response time	6 ms
Waveform	Sine
Power protection features	Battery discharge, Overcharge, Overload
Auto-restart	Yes
Automatic Voltage Regulation (AVR)	Yes
Noise level	5 dB
LED indicators	Yes
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
Audible alarm modes	Fault, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Output power capacity	0.8 kVA
Response time	6 ms
Output power	480 W
Input operation voltage (min)	177 V
Input operation voltage (max)	290 V
Surge energy rating	312 J
Maximum current	6500 A
Waveform	Sine
Power protection features	Battery discharge, Overcharge, Overload
Output voltage regulation	1%
Auto-restart	Yes
Automatic Voltage Regulation (AVR)	Yes
Noise level	5 dB
Audible alarm(s)	Yes
Input frequency	50/60 Hz
Power source type	AC
Detachable power cord	Yes
Ports & interfaces
USB port	Yes

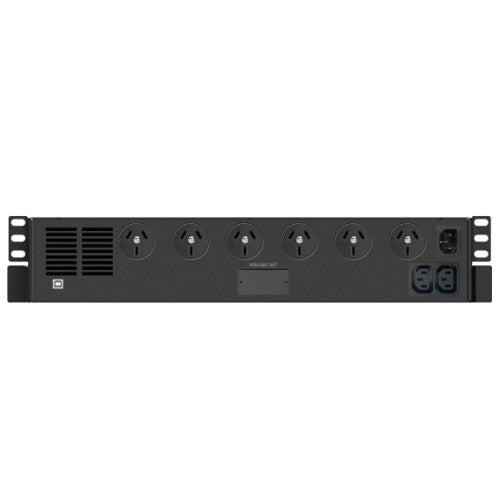

AC outlets quantity	6 AC outlet(s)
USB port type	USB Type-B
Battery
Battery recharge time	6 h
Battery voltage	12 V
Battery capacity	9 Ah
Design
Rack capacity	2U
Form factor	Rackmount/Tower
Product colour	Black
Certification	EN62040-1 -1 2003, IEC60950-1 : 2001, EN62040-2 2006 Directive 2011/65/EU
LED indicators	Yes
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90%
Technical details
Output frequency	50/60 Hz
Compliance certificates	RoHS
Weight & dimensions
Width	438 mm
Depth	230 mm
Height	86 mm
Weight	7.7 kg
Certificates
Certification	EN62040-1 -1 2003, IEC60950-1 : 2001, EN62040-2 2006 Directive 2011/65/EU
