APC Smart-UPS On-Line, 1000VA/1000W, Tower, 230V, 6x C13 IEC outlets, SmartSlot, Extended runtime, W/O rail kit

Smart-UPS On-Line, 1000VA/1000W, Tower, 230V, 6x C13 IEC outlets, SmartSlot, Extended runtime, W/O rail kit

Description

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1000VA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with 1x IEC 320 C14 input and 6x IEC 320 C13 outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK4 (4-post) and SRTRK3 (2-post) rail kits sold separately.

Specifications

Power
Output frequency	50/60 Hz
Output power capacity	1 kVA
Output power	1000 W
Input operation voltage (min)	220 V
Input operation voltage (max)	240 V
Output operation voltage (min)	50 V
Output operation voltage (max)	240 V
Surge energy rating	432 J
Emergency Power Off (EPO)	Yes
Output voltage Total Harmonic Distortion (THD)	2%
Crest factor	3:1
ECO mode	Yes
Input frequency	40/70 Hz
Ports & interfaces
Cable length	1.8 m
USB port	Yes
Serial interface	Yes
Serial interface type	RJ-45
SmartSlot	Yes
AC outlets quantity	12 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C14 coupler
Serial ports quantity	1
Performance
Audible alarm modes	Alarm when on battery, Battery replacement
UPS topology	Double-conversion (Online)
Waveform	Sine
Auto-restart	Yes
Noise level	50 dB
LED indicators	Yes
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
Audible alarm modes	Alarm when on battery, Battery replacement
UPS topology	Double-conversion (Online)
Output power capacity	1 kVA
Output power	1000 W
Input operation voltage (min)	220 V
Input operation voltage (max)	240 V
Output operation voltage (min)	50 V
Output operation voltage (max)	240 V
Surge energy rating	432 J
Emergency Power Off (EPO)	Yes
Waveform	Sine
Output voltage Total Harmonic Distortion (THD)	2%
Crest factor	3:1
Auto-restart	Yes
Noise level	50 dB
Audible alarm(s)	Yes
ECO mode	Yes
Input frequency	40/70 Hz
Battery
Battery life (max)	5 year(s)
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	3 h

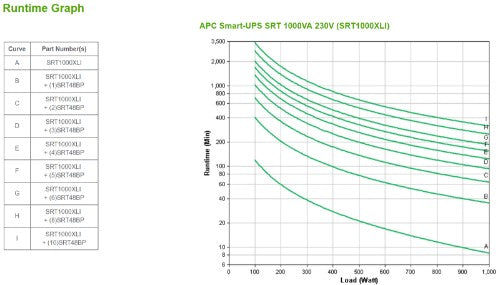

Typical backup time at half load	21 min
Typical backup time at full load	8 min
Hot-swap battery	Yes
Cold start	Yes
Battery voltage	48 V
Automatic battery test	Yes
Design
Rack capacity	2U
Form factor	Rackmount/Tower
Product colour	Black
International Protection (IP) code	IP20
Certification	CE, EAC
Cable length	1.8 m
Cooling type	Active
LED indicators	Yes
Built-in fan	Yes

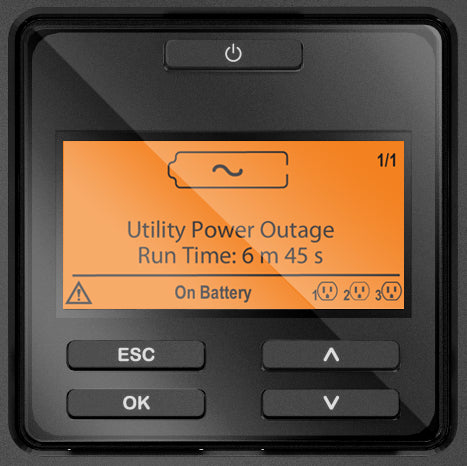

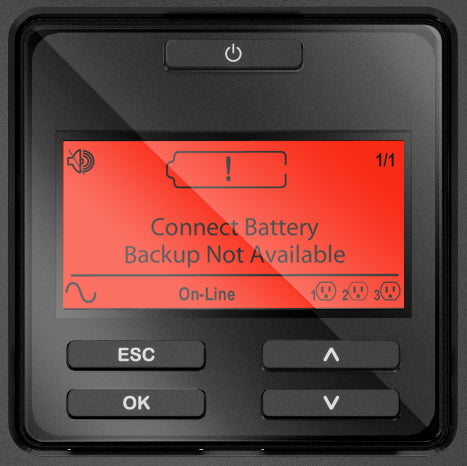

Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 15240 m
Technical details
Output frequency	50/60 Hz
Sustainability compliance	Yes
Sustainability certificates	Green Premium
Harmonized System (HS) code	85078000
Total carbon footprint (kg of CO2e)	1839.69
Compliance certificates	CE
Certificates
Certification	CE, EAC
Compliance certificates	CE
Packaging content
Quick installation guide	Yes
Cables included	USB cable
Cooling
Cooling type	Active
Built-in fan	Yes
Sustainability
Sustainability compliance	Yes
Sustainability certificates	Green Premium
Weight & dimensions
Width	85 mm
Depth	505 mm
Height	432 mm
Weight	20.5 kg
Battery width	59.4 cm
Battery depth	74.9 cm
Battery height	24.6 cm
Battery weight	29.6 kg
Packaging data
Quick installation guide	Yes
Cables included	USB cable
Logistics data
Harmonized System (HS) code	85078000
Total carbon footprint (kg of CO2e)	1839.69
Other features
Nominal output voltage	230 V
Nominal input voltage	230 V
