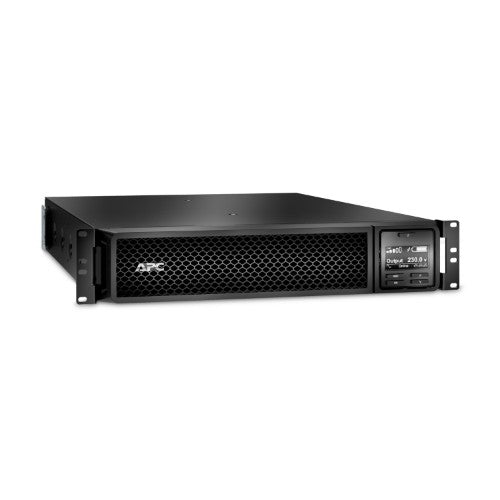

APC Smart-UPS On-Line, 1000VA/1000W, Rackmount 2U, 230V, 6x C13 IEC outlets, SmartSlot, Extended runtime, W/ rail kit

Smart-UPS On-Line, 1000VA/1000W, Rackmount 2U, 230V, 6x C13 IEC outlets, SmartSlot, Extended runtime, W/ rail kit

Description

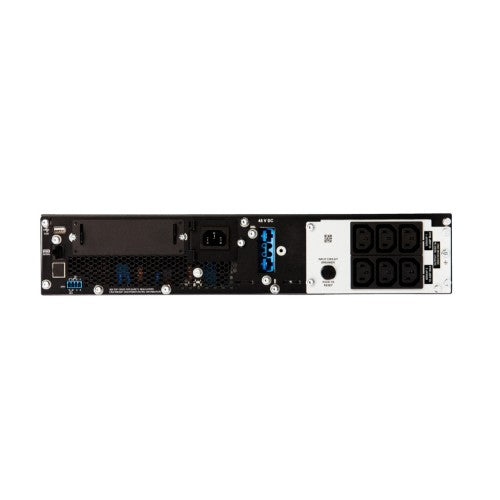

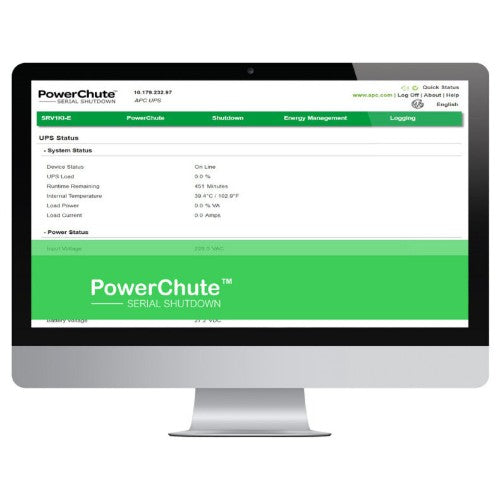

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1000VA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with IEC 320 C14, BS1363A British and Schuko CEE 7/EU1-16P inputs, and 6x IEC 320 C13 outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.

Specifications

Power
Output frequency	50/60 Hz
Output power capacity	1 kVA
Output power	1000 W
Input operation voltage (min)	50 V
Input operation voltage (max)	150 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	432 J
Emergency Power Off (EPO)	Yes
Crest factor	3:1
Input frequency	40/70 Hz
Ports & interfaces
Cable length	1.5 m
USB port	Yes
Serial interface	Yes
Serial interface type	RJ-45
SmartSlot	Yes
AC outlet types	IEC 60320
USB 2.0 ports quantity	1
Performance
UPS topology	Double-conversion (Online)
Waveform	Sine
Noise level	50 dB

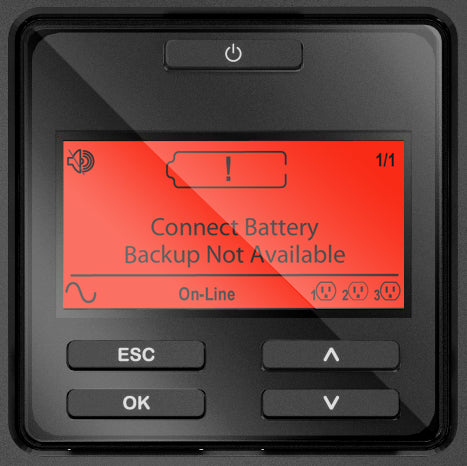

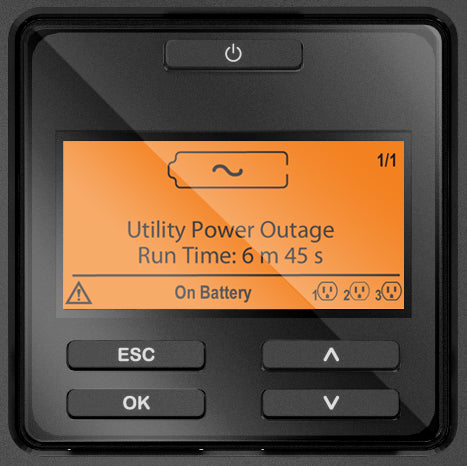

LED indicators	Status
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
UPS topology	Double-conversion (Online)
Output power capacity	1 kVA
Output power	1000 W
Input operation voltage (min)	50 V
Input operation voltage (max)	150 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	432 J
Emergency Power Off (EPO)	Yes
Waveform	Sine
Crest factor	3:1
Noise level	50 dB
Audible alarm(s)	Yes
Input frequency	40/70 Hz
Battery
Battery life (max)	5 year(s)
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	3 h
Hot-swap battery	Yes
Design
Form factor	Rackmount/Tower
Product colour	Black
International Protection (IP) code	IP20
Certification	CE, EAC
Cable length	1.5 m
LED indicators	Status
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Technical details
Output frequency	50/60 Hz
Sustainability certificates	Green Premium
Harmonized System (HS) code	85078000
Total carbon footprint (kg of CO2e)	1843.14
Compliance certificates	RoHS
Certificates
Certification	CE, EAC
Compliance certificates	RoHS
Sustainability
Sustainability certificates	Green Premium
Weight & dimensions
Width	432 mm
Depth	505 mm
Height	85 mm
Weight	21 kg
Package width	594 mm
Package depth	749 mm
Package height	246 mm
Package weight	29.6 kg
Packaging data
Package width	594 mm
Package depth	749 mm
Package height	246 mm
Package weight	29.6 kg
Logistics data
Products per pallet	12 pc(s)
Harmonized System (HS) code	85078000
Total carbon footprint (kg of CO2e)	1843.14
