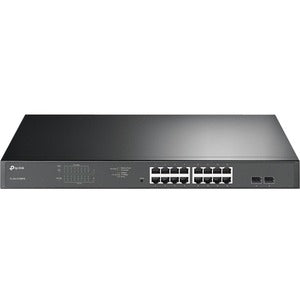

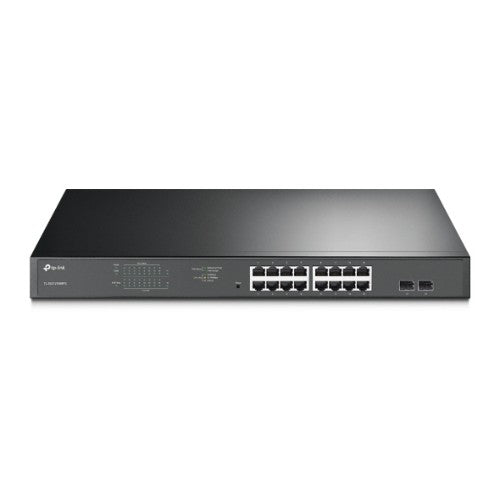

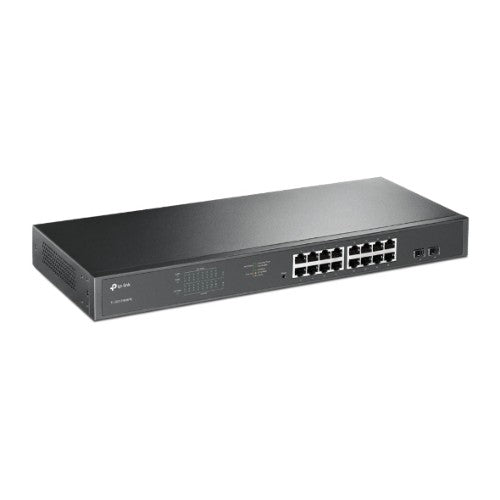

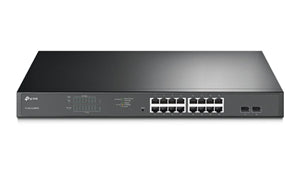

TP-Link JetStream 16-Port Gigabit Easy Smart PoE/PoE+ Switch

JetStream 16-Port Gigabit Easy Smart PoE/PoE+

Key Features

• 16 10/100/1000Mbps RJ45 POE+ Ports Switch
• PoE power budget is up to 192W, making it ideal for small to medium business surveillance systems
• Port Priority is able to guarantee the quality of sensitive application like video monitor
• Intelligent power management can protect the switch from overload
• QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV

Description

Ideal for Surveillance
TL-SG1218MPE complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget is up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.

Intelligent Power Management
When total power consumption excels 192W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.

Making Management Easy
TL-SG1218MPE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1218MPE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.

Specifications

Management features
Switch layer	L2
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Ports & interfaces
SFP module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	16
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Network
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Number of VLANs	32
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
VLAN support	Yes
Rate limiting	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
Virtual LAN features	Port-based VLAN
IGMP snooping	Yes
Optical fiber
Fiber ethernet cabling technology	1000BASE-X
Data transmission
Jumbo frames	9000
MAC address table	8000 entries
Switching capacity	36 Gbit/s
Store-and-forward	Yes
Number of queues	4
Jumbo frames support	Yes
Packet buffer memory	4.1 MB
Forwarding rate	23.8 Mpps
Number of VLANs	32
Security
Loop protection	Yes
Security algorithms	SNMP, SNMPv2, SNMPv3
IGMP snooping	Yes
Design
Rack mounting	Yes
Product colour	Black
Form factor	1U
Number of fans	2 fan(s)
Certification	CE, FCC, RoHS
Power
Power consumption (max)	217.22 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	16
Total Power over Ethernet (PoE) budget	192 W
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	741.15 BTU/h
Virtual LAN features
Number of VLANs	32
VLAN support	Yes
Virtual LAN features	Port-based VLAN
Weight & dimensions
Width	440 mm
Depth	180 mm
Height	44 mm
Packaging content
Rack mount kit	Yes
User guide	Yes
Cables included	AC
Packaging data
Package width	250 mm
Package depth	528 mm
Package height	80 mm
Package weight	2.91 kg
Rack mount kit	Yes
User guide	Yes
Cables included	AC
Performance
Packet buffer memory	4.1 MB
Auto-negotiation	Yes
Harmonized System (HS) code	85176990
Technical details
Harmonized System (HS) code	85176990
Certificates
Certification	CE, FCC, RoHS
Logistics data
Harmonized System (HS) code	85176990
