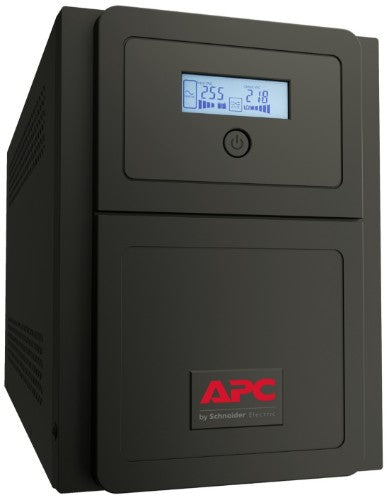

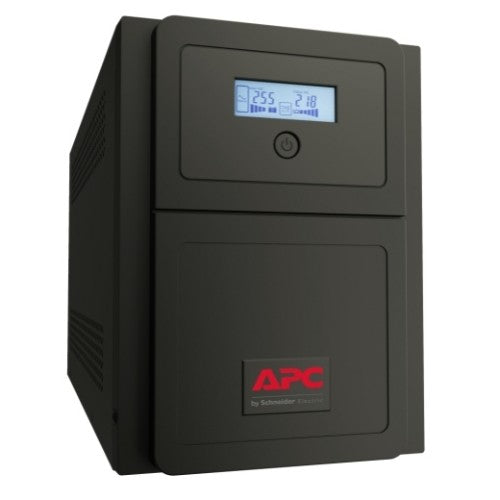

APC Easy UPS 1 Ph Line Interactive, 1000VA, Tower, 230V, 6 IEC C13 outlets, AVR, Dry Contact, LCD, W/O Network Card support

Easy UPS 1 Ph Line Interactive, 1000VA, Tower, 230V, 6 IEC C13 outlets, AVR, Dry Contact, LCD, W/O Network Card support

Key Features

• Best Value UPS with Battery Backup & Surge Protection for Electronics and Computers
• Includes: Documentation CD, USB cable, User Manual

Description

This APC Single phase Easy UPS is designed for essential power protection needs of small to medium businesses even in the most unstable power conditions. This 1000VA line interactive tower UPS provides pure sine wave power to handle a wide voltage range and inconsistent power conditions. The plug and play SMV comes with IEC 320 C14 input connection and 6x IEC 320 C13 outlets. The line interactive UPS supports communication interfaces like the USB port and RS-232 for monitoring and management. The UPS has an intelligent card slot for an optional network management card (APV9602) that enables network-based UPS monitoring and management. The Easy UPS and built-in lead-acid battery are covered by a 2-year warranty. Ideal for business PC/workstations, small offices, server rooms, audio/video systems, and retail point-of-sale. The UPS is compatible with the replacement battery APCRBCV206.

Specifications

Power
Output frequency	50/60 Hz
Output power capacity	1 kVA
Output power	700 W
Input operation voltage (min)	160 V
Input operation voltage (max)	295 V
Efficiency	97.9%
Crest factor	3:1
Input frequency	45/65 Hz
Performance
Audible alarm modes	Alarm when on battery, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Response time	2 ms
Waveform	Sine
Automatic Voltage Regulation (AVR)	Yes
LED indicators	Yes
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
Audible alarm modes	Alarm when on battery, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Output power capacity	1 kVA
Response time	2 ms
Output power	700 W
Input operation voltage (min)	160 V
Input operation voltage (max)	295 V
Efficiency	97.9%
Waveform	Sine
Crest factor	3:1
Automatic Voltage Regulation (AVR)	Yes
Audible alarm(s)	Yes
Input frequency	45/65 Hz

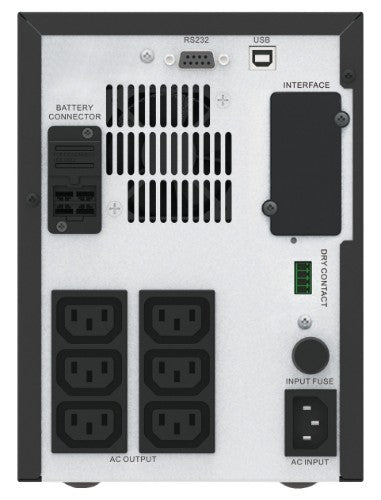

Ports & interfaces
USB port	Yes
SmartSlot	Yes
AC outlets quantity	6 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C14 coupler
USB 2.0 ports quantity	1
Battery
Battery life (max)	5 year(s)
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	4 h
Cold start	Yes
Design
Form factor	Tower
Product colour	Black, Grey
Certification	CE
LED indicators	Yes
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 3000 m
Technical details
Output frequency	50/60 Hz
Harmonized System (HS) code	85078000
Compliance certificates	RoHS
Certificates
Certification	CE
Compliance certificates	RoHS
Packaging content
Cables included	USB cable
Weight & dimensions
Width	160 mm
Depth	410 mm
Height	220 mm
Weight	13.6 kg
Battery width	27.2 cm
Battery depth	50.8 cm
Battery height	33.9 cm
Battery weight	16.6 kg
Packaging data
Cables included	USB cable
Logistics data
Harmonized System (HS) code	85078000
Other features
Nominal output voltage	230 V
Nominal input voltage	230 V
