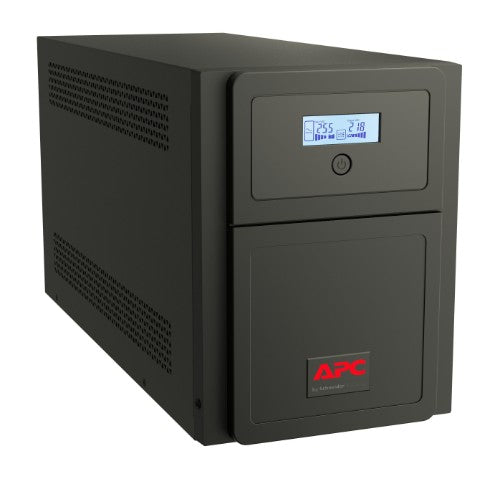

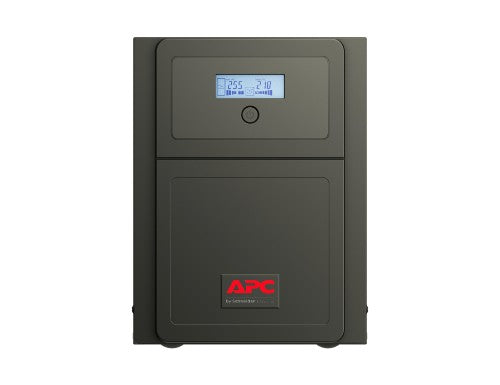

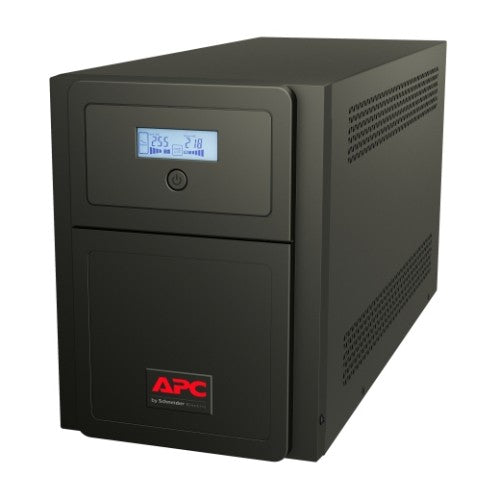

APC Easy UPS 1 Ph Line Interactive, 2000VA, Tower, 230V, 6 IEC C13 outlets, AVR, Dry Contact, LCD, W/O Network Card support

Easy UPS 1 Ph Line Interactive, 2000VA, Tower, 230V, 6 IEC C13 outlets, AVR, Dry Contact, LCD, W/O Network Card support

Description

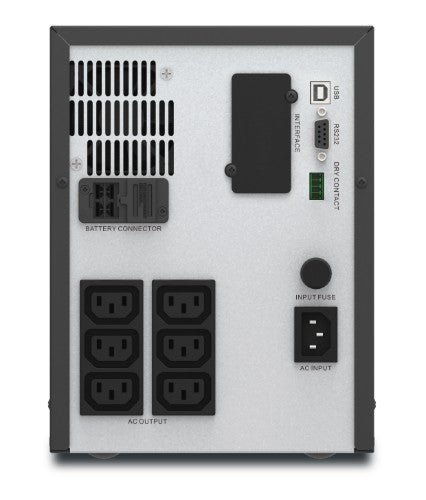

This APC Single phase Easy UPS is designed for essential power protection needs of small to medium businesses even in the most unstable power conditions. This 2000VA line interactive tower UPS provides pure sine wave power to handle a wide voltage range and inconsistent power conditions. The plug and play SMV comes with IEC 320 C14 input connection and 6x IEC 320 C13 outlets. The line interactive UPS supports communication interfaces like the USB port and RS-232 for monitoring and management. The UPS has an intelligent card slot for an optional network management card (APV9602) that enables network-based UPS monitoring and management. The Easy UPS and built-in lead-acid battery are covered by a 2-year warranty. Ideal for business PC/workstations, small offices, server rooms, audio/video systems, and retail point-of-sale. The UPS is compatible with the replacement battery APCRBCV208.

Specifications

Power
Output frequency	50/60 Hz
Output power capacity	2 kVA
Output power	1400 W
Input operation voltage (min)	157 V
Input operation voltage (max)	303 V
Output operation voltage (min)	230 V
Output operation voltage (max)	230 V
Maximum current	20 A
Output voltage regulation	-1 - 1%
Crest factor	3:1
Input frequency	45/65 Hz
Performance
Audible alarm modes	Alarm when on battery, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Waveform	Sine
Power protection features	Overload, Short circuit
Automatic Voltage Regulation (AVR)	Yes
Noise level	45 dB
LED indicators	Yes
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
Audible alarm modes	Alarm when on battery, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Output power capacity	2 kVA
Output power	1400 W
Input operation voltage (min)	157 V
Input operation voltage (max)	303 V
Output operation voltage (min)	230 V
Output operation voltage (max)	230 V
Maximum current	20 A
Waveform	Sine
Power protection features	Overload, Short circuit
Output voltage regulation	-1 - 1%
Crest factor	3:1
Automatic Voltage Regulation (AVR)	Yes
Noise level	45 dB
Audible alarm(s)	Yes
Input frequency	45/65 Hz
Ports & interfaces
USB port	Yes
AC outlets quantity	6 AC outlet(s)
AC outlet types	IEC 320
Battery
Battery life (max)	5 year(s)
Battery technology	Sealed Lead Acid (VRLA)
Number of batteries supported	4
Battery recharge time	4 h
Cold start	Yes
Battery voltage	12 V
Battery capacity	7 Ah
Design
Form factor	Tower
Product colour	Black
International Protection (IP) code	IP20
LED indicators	Yes
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Technical details
Output frequency	50/60 Hz
Harmonized System (HS) code	85078000
Packaging content
Cables included	USB cable
Manual	Yes
Weight & dimensions
Width	180 mm
Depth	455 mm
Height	240 mm
Weight	23.5 kg
Battery width	32.6 cm
Battery depth	60.1 cm
Battery height	41 cm
Battery weight	26.9 kg
Packaging data
Cables included	USB cable
Manual	Yes
Logistics data
Harmonized System (HS) code	85078000
