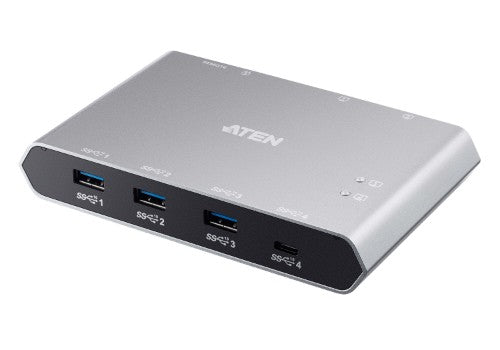

ATEN 2x4 USB-C Gen2 Peripheral Sharing Switch

2x4 USB-C Gen2 Peripheral Sharing Switch

Key Features

• Enables two USB-C computers to share 4 USB 3.2 Gen 2 peripheral devices with data transfer rates up to 10Gbps
• Supports USB-C Power Delivery 3.0 for laptop charging up to 85W (Additional USB-C Power Adapter is needed)*
• BEZEL X – Enable file transfer function and mice control cross two platforms, Windows and Mac
• Supports power profiles 5V, 9V, 15V, and 20V power specification
• Switch device via Remote Port Selector by pressing a button
• LEDs Console Indicator – Allow users to know which computer is active
• Plug and play – No drivers or external power adapter needed
• Over-current protection

Description

ATEN US3342 is a 4-port USB 3.2 Gen 2 peripheral sharing device that allows users to share data between four USB devices in two different USB-C enabled laptops. The US3342 is USB 3.2 Gen 2 compliant, which can support data transfer rate up to 10Gps, and also compatible with USB 3.1 Gen 1, USB 2.0 and USB1.1.

With the US3342, you can quickly and effortlessly switch computers by using a convenient remote port selector pushbutton with LED that indicates which computer is being active. It provides the power that matched to USB-C Windows or Mac laptops with PD Profile specifications of 5V, 9V, 15V, and 20V.

Featuring exclusive function by BEZEL X software, the US3342 allows two laptops to share files and data across two different platforms - Window and Mac, by dragging the mouse from one screen to another. The BEZEL X software makes it easier to control and transfer files in a fingertip.

The connecting cables are bundled to save the extra cost of purchasing more USB cables. The additional USB-C cable included in the US3342 package, which allows the users to connect it to the USB-C laptops for flexible installation. The US3342 is the most cost-effective solution for USB-C equipped laptops.

In conclusion, the US3342 with its compact and all-in-one design is an ideal solution for users that seeks to save desk space and keep the desk well-organized in an efficient manner.

Specifications

Ports & interfaces
Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	USB
DC-in jack	Yes
USB hub	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity	3
Design
Product colour	Silver
LED indicators	Yes
Housing material	Aluminium
Display
Built-in display	No
Technical details
USB hub	Yes
Compliance certificates	RoHS
Sustainability
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	90 mm
Depth	143 mm
Height	23.8 mm
Weight	360 g
Package width	55 mm
Package depth	155 mm
Package height	223 mm
Package weight	548 g
Packaging data
Package width	55 mm
Package depth	155 mm
Package height	223 mm
Package weight	548 g
Logistics data
Master (outer) case width	328 mm
Master (outer) case length	389 mm
Master (outer) case height	173 mm
Master (outer) case gross weight	5.97 kg
Products per master (outer) case	10 pc(s)
Master (outer) case net weight	3.6 kg
Harmonized System (HS) code	85176200
