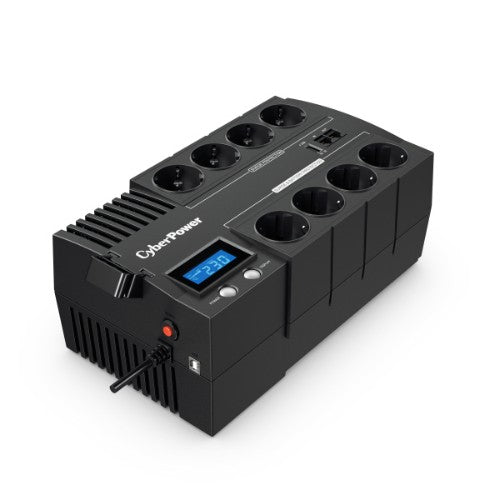

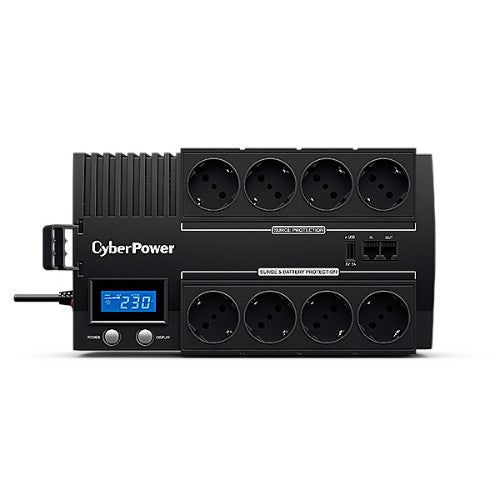

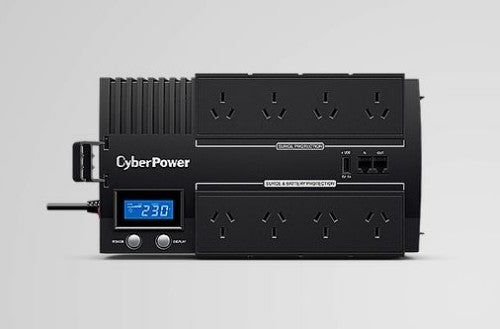

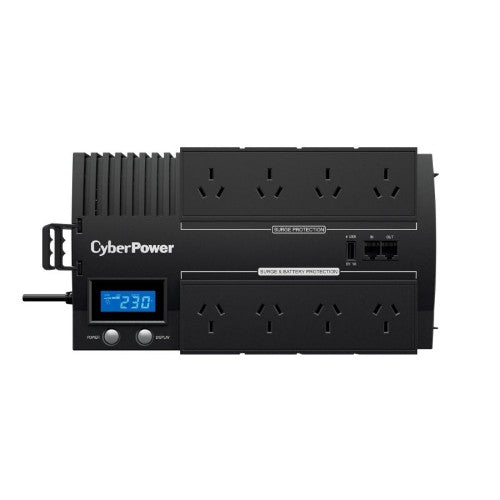

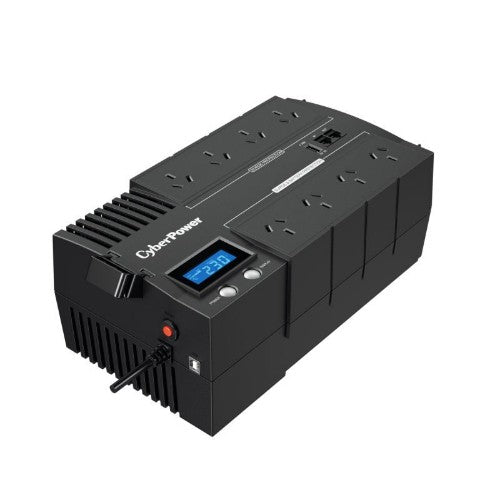

CyberPower BR1000ELCD uninterruptible power supply (UPS) Line-Interactive 1 kVA 600 W 8 AC outlet(s)

Backup UPS for Computer and Peripheral

Key Features

• Line-interactive UPS Topology
• Simulated Sine Wave Output
• USB Charging Port(s)
• Phone/Fax/Modem/DSL/Network Protection
• PowerPanel Management Software
• Energy Saving Technology
• Automatic Voltage Regulation (AVR)
• Surge and Spike Protection
• LCD Status Display
• Wall Mount Installation

Description

CyberPower BR1000ELCD offers home and office users a reliable battery backup and safeguards office PCs, network communication equipment, and other electronic devices from surges, spikes, brownouts and other power incidents. Designed with GreenPower UPS™ Technology to improve UPS operating efficiency and to minimize its energy consumption, users can enjoy significant energy cost savings over conventional UPS systems.

The UPS provides Automatic Voltage Regulation (AVR) to maintain a safe voltage for connected equipment. The featured data line protection protects phones, networks, and other communication equipment against surges/spikes and other power irregularities. Users can access precise information of critical power/battery conditions with the LCD status monitor.

Specifications

Power
Output power capacity	1 kVA
Output power	600 W
Input operation voltage (min)	167 V
Input operation voltage (max)	295 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	150 J
Maximum current	4.46 A
Input frequency	45/65 Hz
Performance
Audible alarm modes	Alarm when on battery, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Response time	4 ms
Waveform	Sine
LED indicators	Yes
Audible alarm(s)	Yes
Features
Country of origin	China
Audible alarm modes	Alarm when on battery, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Output power capacity	1 kVA
Response time	4 ms
Output power	600 W
Input operation voltage (min)	167 V
Input operation voltage (max)	295 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	150 J
Maximum current	4.46 A
Waveform	Sine
Audible alarm(s)	Yes
Input frequency	45/65 Hz
Ports & interfaces
USB port	Yes
AC outlets quantity	8 AC outlet(s)
AC outlet types	Type F
Power plug	Type F
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	2
USB port type	USB Type A/USB Type-C
Battery
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	8 h
Typical backup time at half load	5 min
Typical backup time at full load	1 min
Hot-swap battery	Yes
Design
Country of origin	China
Form factor	Desktop
Product colour	Black
LED indicators	Yes
Control type	Buttons
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 90%
Operating altitude	0 - 3000 m
Technical details
Sustainability compliance	Yes
Harmonized System (HS) code	8504408590
Compliance certificates	CE, RoHS
Certificates
Compliance certificates	CE, RoHS
Packaging content
Cables included	Serial, USB cable
Manual	Yes
Sustainability
Sustainability compliance	Yes
Weight & dimensions
Width	288 mm
Depth	166 mm
Height	118 mm
Weight	6.5 kg
Package width	158 mm
Package depth	325 mm
Package height	230 mm
Package weight	6.95 kg
Packaging data
Cables included	Serial, USB cable
Manual	Yes
Package width	158 mm
Package depth	325 mm
Package height	230 mm
Package weight	6.95 kg
Logistics data
Country of origin	China
Harmonized System (HS) code	8504408590
