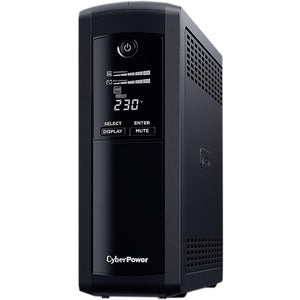

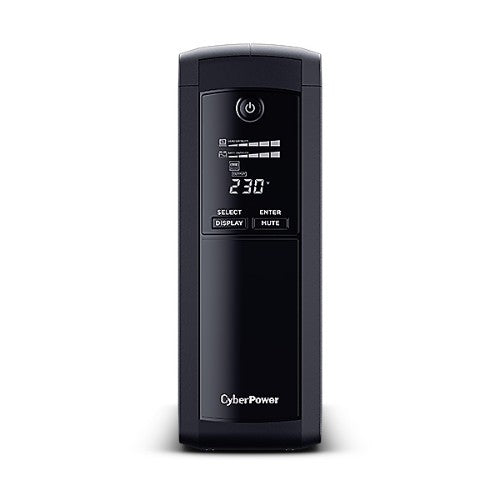

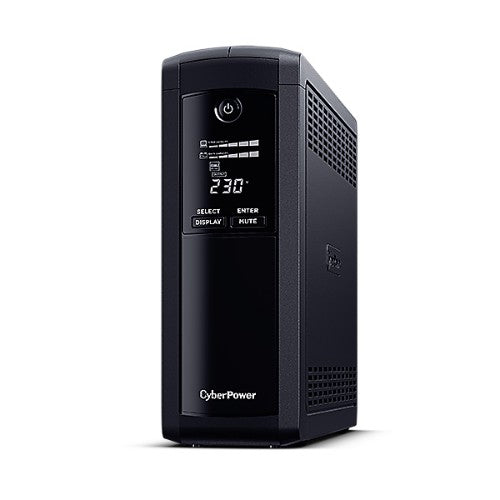

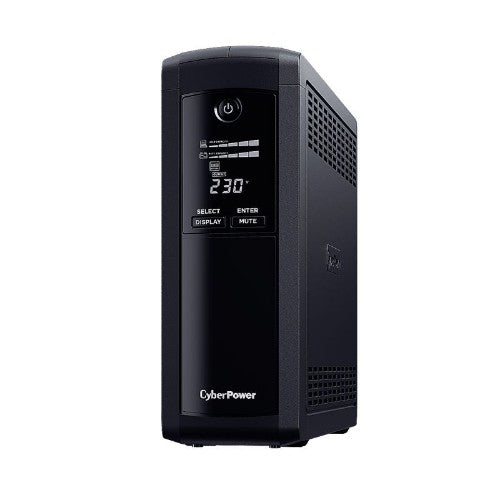

CyberPower VP1200ELCD uninterruptible power supply (UPS) Line-Interactive 1.2 kVA 720 W 5 AC outlet(s)

1200 VA, 720W, 167-295V, 50/60Hz, 5.2A, 450J, 50 dB, 100x355x281mm, 9.62kg

Key Features

• Line-interactive UPS Topology
• Generator Compatible
• Automatic Voltage Regulation (AVR)
• High-speed Ethernet Data Transmission
• Surge and Spike Protection
• PowerPanel Management Software
• Energy Saving Technology
• Simulated Sine Wave Output
• LCD Status Display
• USB Connectivity Port

Description

VP1200ELCD

CyberPower VP1200ELCD offers home and office users a reliable battery backup and safeguards office PCs and other electronic devices from surges, spikes, brownouts and other power incidents. Designed with GreenPower UPS Technology to improve operating efficiency and to minimize energy consumption, users can enjoy significant energy cost savings over conventional UPS systems. The UPS provides Automatic Voltage Regulation (AVR) to maintain safe voltage for connected equipment. The UPS provides multifunctional LCD readout to display clear power and battery conditions. The product features data line protection with high-speed transmission to safeguard phones, network and communication equipment against surge/spike as well as supply 1Gbps speed to transmit data. The UPS is also compatible with PowerPanel Power Management Software to achieve real-time monitoring and configuration.

Specifications

Power
Output frequency	50/60 Hz
Output power capacity	1.2 kVA
Output power	720 W
Input operation voltage (min)	167 V
Input operation voltage (max)	295 V
Output operation voltage (max)	230 V
Surge energy rating	450 J
Maximum current	5.2 A
Output voltage regulation	10%
Input frequency	50/60 Hz
Ports & interfaces
Cable length	1.5 m
USB port	Yes
Serial interface	Yes
Serial interface type	RS-232
Cabling technology	10/100/1000Base-T(X)

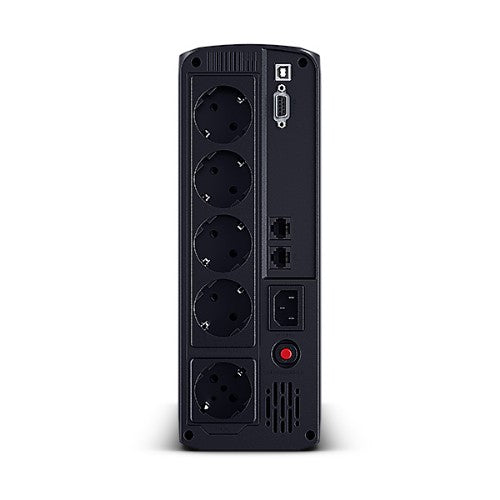

AC outlets quantity	5 AC outlet(s)
AC outlet types	Type F
Power plug	C14 coupler
USB 2.0 ports quantity	1
Serial ports quantity	1
Ethernet LAN (RJ-45) ports	2
USB port type	USB Type-B
Performance
Audible alarm modes	Alarm when on battery, Fault, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Number of output phases	1
Number of input phases	1
Response time	4 ms
EMI/RFI noise filtering	Yes
Surge protection	Yes
Waveform	Sine
Power protection features	Over voltage
Automatic Voltage Regulation (AVR)	Yes
LED indicators	Yes
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
Country of origin	China
Audible alarm modes	Alarm when on battery, Fault, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Output power capacity	1.2 kVA
Number of output phases	1
Number of input phases	1
Response time	4 ms
Output power	720 W
Input operation voltage (min)	167 V
Input operation voltage (max)	295 V
Output operation voltage (max)	230 V
Surge energy rating	450 J
Maximum current	5.2 A
EMI/RFI noise filtering	Yes
Surge protection	Yes
Waveform	Sine
Power protection features	Over voltage
Output voltage regulation	10%
Automatic Voltage Regulation (AVR)	Yes
Audible alarm(s)	Yes
Input frequency	50/60 Hz
Heat dissipation	74 BTU/h
Battery
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	8 h
Typical backup time at half load	12 min
Typical backup time at full load	4 min
Design
Country of origin	China
Form factor	Tower
Product colour	Black
Certification	CE, RCM
Cable length	1.5 m
LED indicators	Yes
Housing material	Plastic
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 90%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 3000 m
Technical details
Output frequency	50/60 Hz
Sustainability compliance	Yes
Harmonized System (HS) code	8504408590
Compliance certificates	RoHS
Certificates
Certification	CE, RCM
Compliance certificates	RoHS
Packaging content
Cables included	USB cable
Manual	Yes
Sustainability
Sustainability compliance	Yes
Weight & dimensions
Width	100 mm
Depth	355 mm
Height	281 mm
Weight	9.62 kg
Package width	430 mm
Package depth	165 mm
Package height	384 mm
Package weight	10.7 kg
Packaging data
Cables included	USB cable
Manual	Yes
Package width	430 mm
Package depth	165 mm
Package height	384 mm
Package weight	10.7 kg
Logistics data
Country of origin	China
Harmonized System (HS) code	8504408590
