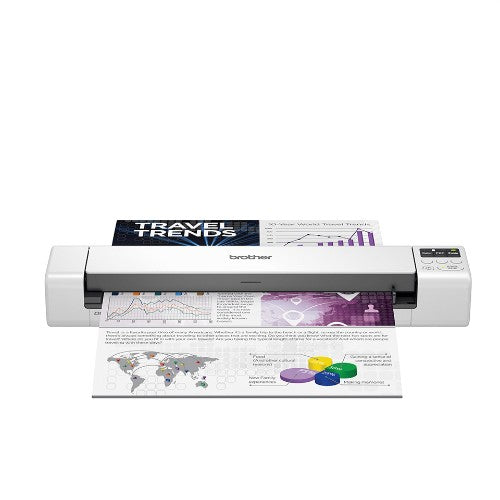

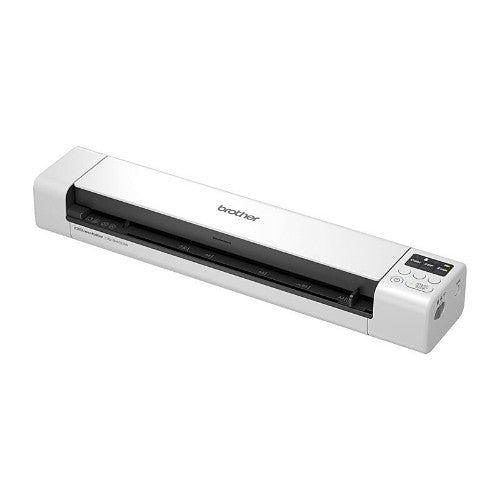

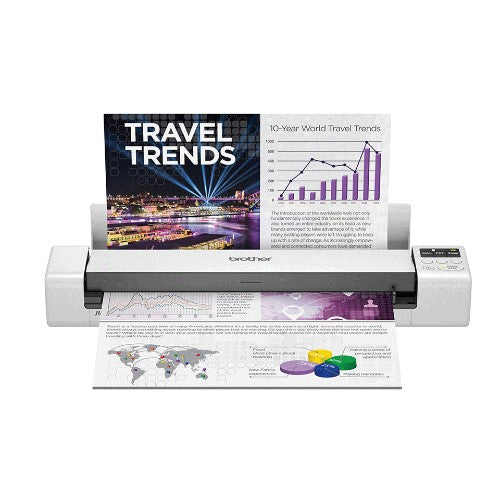

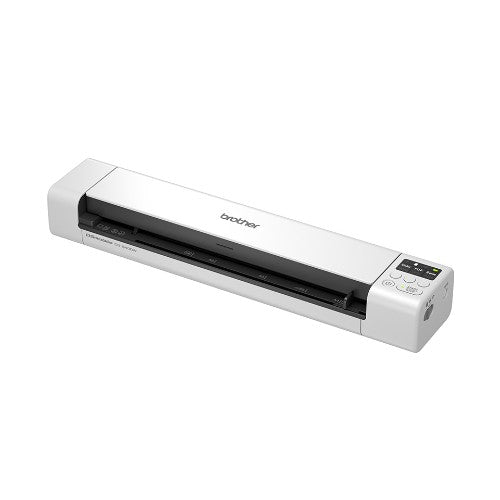

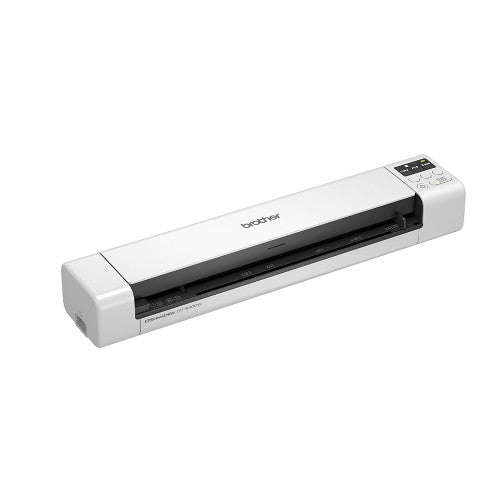

Brother DS-940DW scanner Sheet-fed scanner 600 x 600 DPI A4 Black, White

Portable, A4, 15 ppm, 1200 x 1200 dpi, micro USB 3.0 Type B, WLAN, microSD, 319 x 63 x 45.4 mm, 699 g

Key Features

• Automatic 2-sided A4 scanning up to 15 pages per minute
• Space saving ‘U-path’ paper feed system
• Industry leading software to scan documents, receipts and ID cards
• Power directly from a USB 3.0 port on PC
• Built-in rechargeable battery and card reader
• Connect to a wireless network or Brother mobile app

Description

Brother DSmobile DS-940DW Wireless, 2-sided Portable Document Scanner
Wireless scan and go with the DSmobile DS-940DW. Versatile and truly portable with built-in rechargeable battery. Staying on top of your paperwork when you are out of the office is simple.

The DSmobile DS-940DW is engineered to be truly flexible. Featuring a built-in battery, Wi-Fi and intuitive LCD panel, setup is effortless. Digitising your files whether in the office where space is limited or out on the road is simple.

Scan your documents straight to the cloud using Brother's mobile app and easily share your documents with colleagues wherever you are. Your information is kept safe, effortless to find and more convenient to edit.

With a unique "U-path" roller system, you are not required to have extra space behind the scanner for the document to feed-through. As the document goes in, it glides over the top of the scanner and is returned to you.

Specifications

Scanning
Maximum scan size	215.9 x 1828.8 mm
Optical scanning resolution	600 x 600 DPI
Enhanced scan resolution	1200 x 1200 DPI
Colour scanning	Yes
Duplex scanning	Yes
Input colour depth	48 bit
Output colour depth	24 bit
ADF scan speed (b/w, A4)	15 ppm
ADF scan speed (colour, A4)	15 ppm
Duplex ADF scan speed (colour, A4)	30 ipm
Black/white scanning colour modes	Grayscale, Monochrome
Design
Built-in display	No
Product colour	Black, White
Scanner type	Sheet-fed scanner
Performance
Scan to	E-mail, File, Image, Memory card, OCR
Scan drivers	ICA, SANE, TWAIN, WIA
Scanning noise level	53 dB
Internal memory	512 MB
Compatible memory cards	MicroSD (TransFlash)
Sound pressure level (max)	42 dB
Input capacity
Standard input capacity	1 sheets
Paper handling
Maximum scan width	21.6 cm
Maximum scan length	182.9 cm
Maximum ISO A-series paper size	A4
Scanning media types supported	Business Card, Plain paper, Plastic Card
Card thickness (max)	1.24 mm
Ports & interfaces
USB connector type	Micro-USB B
Standard interfaces	USB 3.2 Gen 1 (3.1 Gen 1), Wireless LAN
USB port	Yes
USB version	3.2 Gen 1 (3.1 Gen 1)
Network
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	64-bit WEP, 128-bit WEP, WPA-AES, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK
Wi-Fi Direct	Yes
Supported network protocols (IPv4)	DHCP, APIPA (Auto IP), WINS/NetBIOS, DNS Resolver, mDNS, SNMPv1/v2c, ICMP, Web Services(Scan), HTTP/HTTPS server, LLMNR responder,SNTP Client
Power
Power supply type	USB
Power consumption (typical)	3.6 W
Power consumption (standby)	2.2 W
Power consumption (off)	0.11 W
Weight & dimensions
Width	162 mm
Depth	76 mm
Height	377 mm
Weight	590 g
Package width	377 mm
Package depth	162 mm
Package height	76 mm
Package weight	1.23 kg
Packaging data
Package width	377 mm
Package depth	162 mm
Package height	76 mm
Package weight	1.23 kg
Quantity per pack	1 pc(s)
Packaging content
Quick start guide	Yes
Cables included	Micro-USB
Warranty card	Yes
Technical details
Maximum scan width	21.6 cm
Pallet gross height	15.9 cm
Master (outer) cases per pallet layer	9 pc(s)
Harmonized System (HS) code	84716070
Pallet type	800 x 1200 mm
Features
Country of origin	China
System requirements
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%
Other features
Spare part retention	5 year(s)
Pallet gross weight	274.3 kg
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	64-bit WEP, 128-bit WEP, WPA-AES, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK
Scanner type	Sheet-fed scanner
Country of origin	China
Products per pallet	216 pc(s)
Layers per pallet	8 pc(s)
Master (outer) cases per pallet	72 pc(s)
Quantity per pack	1 pc(s)
Logistics data
Pallet gross weight	274.3 kg
Country of origin	China
Products per pallet	216 pc(s)
Layers per pallet	8 pc(s)
Master (outer) cases per pallet	72 pc(s)
Quantity per pack	1 pc(s)
Pallet gross height	15.9 cm
Master (outer) cases per pallet layer	9 pc(s)
Harmonized System (HS) code	84716070
