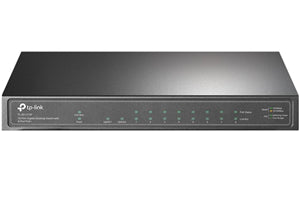

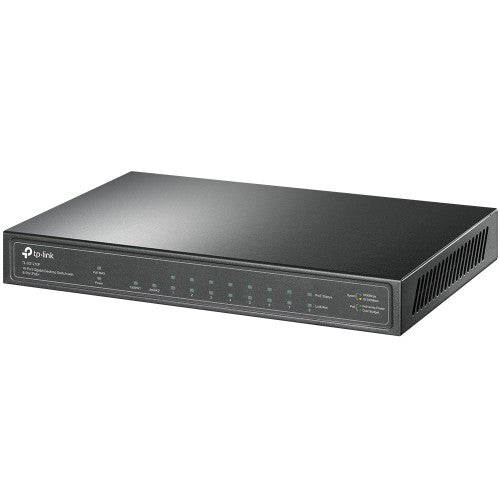

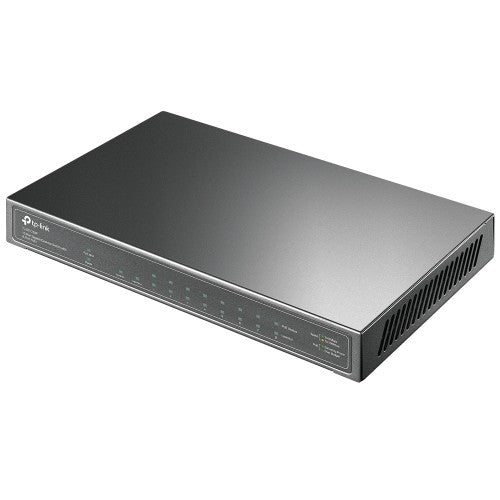

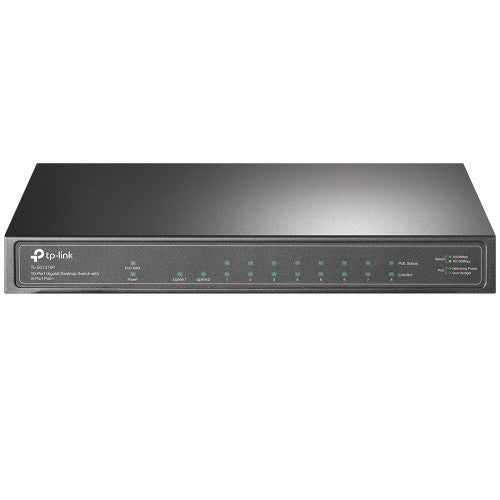

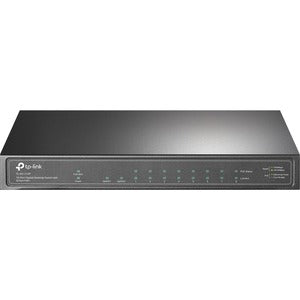

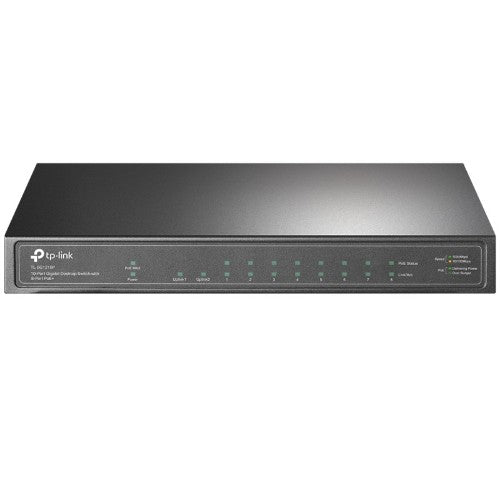

TP-Link TL-SG1210P network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

9x 10/100/1000, 1x 1G SFP, PoE+, 63 W PoE budget ports, 209 x 126 x 26 mm

Key Features

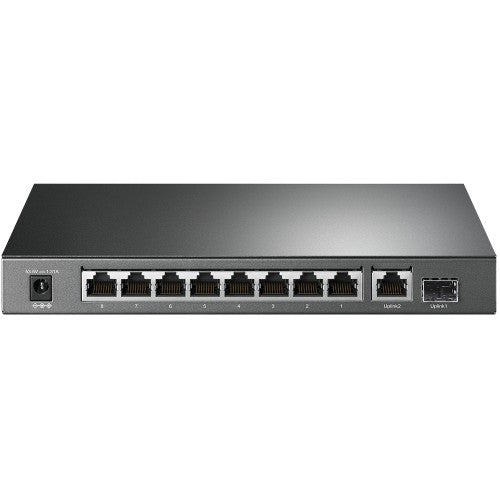

• 9 10/100/1000Mbps RJ45 ports, 1 Gigabit SFP port
• With 8 PoE+ ports, transfers data and power on one single cable
• Working with IEEE 802.3af/at compliant PDs, expands home and office network
• 802.1p/DSCP QoS enable smooth latency-sensitive traffic
• High PoE power budget with up to 30W for each PoE port and 63W for all PoE ports
• Easy to use, with no configuration and installation needed

Description

PoE Switches for Your Ultra Convenience

10-Port Gigabit Desktop Switch with 8-Port PoE+
TL-SG1210P

Surveillance
Work with IP Cameras

Conference Call
Work with IP Phones

Wi-Fi Coverage
Work with Omada EAPs

Easy to Use

Power over Ethernet

Port 1-8 of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices (PDs).

Intelligent Power Management

When total power consumption excels 63W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.

Advanced Functions for Higher Performance

Qos
For Fluent Online Experience

Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.

IGMP
Snooping
Traffic Optimization for IPTV

IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.

Sturdy Metal Casing

Sturdy, compact metal casing, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.

Specifications

Management features
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Ports & interfaces
SFP module slots quantity	1
Basic switching RJ-45 Ethernet ports quantity	9
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	9
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Network
MAC address auto-learning supported	Yes
MAC address auto-aging supported	Yes
Networking standards	IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
IGMP snooping	Yes
Optical fiber
Fiber type	Single-mode
Fiber ethernet cabling technology	1000BASE-X
Data transmission
MAC address table	4000 entries
Switching capacity	20 Gbit/s
Store-and-forward	Yes
Security
IGMP snooping	Yes
Design
Wall mountable	Yes
Product colour	Grey
LED indicators	Yes
Housing material	Metal
Certification	CE, FCC, RoHS
Performance
Fanless	Yes
Auto-negotiation	Yes
Harmonized System (HS) code	85176990
Power
Power consumption (max)	78.13 W
Power supply included	No
Power consumption (typical)	7.11 W
Input current	1.31 A
DC input voltage	53.5 V
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	63 W
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	266.42 BTU/h
Weight & dimensions
Width	209 mm
Depth	126 mm
Height	26 mm
Packaging content
User guide	Yes
Quick start guide	Yes
Manual	Yes
Cables included	AC
Technical details
Harmonized System (HS) code	85176990
Certificates
Certification	CE, FCC, RoHS
Packaging data
User guide	Yes
Quick start guide	Yes
Manual	Yes
Cables included	AC
Logistics data
Harmonized System (HS) code	85176990
