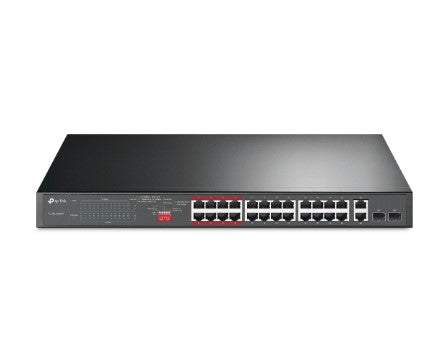

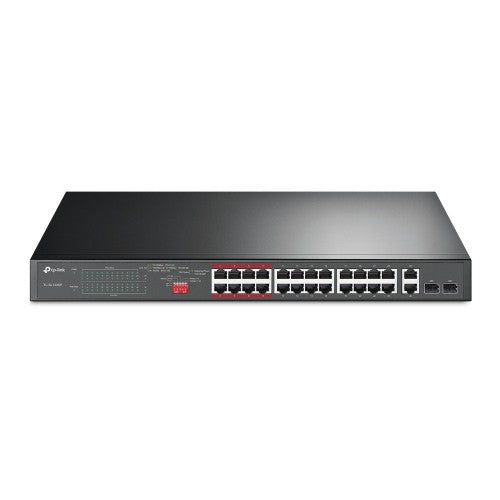

TP-Link 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch

24x 10/100, 2x 1000, PoE+, 250 W PoE budget ports, 2x 1G SFP, 440 x 180 x 44 mm

Key Features

• 24× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 2× combo Gigabit SFP slots
• High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports
• Up to 250 m data and power PoE transmission range under Extend Mode, ideal for surveillance system
• Priority Mode ensures high priority of ports 1–8 to guarantees the quality of sensitive applications like video monitor
• Isolation Mode allows one-click client traffic separation for higher security and performance

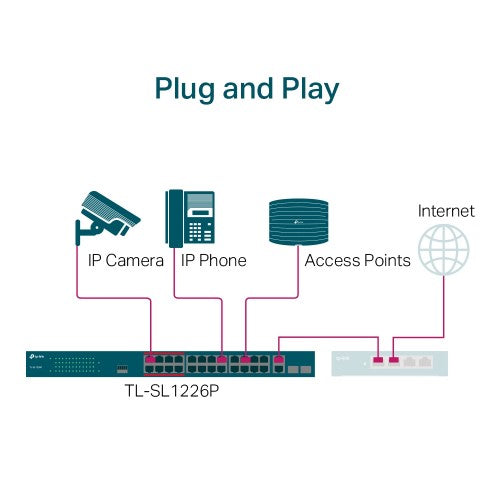

• Plug and play, with no configuration and installation needed

Description

Professional High Power 24-Port PoE+ Switch

Plug and Play, with PoE Transmission for Surveillance up to 250 m

- 250 W PoE Budget
- Transmission Distance up to 250 m
- One-Click Priority Mode
- One-Click Traffic Separation
- Ultra HD Video
- Plug and Play

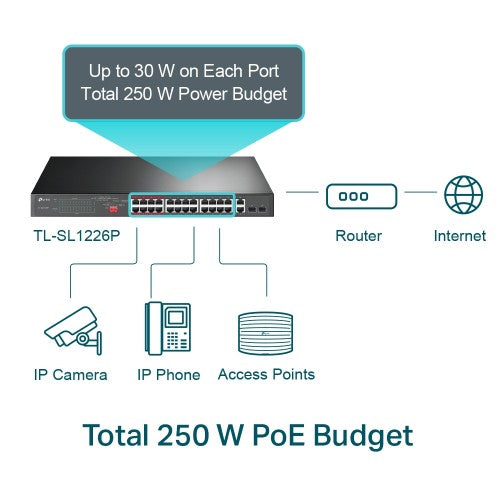

Dedicated 24-Port PoE+ Switch for Wide Range of Applications with 250 W PoE Budget

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget for the 24× PoE ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

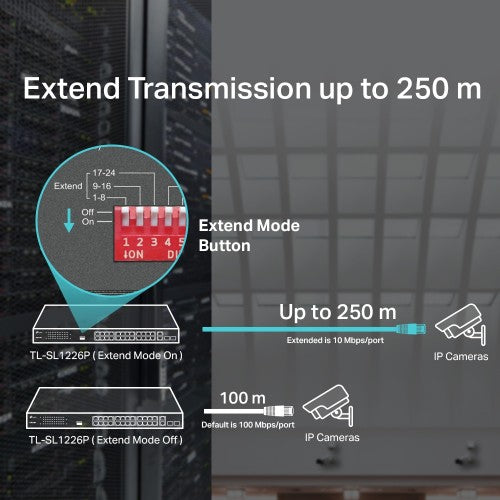

Dedicated Design for IP Surveillance—Up to 250 m Transmission

With extend mode, the PoE transmission distance reaches up to 250 m — perfect for IP Camera deployment in large areas.

Dedicated Design for IP Surveillance — Higher Performance and Security

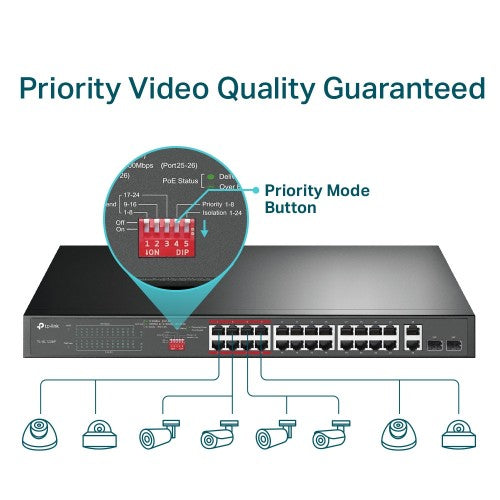

Priority Video Quality Guaranteed

Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–8 when one-touch Priority Mode is on.

One-Click Traffic Separation for Ports 1-24

With one click, Isolation Mode easily divides traffic for ports 1–24 to avoid snooping and tampering. This enables the switch to isolate broadcast storm, improving LAN security and data transmission.

Smooth HD Video Monitoring

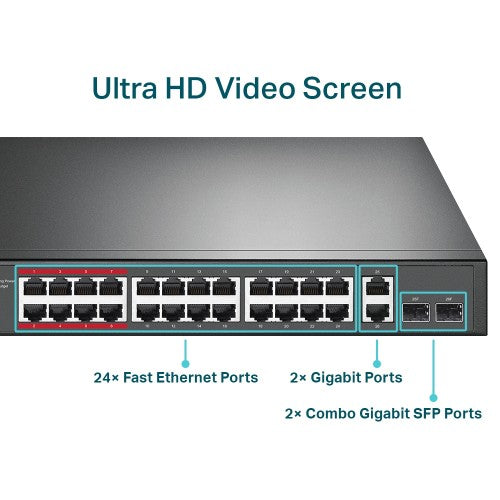

2× gigabit RJ45 ports and 2× combo gigabit SFP ports ensure smooth streaming even when 24× HD IP cameras work simultaneously.

Intelligent Power Management to Prevent Power Overload

When your total power consumption exceeds 250 W, Intelligent Power Management automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.

Wide Operating Temperature with Good Heat Dissipation

Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50℃) with reliability.

Specifications

Management features
Traffic classification	Yes
Switch type	Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	26
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity	2
Fast Ethernet (copper) ports quantity	24
Gigabit Ethernet (copper) ports quantity	2
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Network
Networking standards	IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
Data transmission
Jumbo frames	10000
MAC address table	8000 entries
Switching capacity	8.8 Gbit/s
Store-and-forward	Yes
Jumbo frames support	Yes
Packet buffer memory	4.1 MB
Forwarding rate	6.54 Mpps
Design
Rack mounting	Yes
Product colour	Grey
Form factor	1U
LED indicators	Yes
Number of fans	2 fan(s)
Certification	CE, FCC, RoHS
Power
Power consumption (max)	281 W
Power supply included	Yes
AC input voltage	100 - 240 V
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	30 W
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	24
Total Power over Ethernet (PoE) budget	250 W
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	1002.54 BTU/h
Weight & dimensions
Width	440 mm
Depth	180 mm
Height	44 mm
Packaging content
Rack mount kit	Yes
Quick start guide	Yes
Packaging data
Package width	250 mm
Package depth	528 mm
Package height	80 mm
Package weight	3.02 kg
Rack mount kit	Yes
Quick start guide	Yes
Performance
Packet buffer memory	4.1 MB
Auto-negotiation	Yes
Harmonized System (HS) code	85176990
Technical details
Harmonized System (HS) code	85176990
Certificates
Certification	CE, FCC, RoHS
Logistics data
Harmonized System (HS) code	85176990
