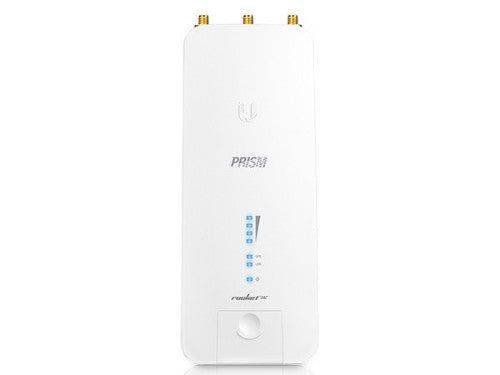

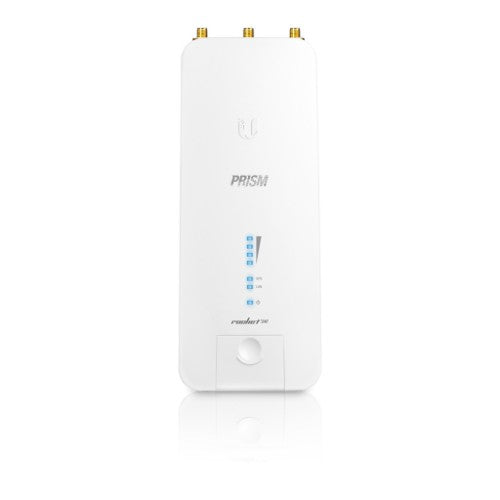

Ubiquiti R2AC White Power over Ethernet (PoE)

2.4 GHz, 330+ Mbps Throughput

Description

The Rocket 2AC features revolutionary airPrism RF filtering technology and proprietary airMAX ac chipset. Deploy the Rocket 2AC for PtP or PtMP links using the 2.4 GHz radio band.

Specifications

Performance
2.4 GHz	Yes
5 GHz	No
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.412 - 2.462, 5.725 - 5.850 GHz
VLAN support	Yes
Quality of Service (QoS) support	Yes
Internal memory	128 MB
Flash memory	16 MB
Built-in processor	Yes
Features
2.4 GHz	Yes
5 GHz	No
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.412 - 2.462, 5.725 - 5.850 GHz
VLAN support	Yes
Quality of Service (QoS) support	Yes
Throughput data rate	330 Mbit/s
Internal memory	128 MB
Flash memory	16 MB
Built-in processor	Yes
Security
Security algorithms	WPA2-AES
Protocols
DHCP client	Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Power
Power consumption (max)	8.5 W
Input current	0.5 A
Power over Ethernet (PoE)	Yes
AC input voltage	24 V
Design
LED indicators	LAN, Power, Signal strength
Product colour	White
Technical details
Harmonized System (HS) code	85176990
Weight & dimensions
Width	88 mm
Depth	40 mm
Height	230 mm
Weight	440 g
Packaging data
Bundled software	Utilities airMagic, airView, Antenna Alignment Tool, Discovery Utility, Site Survey, Ping, Traceroute, Speed Test
Packaging content
Bundled software	Utilities airMagic, airView, Antenna Alignment Tool, Discovery Utility, Site Survey, Ping, Traceroute, Speed Test
Operational conditions
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-40 - 70 °C
Logistics data
Harmonized System (HS) code	85176990
