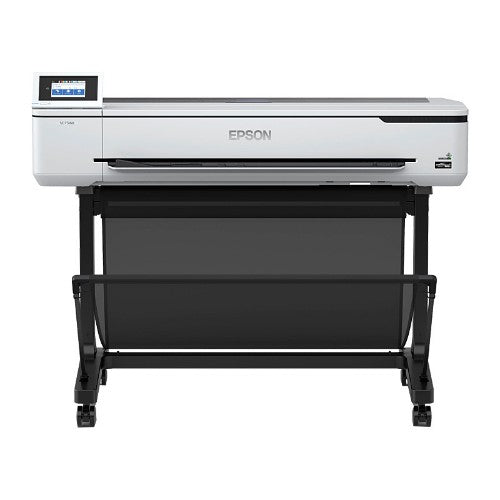

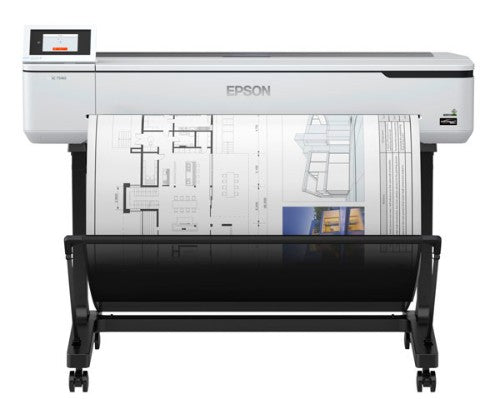

Epson SureColor T5160 large format printer Wi-Fi Inkjet Colour 2400 x 1200 DPI A1 (594 x 841 mm) Ethernet LAN

36", 2400dpi x 1200dpi, 4.3" LCD, USB 3.0 & Ethernet 10Base-T/100Base-TX/1000Base-T, WiFi, 46 kg

Key Features

• High Productivity – prints an A1 image in as little as 31s and includes an integrated auto-cutter
• High Precision – 2400x1200dpi resolution Epson PrecisionCore™ print head with Variable Sized Dot Technology (VSDT) for super fine lines, superior half tones, solid and consistent colour
• High Durability – all-pigment Epson UltraChrome™ XD2 ink dries almost instantly to be moisture & scratch resistant
• High Reliability – solid construction backed with a comprehensive 'heads-n-all' warranty with service cover extendable up to 3 years1
• High Flexibility – supports roll paper up to 36" (914mm) wide, sheet paper up to A0/B1 and has integrated scanner support for optional MFP functionality3
• High Convenience – large 4.3" touchscreen panel with easy to use interface, top loaded ink and media, spindle roll loading, integrated Auto Sheet Feeder, auto sheet/roll switching, single page prints are held by the printer for easy removal while the floor standing model ships with a basket
• Low Running Cost – ultra-low power consumption, uses individual colour cartridges in a choice of sizes up to 80ml
• Easy Integration – compact design, high speed Gigabit Ethernet, convenient WiFi/ WiFi Direct & AirPrint support, HP-GL/2 & RTL emulation2

Description

The Epson SureColor Technical series is a versatile and compact range of printers. They are designed for users who need to produce large-format colour and black-and-white images, economically and at high speed. They are compatible with a wide range of media from basic bond paper, to photographic media. They support high resolution print with dense and consistent colour. They are ideal for maps, plans, drawings, schematics, geological survey diagrams, sales presentations, POS posters and displays. The SC-T5160 features Epson's latest PrecisionCore™ print head and aqueous UltraChrome® XD2 pigment ink. It will print an A1 image in as little as 31s with output that dries almost instantly to be water and rub resistant. Ink ships in a range of cartridge sizes to suit different production and cost-per-print requirements. Designed for small and medium sized businesses that want to produce wide format prints, the printer can be purchased in either a desktop or floor-standing configuration, has a very small footprint, and can be installed against a wall or in a corner. It also ships with software that enables easy printing from office and CAD/GIS applications

Specifications

Print technology
Maximum resolution	2400 x 1200 DPI
Print technology	Inkjet
Printing colours	Black, Yellow, Cyan, Magenta
Colour	Yes
Page description languages	HP-GL/2, ESC/P-P
Printing
Maximum resolution	2400 x 1200 DPI
Print technology	Inkjet
Printing colours	Black, Yellow, Cyan, Magenta
Colour	Yes
Page description languages	HP-GL/2, ESC/P-P
Print quality
Maximum resolution	2400 x 1200 DPI
Printing colours	Black, Yellow, Cyan, Magenta
Paper handling
Maximum print size	A1 (594 x 841 mm)
ISO A-series sizes (A0...A9)	A1, A3, A4
ISO B-series sizes (B0...B9)	B5
Maximum roll diameter	11 cm
Cut sheets	Yes
Paper tray media types	Roll
Roll weight (rear roll)	5 kg
Media types
Paper tray media types	Roll
Media formats
ISO A-series sizes (A0...A9)	A1, A3, A4
ISO B-series sizes (B0...B9)	B5
Maximum roll diameter	11 cm
Display
Display	LCD
Ports & interfaces
USB port	Yes
Wi-Fi	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	1
Ethernet LAN	Yes
Mobile printing technologies	Apple AirPrint
Wi-Fi Direct	Yes
Performance
Internal memory	1024 MB
Display	LCD
Product colour	Black, Grey
Colour display	Yes
Control type	Touch
Built-in display	Yes
Display diagonal	10.9 cm (4.3")
Network
Wi-Fi	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN	Yes
Design
Display	LCD
Product colour	Black, Grey
Colour display	Yes
Control type	Touch
Built-in display	Yes
Display diagonal	10.9 cm (4.3")
Power
Power consumption (typical)	28 W
Power consumption (standby)	8 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (sleep)	1.6 W
Operational conditions
Operating relative humidity (H-H)	20 - 80%
Operating temperature (T-T)	10 - 35 °C
System requirements
Windows operating systems supported	Windows 10, Windows 8, Windows 7, Windows Vista, Windows 8.1
Mac operating systems supported	Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Weight & dimensions
Width	1268 mm
Depth	696 mm
Height	913 mm
Weight	46 kg
