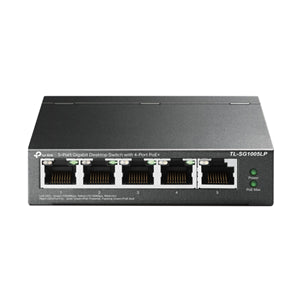

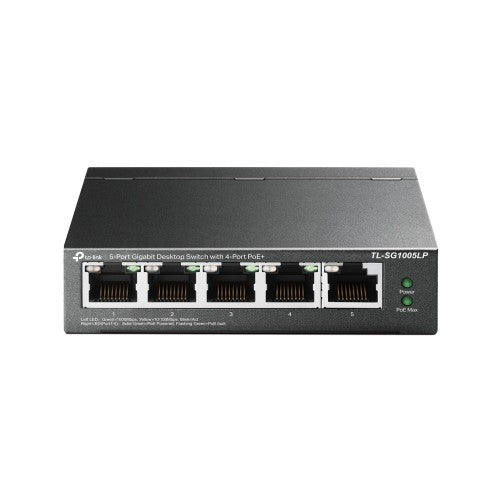

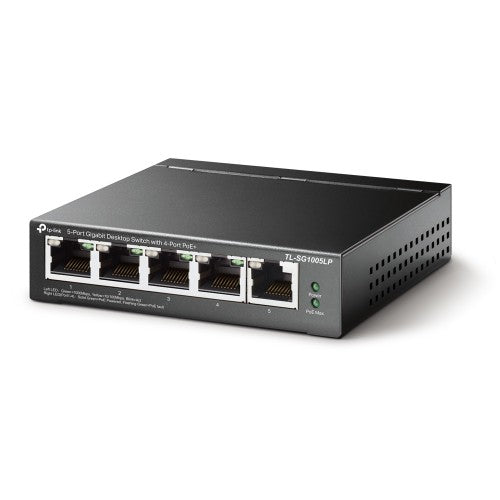

TP-Link TL-SG1005LP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

5x 1G RJ-45, 10 Gbps, 7.44 Mpps, PoE, 99.8×98×25 mm

Key Features

• 5× 10/100/1000 Mbps RJ45 ports
• With four PoE+ ports, transfers data and power on one single cable
• Works with IEEE 802.3af/at compliant PDs
• 802.1p/DSCP QoS enable smooth latency-sensitive traffic
• Supports PoE Power up to 30 W for each PoE port
• Supports PoE Power up to 40 W for all PoE ports
• Plug and play, no configuration and installation required

Description

Professional 5-Port Gigabit Switch with 4 PoE+ Ports
Plug and Play, with PoE power supply which meets the needs of diverse devices.

Dedicated 4-Port PoE+ Switch (40 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 40 W PoE power budget for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

Intelligent Power Management
When total power consumption exceeds 40 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Advanced Functions for Higher Performance
Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.
IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.

Durable Metal Casing
The interior components of TL-SG1005LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1005LP delivers switching performance you can depend on.

Specifications

Management features
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Gigabit Ethernet (copper) ports quantity	5
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Network
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6
MAC address auto-learning supported	Yes
MAC address auto-aging supported	Yes
Networking standards	IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
IGMP snooping	Yes
Data transmission
Jumbo frames	16000
MAC address table	2000 entries
Switching capacity	10 Gbit/s
Store-and-forward	Yes
Jumbo frames support	Yes
Forwarding rate	7.44 Mpps
Security
IGMP snooping	Yes
Design
Wall mountable	Yes
Rack mounting	No
Stackable	No
Product colour	Black
LED indicators	Yes
Certification	FCC, CE, RoHS
Performance
Maximum cable length	100 m
Fanless	Yes
Stackable	No
Auto-negotiation	Yes
Harmonized System (HS) code	85176990
Power
Power consumption (max)	47.5 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Input current	0.81 A
DC input voltage	53.5 V
Power source	DC/PoE
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	4
Total Power over Ethernet (PoE) budget	40 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	161.98 BTU/h
Weight & dimensions
Width	99.8 mm
Depth	98 mm
Height	25 mm
Packaging content
User guide	Yes
Packaging data
Package type	Box
Package width	131 mm
Package depth	196 mm
Package height	121 mm
Package weight	730 g
User guide	Yes
Sustainability
Sustainability compliance	Yes
Technical details
Harmonized System (HS) code	85176990
Sustainability compliance	Yes
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Certificates
Certification	FCC, CE, RoHS
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Logistics data
Harmonized System (HS) code	85176990
