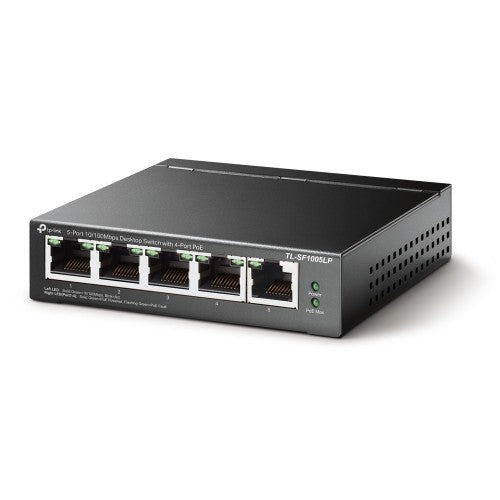

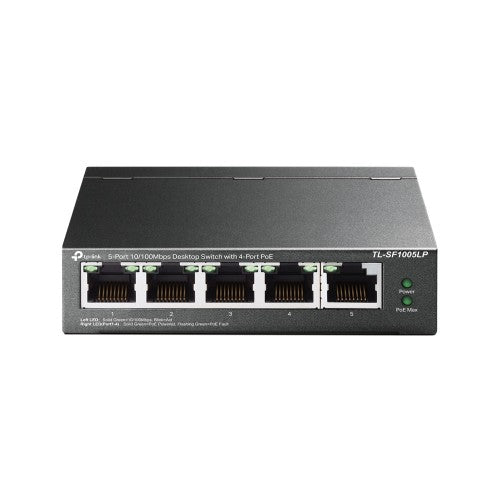

TP-Link 5-Port 10/100Mbps Desktop Switch with 4-Port PoE

5× 10/100 Mbps RJ45, Fanless, AUTO MDI/MDIX, 100 x 98 x 25 mm,

Key Features

• 5× 10/100 Mbps RJ45 ports
• 4× PoE ports transfer data and power on individual cables
• Works with IEEE 802.3af compliant PDs
• Up to 250 m data and power transmitting range under Extend Mode**
• Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
• Supports PoE Power up to 41 W for all PoE ports*
• Plug and play with no configuration required

Description

Professional Fast Ethernet Switch with 4 PoE Ports
Plug and Play, with PoE Transmission for Surveillance up to 250 m

TL-SF1005LP

Dedicated 4-Port PoE Switch (41 W Budget) for Numerous Applications
Compliance with the 802.3af PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

Ideal for IP Surveillance
—Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas.

The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.

Priority Video
Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.

Intelligent Power Management
When total power consumption exceeds 41 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Durable Metal Casing
The interior components of TL-SF1005LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1005LP delivers switching performance you can depend on.

Specifications

Management features
Switch type	Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Network
Cable types supported	Cat3, Cat4, Cat5, Cat5e
MAC address auto-aging supported	Yes
Networking standards	IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
Half duplex	Yes
Data transmission
Jumbo frames	2000
MAC address table	2000 entries
Switching capacity	1 Gbit/s
Store-and-forward	Yes
Jumbo frames support	Yes
Forwarding rate	0.744 Mpps
Design
Rack mounting	No
Product colour	Black
LED indicators	Yes
Performance
Fanless	Yes
Auto-negotiation	Yes
Harmonized System (HS) code	85176990
Power
Power consumption (max)	47 W
Power supply included	Yes
AC input voltage	220 V
AC input frequency	50 Hz
Input voltage	53.5 V
Input current	0.81 A
Power source	DC/PoE
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	4
Total Power over Ethernet (PoE) budget	41 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	160.27 BTU/h
Weight & dimensions
Width	100 mm
Depth	98 mm
Height	25 mm
Packaging content
User guide	Yes
AC adapter included	Yes
Packaging data
AC adapter included	Yes
Package width	131 mm
Package depth	196 mm
Package height	121 mm
Package weight	740 g
User guide	Yes
Sustainability
Sustainability compliance	Yes
Technical details
Harmonized System (HS) code	85176990
Sustainability compliance	Yes
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Other features
Input voltage	53.5 V
Logistics data
Harmonized System (HS) code	85176990
