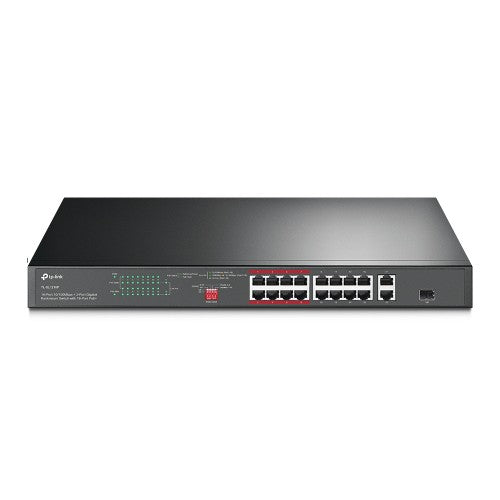

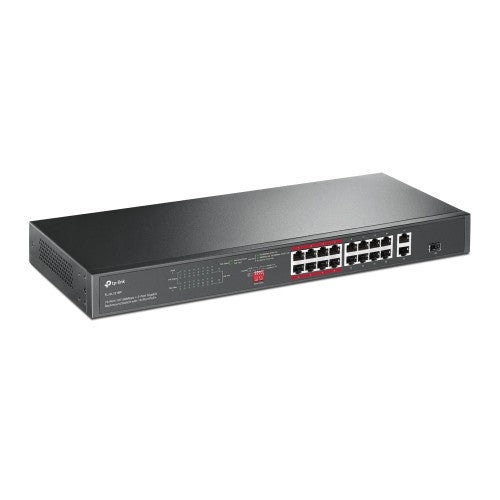

TP-Link 16-Port 10/100 Mbps + 2-Port Gigabit Rackmount PoE Switch with 16-Port PoE+

7.2 Gbps, 5.36 Mpps, 16x 10/100 Mbps RJ-45, 2x 1G RJ-45, 1x Combo SFP, 440x180x44 mm

Key Features

• 16× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 1× combo Gigabit SFP slot
• High PoE power budget with up to 30 W for each PoE port and 150 W for all PoE ports
• Up to 250 m data and power transmission under extend mode specially designed for surveillance system
• Priority mode for ports 1–8 to guarantees the quality of sensitive applications like video monitor
• Isolation Mode allows one-click client traffic separation for higher security and performance
• Easy to use, with no configuration and installation needed

Description

Professional 16-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+

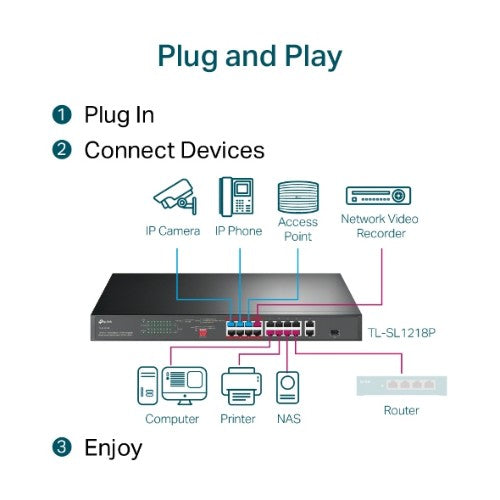

Plug and Play, with PoE Transmission for Surveillance up to 250 m

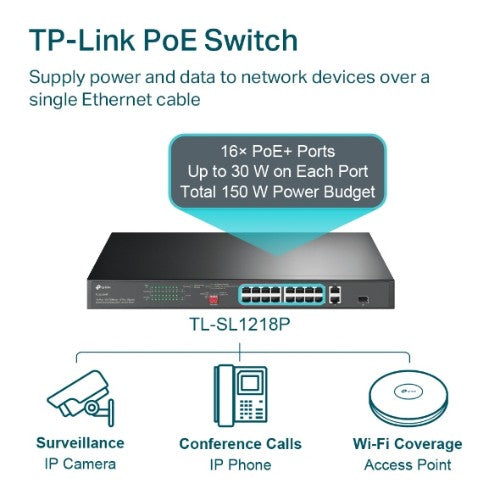

Dedicated 16-Port PoE+ Switch (150 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 150 W PoE power budget for the 16× PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

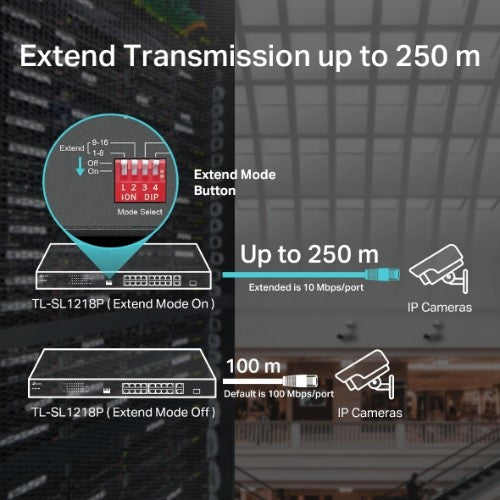

Ideal for IP Surveillance—Up to 250 m Transmission
With extend mode, the PoE transmission distance reaches up to 250 m—perfect for IP Camera deployment in large areas.

Ideal for IP Surveillance —Higher Performance and Security
Priority Mode and Isolation Mode make surveillance smoother and safer.

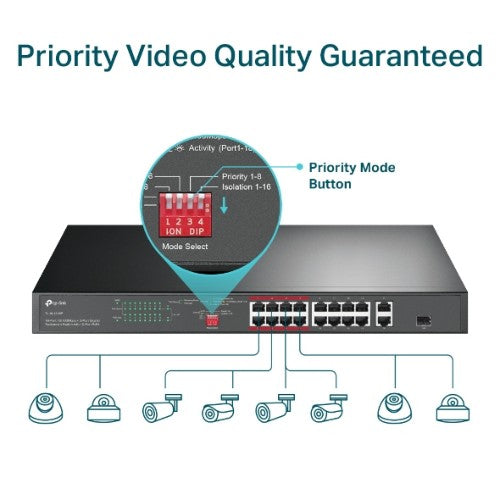

Priority Video Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–8 when one-touch Priority Mode is on.

One-Click Traffic Separation for Ports 1-16
With one click, Isolation Mode easily divides traffic for ports 1–16 to avoid snooping and tampering. This enables the switch to isolate broadcast storm, improving LAN security and data transmission.

Smooth HD Video Monitoring
2× gigabit RJ45 ports and 1× combo gigabit SFP slot ensure smooth streaming even when 16× HD IP cameras work simultaneously.

Intelligent Power Management to Prevent Power Overload
When your total power consumption exceeds 150 W, Intelligent Power Management automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.

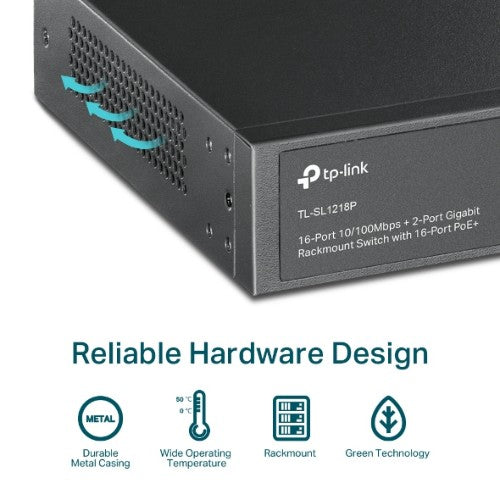

Wide Operating Temperature with Good Heat Dissipation
Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50℃) with reliability.

Multiple Application Scenarios
The TL-SL1218P is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices, such as PCs, printers, and IPTV.

Specifications

Management features
Traffic classification	Yes
Switch type	Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	18
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Combo SFP ports quantity	1
Fast Ethernet (copper) ports quantity	16
Gigabit Ethernet (copper) ports quantity	2
Network
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6
Networking standards	IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
Data transmission
Jumbo frames	10000
MAC address table	8000 entries
Switching capacity	7.2 Gbit/s
Jumbo frames support	Yes
Packet buffer memory	4.1 MB
Forwarding rate	5.36 Mpps
Design
Rack mounting	Yes
Product colour	Black
Form factor	1U
LED indicators	Yes
Housing material	Metal
Number of fans	2 fan(s)
Certification	CE, FCC, RoHS
Power
Power consumption (max)	172.8 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	30 W
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	16
Total Power over Ethernet (PoE) budget	150 W
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	589.25 BTU/h
Weight & dimensions
Width	440 mm
Depth	180 mm
Height	44 mm
Packaging content
Quick start guide	Yes
Cables included	AC
Packaging data
Package width	250 mm
Package depth	528 mm
Package height	80 mm
Package weight	2.8 kg
Quick start guide	Yes
Cables included	AC
Performance
Packet buffer memory	4.1 MB
Auto-negotiation	Yes
Harmonized System (HS) code	85176990
Technical details
Harmonized System (HS) code	85176990
Certificates
Certification	CE, FCC, RoHS
Logistics data
Harmonized System (HS) code	85176990
