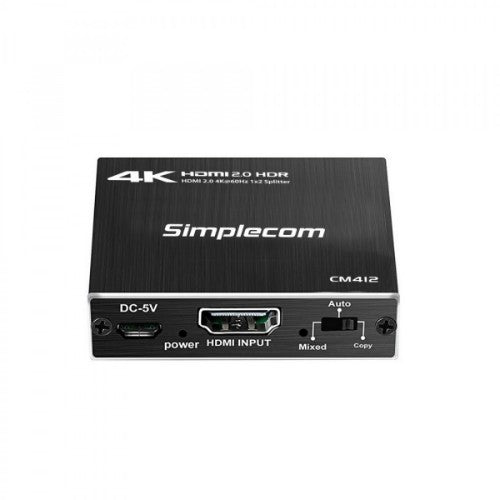

Simplecom CM412 video splitter HDMI 2x HDMI

HDMI 2.0 1x2 Splitter 1 IN 2 Out 4K@60Hz HDR10 2 Port HDMI Duplicator

Key Features

• Simultaneously transmit video and audio from one HDMI source to two HDMI displays
• Auto detects and configures video resolution according to the capabilities of each connected display*
• Downscaling feature, output 4K and 1080p simultaneously
• Support HDMI 2.0b, backwards compatible with HDMI 1.4 and HDMI 1.3
• Support HDCP 2.2, also compatible with HDCP 1.4
• Support resolution up to 4K@60Hz (3840X2160)
• Support 3D, HDR10 (High Dynamic Range)
• LED indication for power and signal
• Plug and play, no software required

Description

CM412 is a 2 Port HDMI 1x2 splitter, allows to duplicate one HDMI signal source device to two displays. CM412 supports video resolutions up to 4Kx2K@60Hz, as well as HDR10 and HDCP2.2 compliant. Widely compatible HDMI devices with HDMI 2.0 support, ideal for latest online streaming box and game console with 4K HDMI output. With downscaling feature, you can use different resolution monitors*, it allows you to play game in 4K from HDMI output 1 and capture in 1080p from HDMI output 2 under Mixed mode.

Specifications

Ports & interfaces
Video ports quantity	3
Video port type	HDMI
Video out	2x HDMI
HDMI version	2.0b
DC-in jack	Yes
Features
Dolby technologies	DTS-HD, Dolby Digital Plus, Dolby TrueHD
LED indicators	Yes
Maximum resolution	3840 x 2160 pixels
HDCP	Yes
Plug and Play	Yes
Product colour	Black
3D	Yes
HD type	4K Ultra HD
HDCP version	1.4/2.2
High Dynamic Range (HDR) technology	High Dynamic Range 10 (HDR10)
High Dynamic Range (HDR) supported	Yes
Data transfer rate	18 Gbit/s
Power
USB powered	Yes
Power consumption (max)	5 W
Weight & dimensions
Width	48 mm
Depth	58 mm
Height	12 mm
Packaging data
Quantity per pack	1 pc(s)
Packaging content
Cables included	HDMI, Micro-USB
Operational conditions
Operating temperature (T-T)	-15 - 55 °C
Video
Maximum resolution	3840 x 2160 pixels
HDCP	Yes
3D	Yes
Colour
Product colour	Black
Indication
LED indicators	Yes
Technical details
Dolby technologies	DTS-HD, Dolby Digital Plus, Dolby TrueHD
Video out	2x HDMI
Plug and Play	Yes
HDMI version	2.0b
Logistics data
Quantity per pack	1 pc(s)
