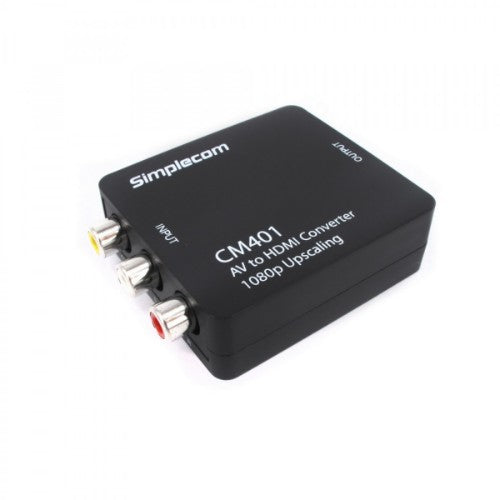

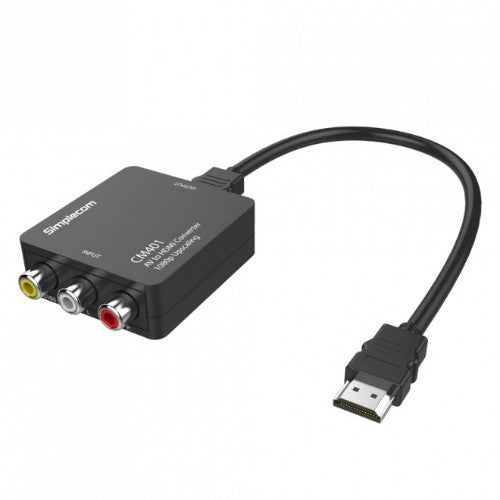

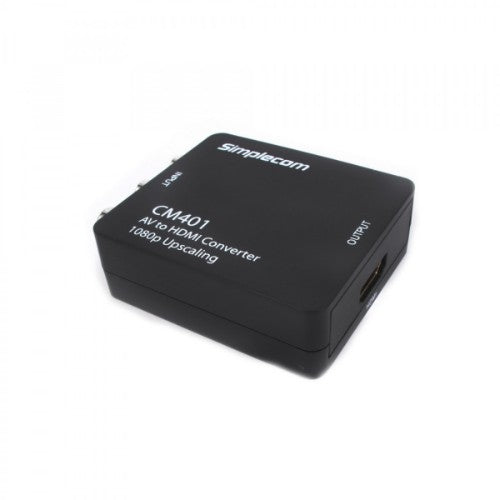

Simplecom CM401 video signal converter Active video converter 1920 x 1080 pixels

$33.33 AUD
$33.33 AUD
Sale Sold out

Use the contact form below to check availability.

Composite AV CVBS 3RCA to HDMI Video Converter 1080p Upscaling, Black

Key Features

  • Converts and up-scales analog composite input to HDMI output
  • Both video and audio are integrated into the HDMI output
  • Advanced signal processing with great precision, colours, resolutions, and details
  • No need to install drivers, portable, flexible, plug and play
  • Supports NTSC and PAL Video Standards
  • Supports HDMI 720p or 1080p (60Hz), switch selectable
  • Powered by USB, plug into either a USB wall adapter or a nearby USB port on TV

Description

Simplecom CM401 Composite AV to HDMI converter, is a universal converter for analog composite input to HDMI 720p or 1080p (60Hz) output. If you want to use your VCR, camcorder, or game system on your HDTV or HDMI monitor, simply plug standard composite AV cables (yellow, red, and white) into the input port of the converter, and then connect an HDMI cable from the converter to your TV. It works great with either 720p or 1080p TVs, and the output mode is easily selectable with a switch on the device. This converter's advanced processing allowing you to get the clearest picture quality possible with optimal colour and detail reproduction. Both video and audio are integrated into the HDMI output, providing an all-digital signal to maximize the fidelity of the audio and video.

Specifications

Other features
Converter type Active video converter
Plug and Play Yes
Product colour Black
Features
Converter type Active video converter
Plug and Play Yes
Product colour Black
Internal No
Video
Maximum video resolution 1920 x 1080 pixels
Supported video modes 720p, 1080p
Analog signal format system NTSC, NTSC 3.58, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Maximum refresh rate 60 Hz
Ports & interfaces
Output interface Composite
Host interface HDMI
DC-in jack Yes
Power
Power consumption (typical) 5 W
Input current 1 A
USB powered Yes
External power adapter Yes
Weight & dimensions
Width 55 mm
Depth 66 mm
Height 20 mm
Weight 40 g
Packaging data
Cables included HDMI, USB
