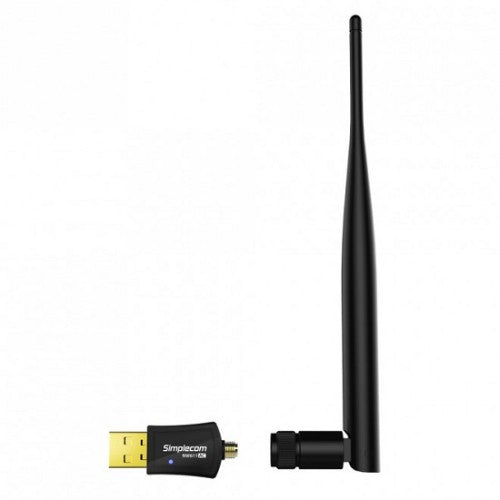

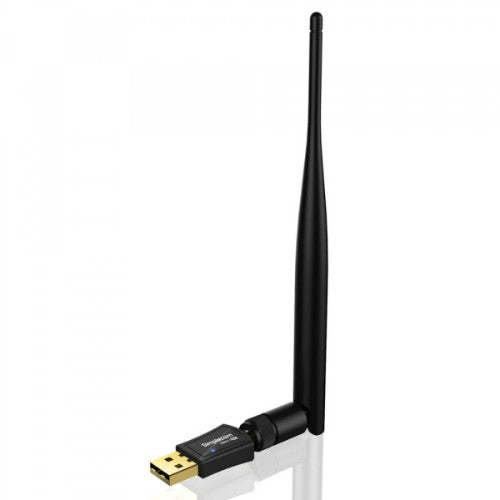

Simplecom NW611 network card WLAN 583 Mbit/s

AC600 WiFi Dual Band USB Adapter with 5dBi High Gain Antenna

Key Features

• Upgrades PC or Mac to the latest 802.11ac Wi-Fi technology with 5GHz support
• Dual Band connections, supports up to 433Mbps on 5GHz network and 150Mbps on 2.4GHz
• 5dBi high gain antenna provide high performance and long distance connection for your wireless network
• Ideal for online gaming and HD video streaming
• USB 2.0 Interface, easy to install and configure with the setup CD and Utility
• Supports Windows 7/8/8.1/10/11 (32/64-bit), Mac OSX 10.4-10.11, Linux

Description

Simplecom NW611 Dual Band Wireless USB Adapter connects a Windows or Mac computer to next generation 802.11ac wireless. AC600 802.11ac wireless provides connectivity for the 2.4GHz band at speeds of 150Mbps or 5GHz band at speeds of 433Mbps. 5dBi adjustable High Gain antennas provide high performance and long distance connections for your wireless network, offering a better performance on online gaming, HD video streaming, and VoIP phone. It ensures a strong and stable wireless connection and allows you to enjoy the wireless freedom around your home.

Specifications

Ports & interfaces
Internal	No
USB version	2.0
Connectivity technology	Wireless
Host interface	USB
Interface	WLAN
USB connector form factor	Straight
Bandwidth
Maximum data transfer rate	583 Mbit/s
Wireless LAN features
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Wi-Fi	Yes
WLAN data transfer rates supported	150,433 Mbit/s
Antenna
Antenna	Yes
Network
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Maximum data transfer rate	583 Mbit/s
Wi-Fi	Yes
Networking standards	IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x
WLAN data transfer rates supported	150,433 Mbit/s
Security algorithms	64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPA2
Design
Internal	No
Product colour	Black
Antenna	Yes
Component for	PC/notebook
Antenna design	External
Antenna gain level (max)	5 dBi
System requirements
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Performance
Security algorithms	64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPA2
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
