Simplecom SD312 USB 3.2 Gen 1 (3.1 Gen 1) Type-B Black

Dual Bay USB 3.0 Docking Station for 2.5" and 3.5" SATA Drive

Key Features

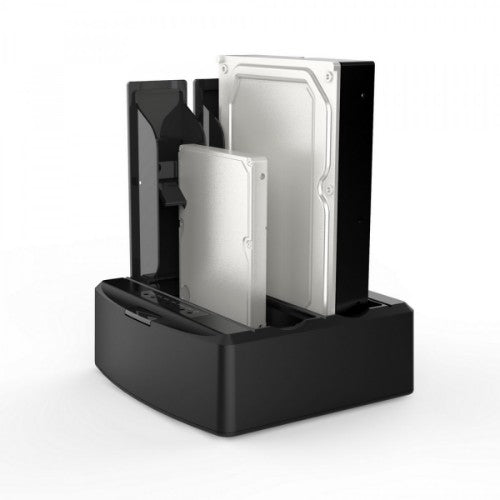

• Designed for direct insertion of two 2.5 inch or 3.5 inch SATA HDD/SSD
• USB 3.0 SuperSpeed Interface, transfer rates up to 5Gbps
• Backwards-Compatible with USB 2.0, transfer rates up to 480Mbps
• Low profile design with SATA drive bay lid, which is also the HDD holder when opened
• LED light indicates Power and Activity status
• Hot-swappable, plug and play, no drivers needed
• Support UASP (USB Attached SCSI Protocol)
• Support offline clone, easy installation, computer-independent duplicating/cloning without computer support, high efficiency
• Dimensions: 133mm x 125mm x 50mm
• Compatible with Windows XP and above (32/64-bit), Mac OS 10.4 and above

Description

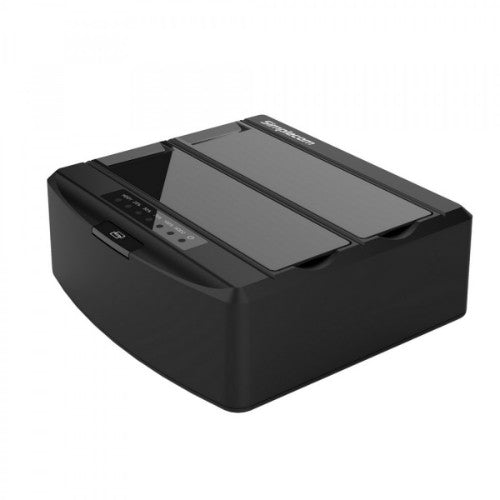

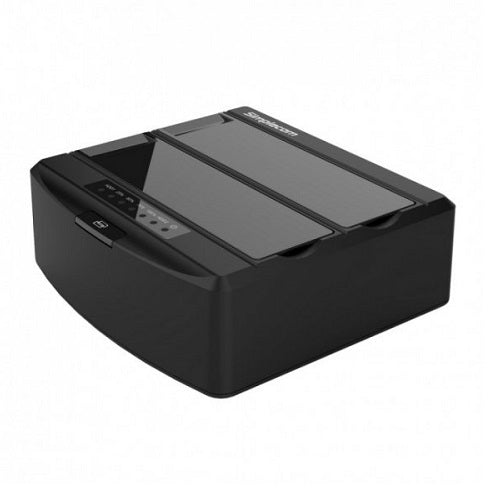

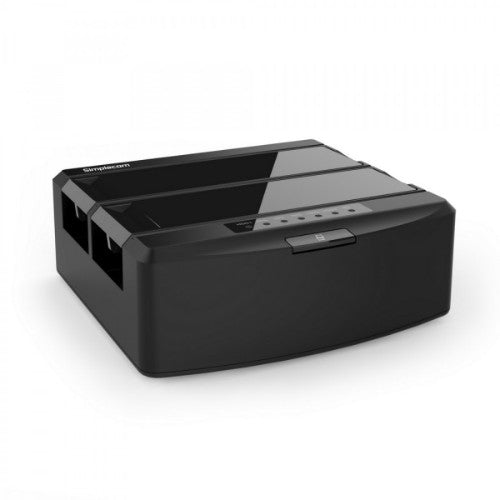

The Simplecom SD312 is a low profile SATA Docking Station, which supports direct insertion of two 2.5" or 3.5" SATA drives. It provides a simple, fast, and cost effective solution for data recovery, drive imaging, and testing centers, or any environment that requires fast access to uninstalled/archived SATA drives. With USB 3.0 interface, you can take advantage of super speed data transfer rate up to 5Gbps. Connecting to your computer through an available USB 3.0 port on desktop or laptop, ready for Plug and Play/Hot Swap and no additional driver is needed. With offline cloning technology, SD312 can copy your files from one disk to another without a computer connected.

Specifications

Hard drive
Storage media type	HDD, SSD
Storage drive interface	Serial ATA
Storage drive sizes supported	2.5,3.5"
Number of storage drives supported	2
Ports & interfaces
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-B
DC-in jack	Yes
Technical details
UASP support	Yes
Maximum data transfer rate	5 Gbit/s
Product colour	Black
Material	Acrylonitrile butadiene styrene (ABS)
Plug and Play	Yes
Hot-swap	Yes
On/off switch	Yes
Features
UASP support	Yes
Maximum data transfer rate	5 Gbit/s
LED indicators	Activity, Power
Product colour	Black
Material	Acrylonitrile butadiene styrene (ABS)
Plug and Play	Yes
Hot-swap	Yes
On/off switch	Yes
Weight & dimensions
Width	133 mm
Depth	125 mm
Height	50 mm
Indication
LED indicators	Activity, Power
Software
Mac compatibility	Yes
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Ethernet LAN features
LED indicators	Activity, Power
Packaging content
AC adapter included	Yes
Cables included	USB
Manual	Yes
