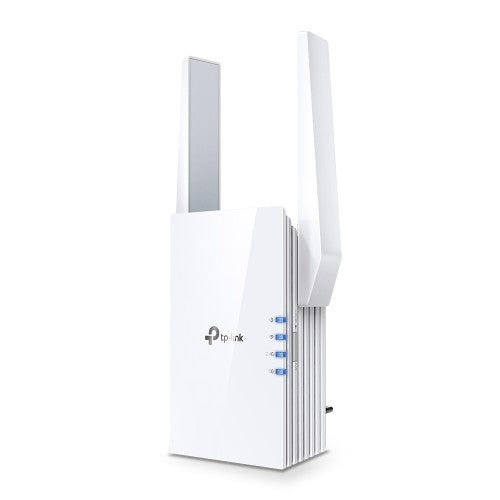

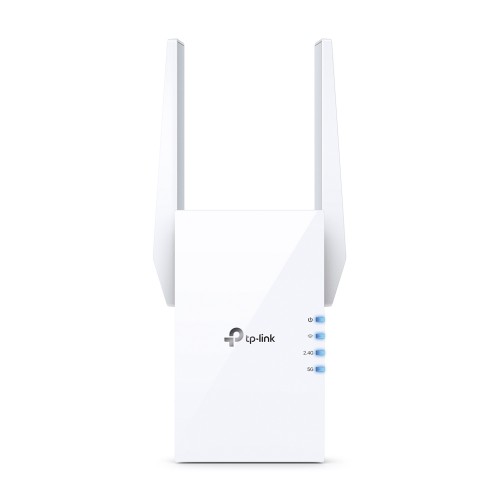

TP-Link AX1800 Wi-Fi Range Extender

Wi-Fi 6, 2.4-5 GHz, 574-1201 Mbps, 20-30 dBm, WPS, Reset, Ethernet, 100-240V, 50/60Hz, 74 × 46 × 124.8 mm

Key Features

• RE605X comes equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity, and reduced network congestion
• Creates a Mesh network by connecting to a OneMesh router for seamless whole-home coverage

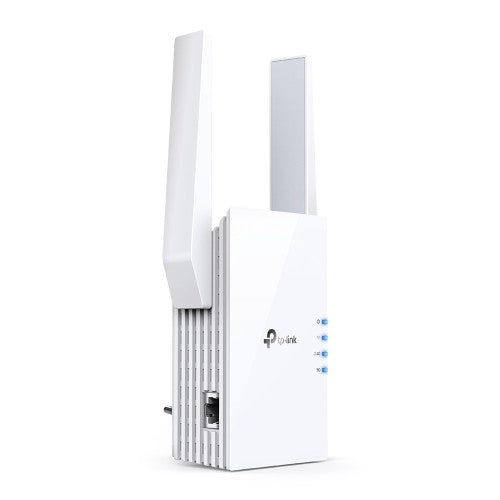

• Gigabit Ethernet Port – Provide faster-wired connections to smart TVs, computers and gaming consoles
• Intelligent Signal Light – Helps to determine the best location for optimal Wi-Fi coverage by indicating the signal strength in the current placement
• AP Mode – create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability
• TP-LINK Tether App – Easily access and manage your network using any iOS or Android mobile device
• Ultimate Compatibility – Extend the range of any Wi-Fi router or wireless access point

Description

Expand Your Ultimate WiFi Experience
AX1800 WiFi 6 Range Extender

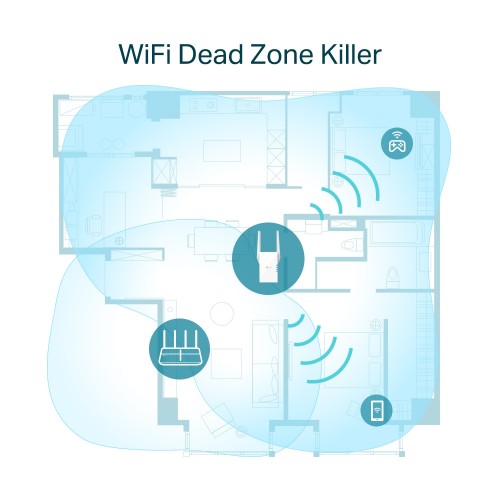

Get More Range with Your Existing Router
A single router has limited WiFi coverage and always causes WiFi dead zones. RE605X wirelessly connects to your existing router and boosts more WiFi signals throughout your home, allowing you to enjoy smooth WiFi 6 network experiences everywhere with great speed, capacity, and coverage.

WiFi 6: More Connections with Better Performance
The latest Wi-Fi 6 technology is built for today’s devices, eliminating lag, endless loading, and dead spots. It fully satisfies your network needs especially for bandwidth-intensive tasks like cloud gaming or 4K UHD video.

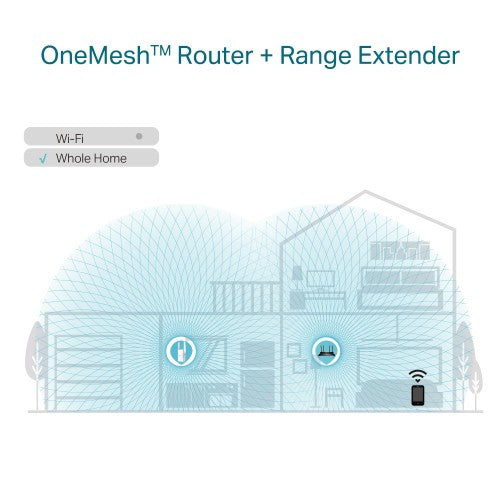

TP-Link OneMesh:
Optimize for Smoothest WiFi Experience
OneMesh™ is a simple way to form a Mesh network with a single WiFi name for seamless whole home coverage. Just connect a OneMesh™ range extender to a OneMesh™ router. No more searching around for a stable connection.

Enjoy an AX Mesh Network with Your Existing Router
Want a Mesh network? Hesitating whether you should replace your current router with a new Mesh set?

Built-In Access Point Mode
RE605X is more than a wireless range extender. Simply plug an Ethernet cable into its Ethernet port, and easily turn your wired internet connection into a 2×2 MU-MIMO dual band wireless access point.

Control at Your Fingertips
Set up and manage your Wi-Fi through the TP-Link Tether app from your smartphone (Android, iOS), including TP-Link routers and range extenders.

Specifications

Performance
Ethernet LAN data rates	10,100,1000 Mbit/s
Type	Network repeater
Data transfer rate	1201 Mbit/s
Windows operating systems supported	Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Browser supported	Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0
WPS push button	Yes
Antenna
Antenna type	External
Antennas quantity	2
Transmitting power (CE)	2.4 GHz ≤15dBm, 5 GHz ≤21dBm
Network
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Wi-Fi data rate (max)	1200 Mbit/s
Security algorithms	64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Design
Country of origin	China
Reset button	Yes
LED indicators	Yes
Product colour	White
Quantity per pack	1 pc(s)
Power
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	10 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	74 mm
Depth	46 mm
Height	124.8 mm
Packaging content
Quick start guide	Yes
Packaging data
Package type	Box
Package width	202 mm
Package depth	125 mm
Package height	97 mm
Package weight	420 g
Technical details
Reset button	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Type	Network repeater
Data transfer rate	1201 Mbit/s
LED indicators	Yes
Antennas quantity	2
WPS push button	Yes
Commodity Classification Automated Tracking System (CCATS)	85183095
Harmonized System (HS) code	85176990
Compliance certificates	CE, RoHS
Colour
Product colour	White
System requirements
Windows operating systems supported	Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Browser supported	Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0
Certificates
Compliance certificates	CE, RoHS
Logistics data
Harmonized System (HS) code	85176990
Other features
Commodity Classification Automated Tracking System (CCATS)	85183095
