ATEN USB-C to VGA Adapter

$30.67 AUD
$30.67 AUD
Sale Sold out

Use the contact form below to check availability.

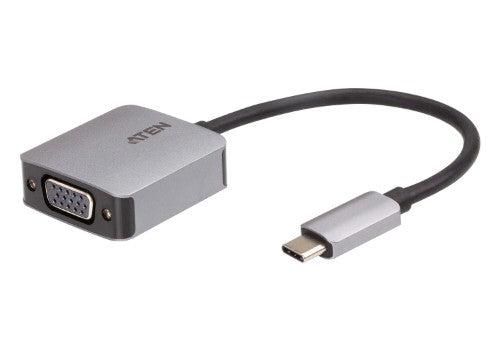

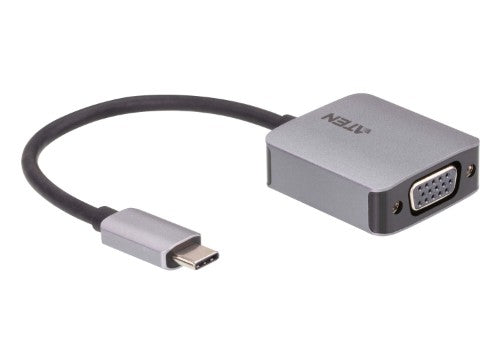

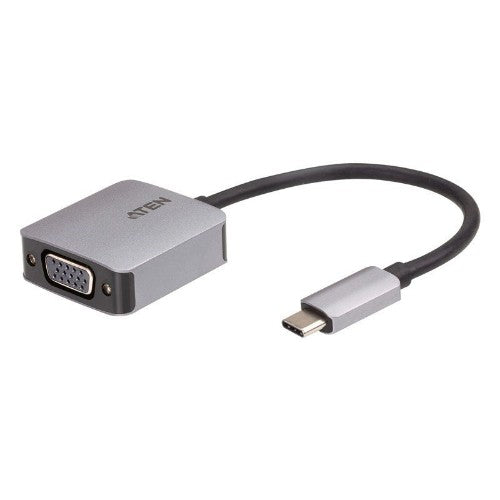

USB-C to VGA Adapter

Key Features

  • Transfer high-quality videos from a USB-C enabled laptop or smarphone to a 1920 x 1200@60Hz VGA display, or projector*
  • Premium casing can resists signal interference during video transmission and heat insulation

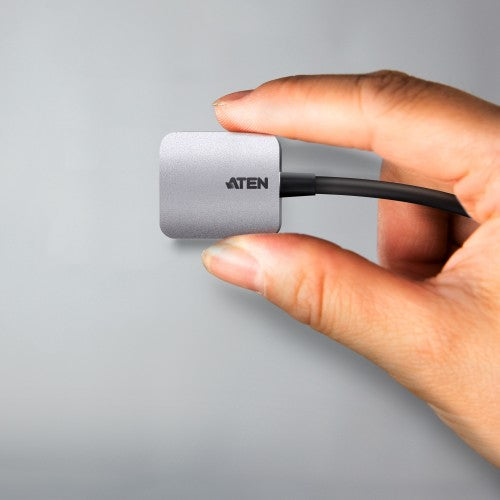

  • Compact and lightweight design
  • Works with all major operating systems: Windows®, OS X®, iPad Pro 3rd gen and Android

Description

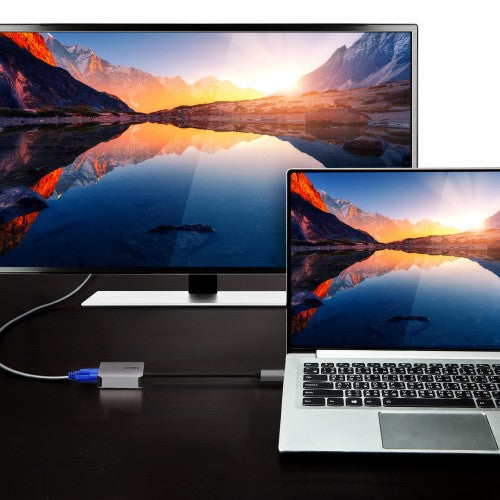

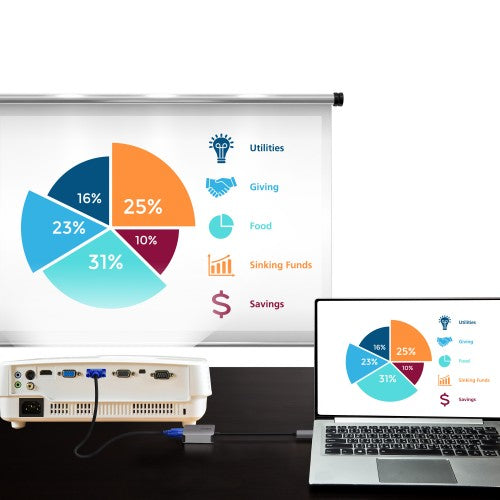

The UC3002A is a USB-C to VGA adapter that allows you to transfer the video of your USB-C equipped laptop, tablet, computer or smartphone to a VGA display or projector. The UC3002A supports high video resolutions up to 1920 x 1200 @ 60 Hz so that you can conveniently scale your display output to a bigger monitor or do presentations from a projector.
1x UC3002A USB-C to VGA Adapter

Specifications

Features
Connector 1 USB Type-C
Connector 2 VGA (D-Sub)
Windows operating systems supported Yes
Mac operating systems supported Yes
Connector 1 gender Male
Connector 2 gender Female
Product colour Black, Silver
Bandwidth 148.5 MHz
Maximum resolution 1920 x 1200 pixels
HDCP Yes
Connector 1 form factor Straight
Connector 2 form factor Straight
Other operating systems supported Android, iOS
Maximum refresh rate 60 Hz
HDCP version 1.3
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 80%
Other features
Width 14 mm
Height 96 mm
Depth 39.5 mm
Weight & dimensions
Weight 29 g
Package width 35 mm
Package depth 125 mm
Package height 180 mm
Package weight 88 g
Width 14 mm
Height 96 mm
Depth 39.5 mm
Packaging data
Package width 35 mm
Package depth 125 mm
Package height 180 mm
Package weight 88 g
Quantity per pack 1 pc(s)
Technical details
Harmonized System (HS) code 84733080
Packaging content
Quantity per pack 1 pc(s)
Logistics data
Master (outer) case width 200 mm
Master (outer) case length 370 mm
Master (outer) case height 270 mm
Master (outer) case gross weight 2.49 kg
Products per master (outer) case 20 pc(s)
Master (outer) case net weight 580 g
Harmonized System (HS) code 84733080
