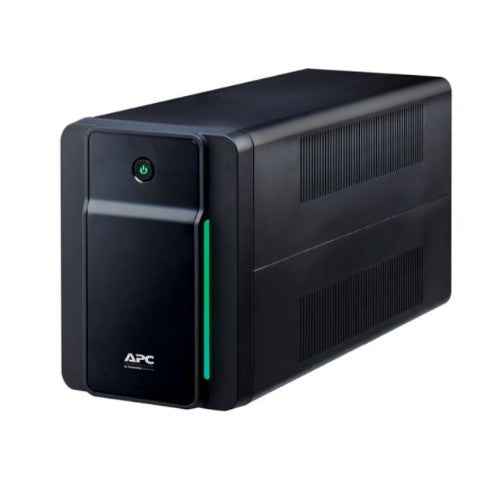

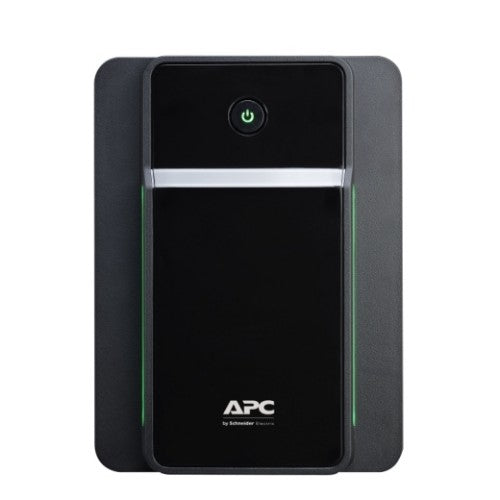

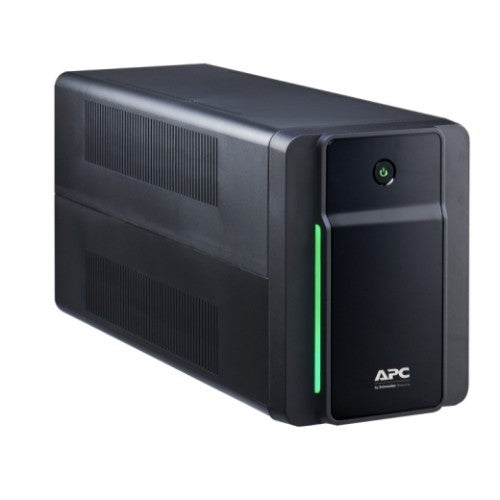

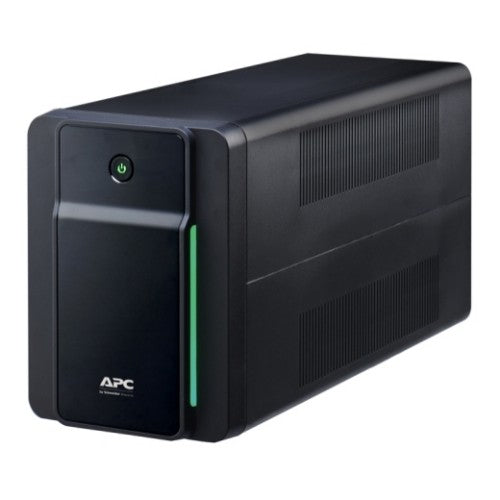

APC BX1200MI-AZ uninterruptible power supply (UPS) Line-Interactive 1.2 kVA 650 W

Back-UPS 1200VA, 230V, AVR, Australian Sockets

Key Features

• Battery Backup & Surge Protector for Electronics and Computers
• Includes: User manual

Description

Back-UPS Features & Benefits
Manageability
Audible alarms
Provides notification of changing utility power and UPS power conditions
LED status display
Quickly understand unit and power status with visual indicators.
Availability
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Protection
Surge only outlets
Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage.
Battery and surge protected outlets
Back up and protect your hardware and data during power outages, surges and spikes .
Marketing features
Battery-protected and surge-only outlets
Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment
Safety
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Specifications

Power
Output frequency	50/60 Hz
Output power capacity	1.2 kVA
Output power	650 W
Input operation voltage (min)	140 V
Input operation voltage (max)	300 V
Output operation voltage (min)	230 V
Surge energy rating	273 J
Input power factor	0.54
Input frequency	50/60 Hz
Performance
Audible alarm modes	Alarm when on battery
UPS topology	Line-Interactive
Response time	6 ms
Surge protection	Yes
Waveform	Sine
Noise level	40 dB
LED indicators	Yes
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
Audible alarm modes	Alarm when on battery
UPS topology	Line-Interactive
Output power capacity	1.2 kVA
Response time	6 ms
Output power	650 W
Input operation voltage (min)	140 V
Input operation voltage (max)	300 V
Output operation voltage (min)	230 V
Surge energy rating	273 J
Surge protection	Yes
Waveform	Sine
Input power factor	0.54
Noise level	40 dB
Audible alarm(s)	Yes
Input frequency	50/60 Hz

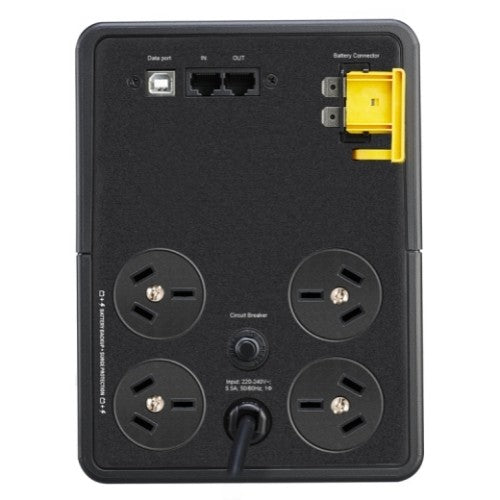

Ports & interfaces
AC outlet types	C14 coupler
Ethernet LAN (RJ-45) ports	2
Battery
Battery life (max)	5 year(s)
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	8 h
Battery capacity	108 Ah
Design
Form factor	Compact
Product colour	Black
International Protection (IP) code	IP20
Certification	CB , CE, EN/IEC 62040-1, EN/IEC 62040-2, RCM
LED indicators	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 40 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 3000 m
Technical details
Output frequency	50/60 Hz
Weight & dimensions
Width	140 mm
Depth	390 mm
Height	190 mm
Weight	7.6 kg
Battery width	23.5 cm
Battery depth	49.5 cm
Battery height	29.7 cm
Battery weight	8.6 kg
Packaging data
Manual	Yes
Certificates
Certification	CB , CE, EN/IEC 62040-1, EN/IEC 62040-2, RCM
Packaging content
Manual	Yes
