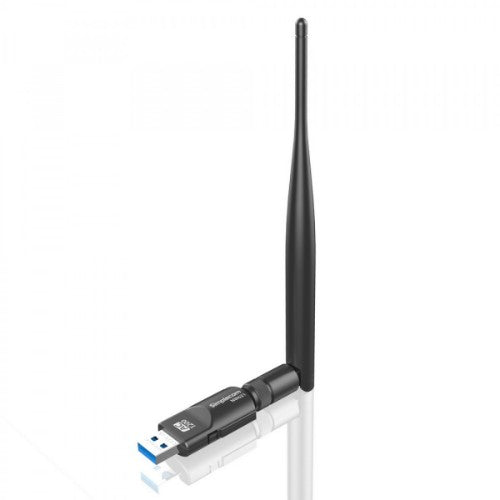

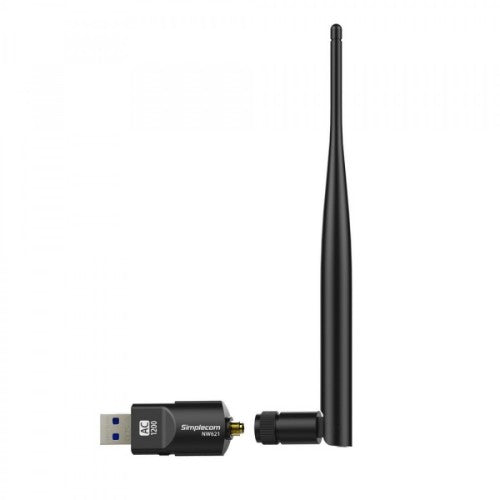

Simplecom NW621 network card WLAN 1267 Mbit/s

AC1200 WiFi Dual Band USB Adapter with 5dBi High Gain Antenna

Key Features

• Upgrades PC or Mac to the latest 802.11ac Wi-Fi technology with 5GHz support
• Dual Band connections, supports up to 867Mbps on 5GHz network and 300Mbps on 2.4GHz
• 5dBi high gain antenna provide high performance and long distance connection for your wireless network
• Ideal for online gaming and HD video streaming
• USB 3.0 Interface, backward compatible with USB 2.0
• Easy to install and configure with the setup CD and Utility
• Supports Windows XP/Vista/7/8/8.1/10 (32/64-bit), Mac OSX 10.4-10.11, Linux

Description

Simplecom NW621 Dual Band Wireless USB3.0 Adapter connects a Windows or Mac computer to next generation 802.11ac wireless. AC1200 802.11ac standard with faster USB 3.0 interface provides connectivity for the 2.4GHz band at speeds of 300Mbps or 5GHz band at speeds of 867Mbps, also backward compatible with USB 2.0 and 802.11a/b/g/n networks. NW621 features 5dBi adjustable High Gain antenna with 2T2R (2 transmitter, 2 receiver) configuration, that provide high performance and long distance connections for your wireless network, offering a better performance on online gaming, HD video streaming, and internet TV. Built-in WPS button for secure, for one-touch device registration. It ensures a strong and stable wireless connection and allows you to enjoy the wireless freedom around your home.

Specifications

Ports & interfaces
Internal	No
USB version	3.2 Gen 1 (3.1 Gen 1)
Connectivity technology	Wireless
Host interface	USB
Interface	WLAN
USB connector form factor	Straight
Bandwidth
Maximum data transfer rate	1267 Mbit/s
Wireless LAN features
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Wi-Fi	Yes
WLAN data transfer rates supported	300,867 Mbit/s
Antenna
Antenna	Yes
Antenna type	2x2
Network
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Maximum data transfer rate	1267 Mbit/s
Wi-Fi	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x
WLAN data transfer rates supported	300,867 Mbit/s
Security algorithms	64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPA2
Design
Internal	No
Product colour	Black
Antenna	Yes
Antenna type	2x2
Component for	PC/notebook
Antenna design	External
Antenna gain level (max)	5 dBi
Power
USB powered	Yes
System requirements
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Performance
Security algorithms	64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPA2
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Other features
Antenna type	2x2
