Simplecom CM323 video splitter HDMI 3x HDMI

HDMI, HDR, HDCP, 18Gpbs, Ultra HD 4K

Key Features

• Connect 3 HD/UHD sources to 1 HDMI port on your TV/Monitor
• Widely compatible HDMI devices with HDMI 2.0 and HDCP 2.2 support
• Supported Video Resolutions up to 4Kx2K @ 60Hz
• Support HDR and 4:4:4 RGB output
• Backward compatible with previous HDMI revisions
• Supports highest bandwidth up to 18Gpbs. Perfect for PS4 Pro, Xbox One S, Chromecast Ultra, Direct TV, Roku Premiere+, Fire TV, PCs etc
• Supports Auto Switching to active input source port*
• Plug-and-Play, Self Powered

Description

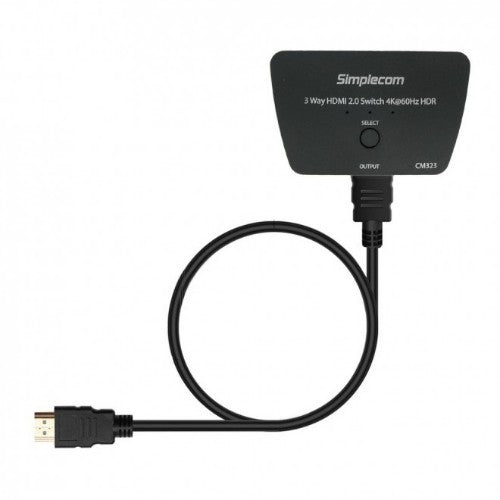

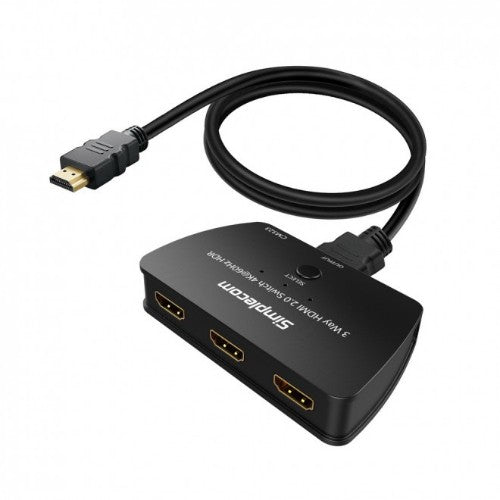

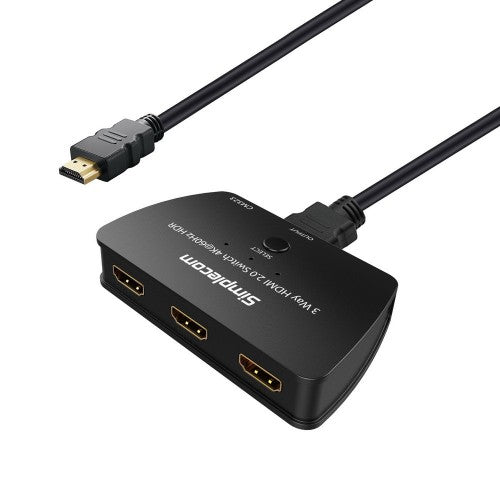

CM323 is a 3 Way HDMI 2.0 4K switch for your latest gaming or home theatre setup. It widely compatible with most HDMI devices and supports HDMI 2.0 and HDCP 2.2, ideal for latest online streaming box and game console with 4K UHD HDMI output. This HDMI 2.0 4K switch is also backward compatible with previous HDMI revisions with 1080p / 720p video resolution devices. Easy plug & play operation simply plug in the HDMI input sources into the input connections and the output connection to your TV or projector. It will automatically switch to the currently active input source if there is only one active input. If there are multiple active inputs, you can select the input by press the select button on the switch.

Specifications

Ports & interfaces
Video ports quantity	1
Video port type	HDMI
Video out	3x HDMI
HDMI version	2.0
Ethernet LAN	No
Video
Maximum refresh rate	60 Hz
Colour depth	12 bit
Maximum resolution	3840 x 2160 pixels
HDCP	Yes
3D	Yes
Bandwidth	250 MHz
Colour
Product colour	Black
Features
Maximum refresh rate	60 Hz
Dolby technologies	DTS,Dolby Digital,Dolby TrueHD
Colour depth	12 bit
Maximum resolution	3840 x 2160 pixels
HDCP	Yes
Plug and Play	Yes
Easy to install	Yes
Product colour	Black
3D	Yes
Bandwidth	250 MHz
HD type	4K Ultra HD
Number of displays supported	1
HDCP version	2.2
Packaging data
Quantity per pack	1 pc(s)
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Operating relative humidity (H-H)	10 - 85%
Technical details
Dolby technologies	DTS,Dolby Digital,Dolby TrueHD
Video out	3x HDMI
Plug and Play	Yes
HDMI version	2.0
Easy to install	Yes
Logistics data
Quantity per pack	1 pc(s)
