Simplecom CM121 audio converter Black

Coaxial or Toslink/SPDIF digital audio, RCA L/R and 3.5mm stereo audio, 5V, 500 mA, 60 x 55 x 20 mm, 78 g

Key Features

• Converts SPDIF Optical or Coaxial digital PCM audio input to analog stereo L/R outputs
• Supports uncompressed 2-channel LPCM digital audio signal output
• Supports sampling rate at 32kHZ, 44.1kHZ, 48kHZ, and 96KHz 24-bit SPDIF incoming bit stream on left and right channels
• Low power, lightweight, portable and easy to carry and install
• Powered by USB, USB power cable and USB charger included
• Converting from digital to analog only, proprietary 5.1/7.1 surround sound signals are not supported

Description

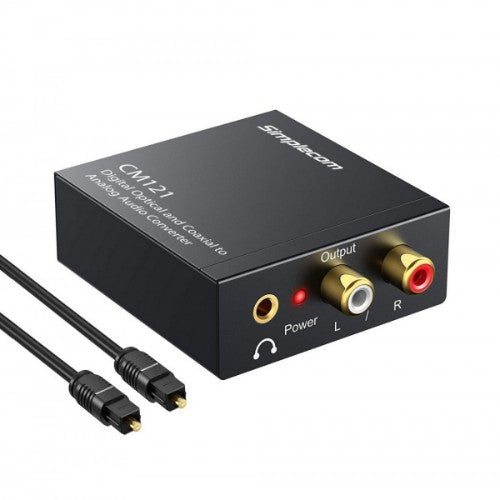

Simplecom CM121 Digital Optical Toslink and Coaxial to Analog RCA Audio Converter
This Digital to Analog Audio Converter is designed for either home or professional audio application. It converts Coaxial or Toslink digital audio signals to analog audio and available for connection to an external audio device such as speaker, amplifier via standard RCA connectors, and a stereo headphone via 3.5mm headphone jack.

Specifications

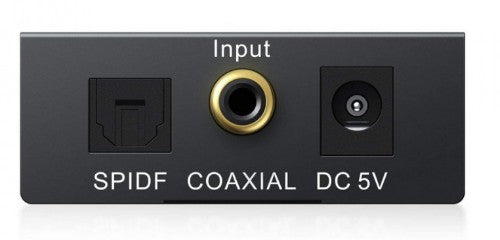

Inputs
USB 1.1 ports quantity	1
Digital audio optical in	1
Digital audio coaxial in	1
Fiber ports quantity	1
DC-in jack	Yes

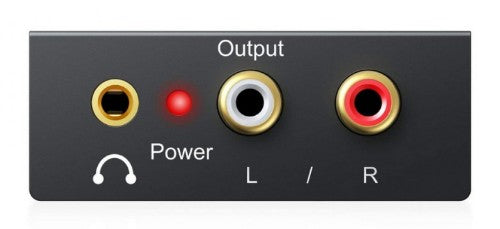

Outputs
Audio (L/R) out	1
Technical details
Product colour	Black
Audio playback formats	LPCM, PCM
Power
Power consumption	500 mA
Operating voltage	5 V
External power adapter	Yes
Input voltage	100 - 240 V
Input frequency	50 - 60 Hz
Weight & dimensions
Width	60 mm
Depth	55 mm
Height	20 mm
Weight	78 g
Packaging data
Quantity	1
Cables included	DC to USB Type-A
Manual	Yes
