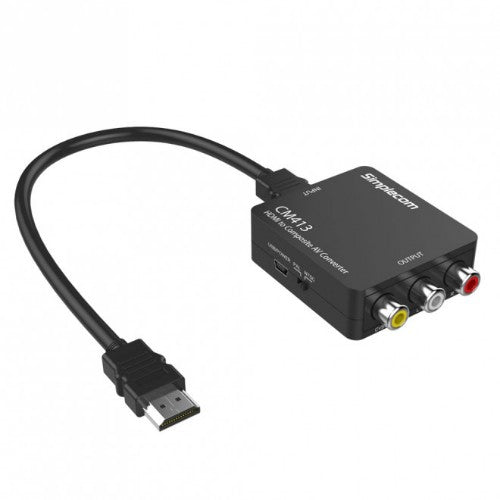

Simplecom CM413 video signal converter Active video converter 1920 x 1080 pixels

HDMI to Composite AV CVBS 3RCA Video Converter 1080p Downscaling

Key Features

• Support HDMI input from up to 1080p (Does Not support 3D)
• HDMI Input, Composite Video + Audio R/L Output (Does Not Support reverse way)
• Supports NTSC and PAL two standard TV formats with a select switch
• Hardware conversion, plug and play without any software driver
• Signals through the HDMI high-definition video processing downscale to 576i, 480i (PAL / NTSC) video signal output
• With advanced video processing chip, for better compatibility and image quality
• Self-powered by HDMI port (USB Power is a backup power source and Not Required as most HDMI port can supply sufficient power)
• HDCP Compliant, support most HDCP HDMI output, e.g. Apple TV, Foxtel, and other Internet Streaming Box

Description

Simplecom CM413 HDMI to Composite AV Video Adapter converts the high definition HDMI digital video and audio signal to analog composite video and R/L audio output. It can be used for typical HD video sources, such as Laptop, Smartphone, Blu-ray Player, HD TV box, and Digital Media Receiver, etc. to a display with CVBS input, such as traditional CRT TV, RPTV and projectors.

Specifications

Other features
Converter type	Active video converter
Plug and Play	Yes
Product colour	Black
Features
Converter type	Active video converter
Plug and Play	Yes
Product colour	Black
Internal	No
Video
HDCP	Yes
Maximum video resolution	1920 x 1080 pixels
Supported video modes	480p, 576p, 720p, 1080i, 1080p
Analog signal format system	NTSC, PAL
Maximum refresh rate	60 Hz
Ports & interfaces
Output interface	Composite
Host interface	HDMI
DC-in jack	Yes
Power
USB powered	Yes
Weight & dimensions
Width	55 mm
Depth	66 mm
Height	20 mm
Weight	40 g
Packaging data
Quantity	1
Cables included	USB
