Ubiquiti

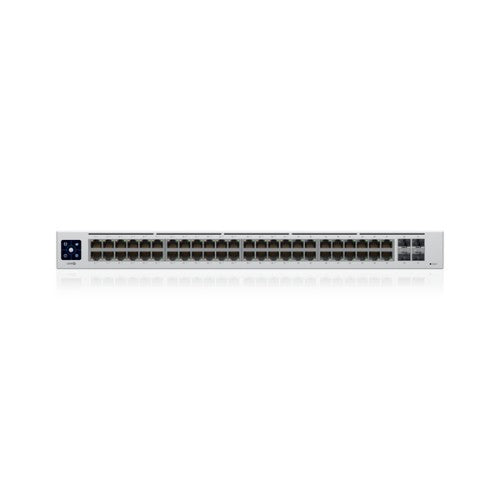

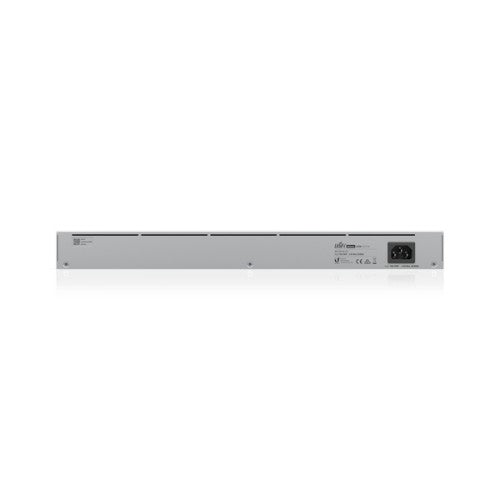

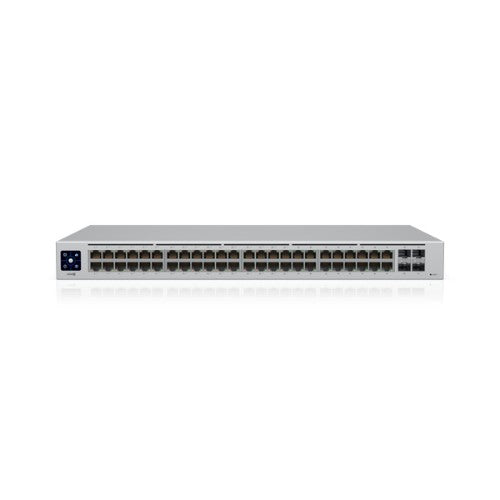

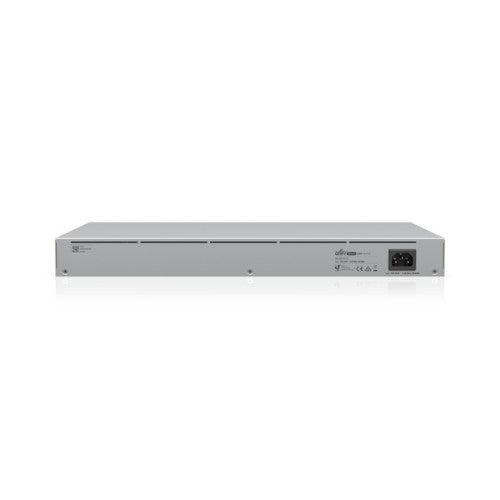

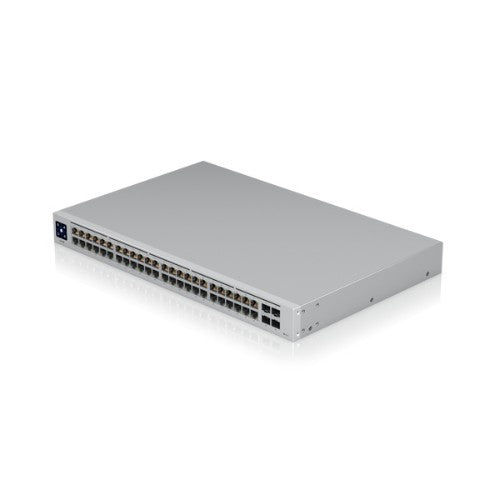

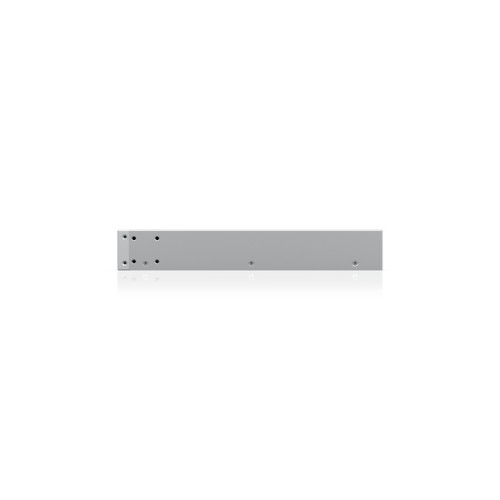

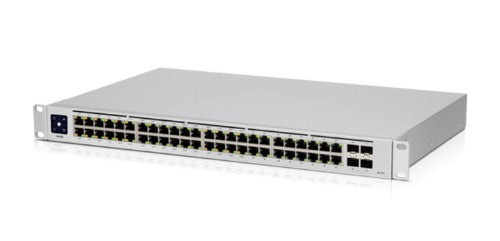

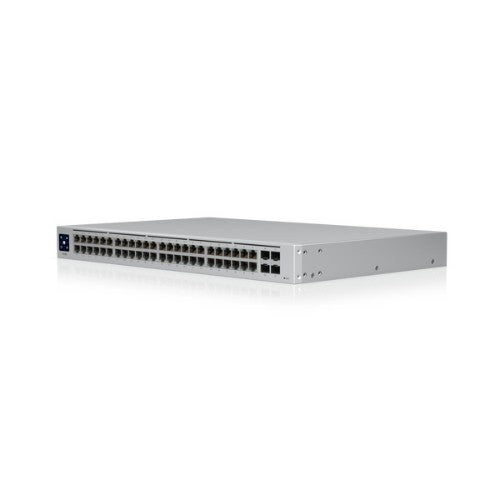

Ubiquiti UniFi USW-48-POE network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Stainless steel

$1,397.33 AUD
$1,397.33 AUD
Sale Sold out

Use the contact form below to check availability.

48 RJ-45 ports, L2, PoE+, 4x SFP ports, 104 Gbps switching capacity

Key Features

  • (32) GbE, PoE+ RJ45 ports
  • (16) GbE RJ45 ports
  • (4) 1G SFP Ports
  • 195W total PoE availability
  • 1.3" LCM color touchscreen with AR switch management

Description

A 48-port, Layer 2 PoE switch with a silent, fanless cooling system.

Specifications

Virtual LAN features
VLAN support Yes
Management features
Switch layer L2
Switch type Managed
Ports & interfaces
SFP module slots quantity 4
Basic switching RJ-45 Ethernet ports quantity 48
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Network
Networking standards IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
VLAN support Yes
Spanning tree protocol Yes
Port mirroring Yes
Link aggregation Yes
Flow control support Yes
Auto-sensing Yes
Auto MDI/MDI-X Yes
10G support No
Data transmission
Switching capacity 104 Gbit/s
Jumbo frames support Yes
Forwarding rate 77.38 Mpps
Throughput 52 Gbit/s
Security
Authentication type RADIUS
Design
Rack mounting Yes
Product colour Stainless steel
Form factor 1U
LED indicators Activity, Link, Speed
Certification CE, FCC, IC
Performance
Fanless Yes
Power
Power consumption (max) 45 W
Power supply included Yes
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Power source AC/DC
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port 32 W
Power over Ethernet (PoE) Yes
Power over Ethernet plus (PoE+) ports quantity 32
Total Power over Ethernet (PoE) budget 195 W
Operational conditions
Operating temperature (T-T) -5 - 40 °C
Operating relative humidity (H-H) 10 - 90%
Weight & dimensions
Width 442.4 mm
Depth 285 mm
Height 43.7 mm
Weight 4.52 kg
Packaging data
Manual Yes
Packaging content
Manual Yes
