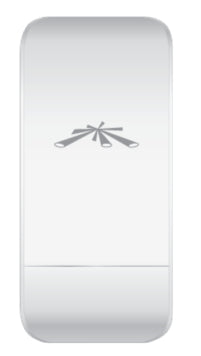

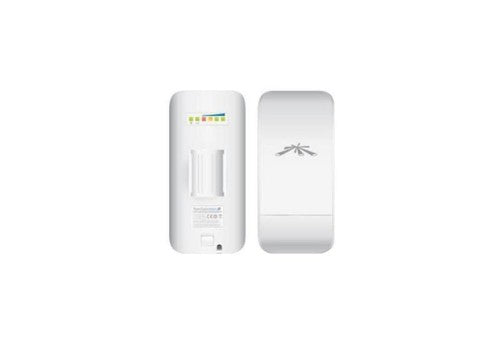

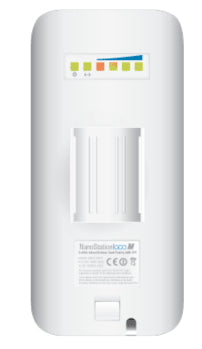

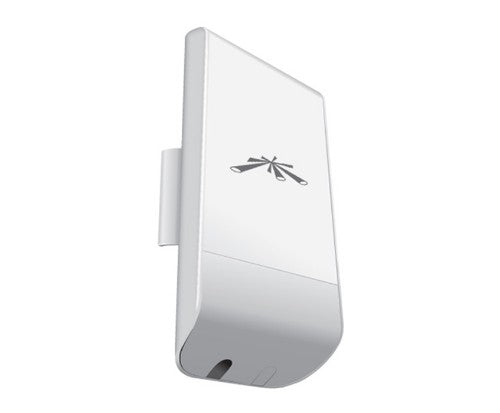

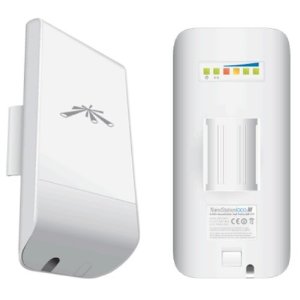

Ubiquiti Networks NanoStation M2 150 Mbit/s White Power over Ethernet (PoE)

2.4 GHz, 10/100 Ethernet RJ-45, 32 MB SDRAM, 8 MB Flash, 5+ km, PoE

Description

Compact CPE Design The NanoStationM features the CPE design that expanded the global Wireless ISP industry. Plug and Play Installation The NanoStation M requires no tools for assembly; only a single wrench is required for pole-mounting. Versatile Application Use The NanoStation M can be deployed for Point-to-Point (PtP) bridging, wireless connectivity to a video surveillance system, or use as an airMAX CPE. Dual Ethernet Connectivity With software-enabled PoE output, the secondary Ethernet port can power an external device, such as a PoE security camera, for seamless IP video integration. Advanced Software Technology Ubiquiti’s airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks. Window/Wall Mounting Kit Use the NanoStation Mount to quickly mount the NanoStationM on a window or wall. 180° vertical or horizontal adjustment allows for custom positioning.

Specifications

Performance
2.4 GHz	Yes
Maximum data transfer rate	150 Mbit/s
Ethernet LAN data rates	10,100 Mbit/s
Wi-Fi data rate (max)	150 Mbit/s
Frequency band	2.412-2.462 GHz
Networking standards	IEEE 802.3, IEEE 802.3u
Maximum outdoor range	10000 m
Certification	RoHS
Internal memory	32 MB
Flash memory	8 MB
Built-in processor	Yes
Processor model	Qualcomm Atheros
Processor frequency	400 MHz
Processor architecture	MIPS 24Kc
Features
2.4 GHz	Yes
Maximum data transfer rate	150 Mbit/s
Ethernet LAN data rates	10,100 Mbit/s
Wi-Fi data rate (max)	150 Mbit/s
Frequency band	2.412-2.462 GHz
Networking standards	IEEE 802.3, IEEE 802.3u
Maximum outdoor range	10000 m
Internal memory	32 MB
Flash memory	8 MB
Built-in processor	Yes
Processor model	Qualcomm Atheros
Processor frequency	400 MHz
Processor architecture	MIPS 24Kc
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Power
Power consumption (typical)	5.5 W
Input current	0.5 A
Power over Ethernet (PoE)	Yes
AC input voltage	24 V
Design
Housing material	Plastic
Internal	No
LED indicators	Yes
Product colour	White
Certification	RoHS
Antenna
Antenna gain level (max)	8 dBi
Technical details
Harmonized System (HS) code	85176990
Weight & dimensions
Width	80 mm
Depth	31 mm
Height	163 mm
Weight	180 g
Operational conditions
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-30 - 75 °C
Logistics data
Harmonized System (HS) code	85176990
