Ubiquiti Unifi AC Mesh 1167 Mbit/s White Power over Ethernet (PoE)

802.11AC, 1167 Mbps, Waterproof

Description

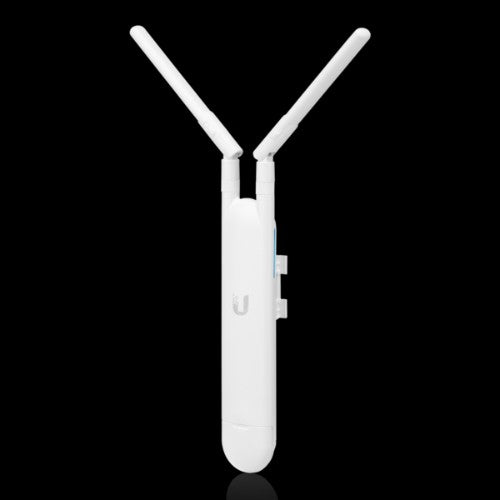

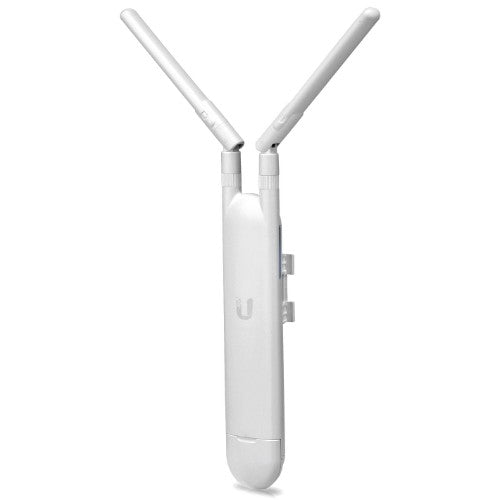

Ubiquiti AC Mesh

SKU: UAP-AC-M

Description: Compact, indoor/outdoor WiFi access point with optional external antenna support for directional coverage.

Tech Specs: Click Here
Installation Guide: Click Here

Features:
•140 m² (1,500 ft²) coverage
•250+ connected devices
•WiFi 5 (2x2 MIMO)
•Powered using PoE*

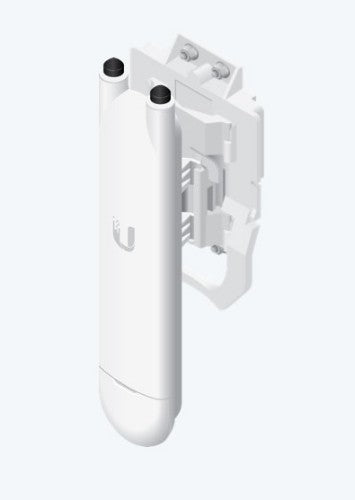

•Versatile wall or pole mounting
•(2) RP-SMA connectors for optional external antennas**

Specifications

Performance
2.4 GHz	Yes
5 GHz	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
Maximum data transfer rate	1167 Mbit/s
Number of users	250 user(s)
VLAN support	Yes
Reset button	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.3af
Certification	CE, FCC, IC
MIMO	Yes
Features
2.4 GHz	Yes
5 GHz	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
Maximum data transfer rate	1167 Mbit/s
Number of users	250 user(s)
VLAN support	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.3af
MIMO	Yes
Security
Number of SSID supported	4
Service Set Identifier (SSID) features	Hidden SSID
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Power
Power consumption (typical)	8.5 W
Power supply	24 W
Power over Ethernet (PoE)	Yes
Design
Placement	Wall
Internal	No
Reset button	Yes
Product colour	White
Certification	CE, FCC, IC
Antenna
Antennas quantity	2
Antenna gain level (max)	4 dBi
Antenna features	Detachable antenna
Technical details
Harmonized System (HS) code	85176990
Certificates
Certification	CE, FCC, IC
Weight & dimensions
Width	46 mm
Depth	34 mm
Height	353 mm
Weight	152 g
Operational conditions
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-30 - 70 °C
Logistics data
Harmonized System (HS) code	85176990
