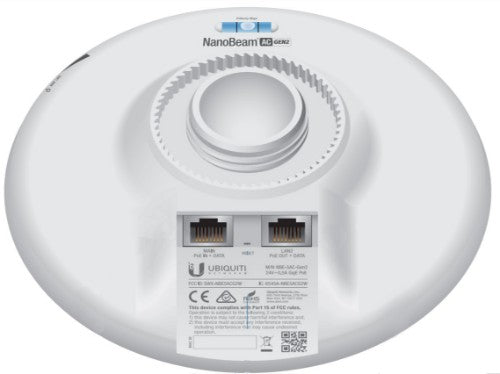

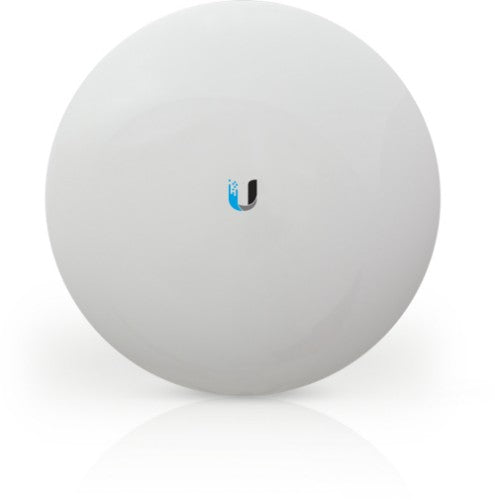

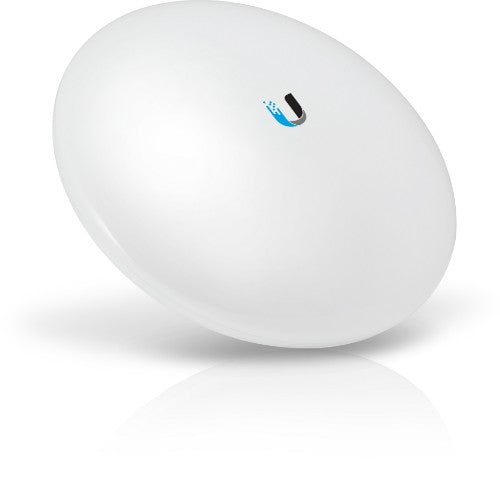

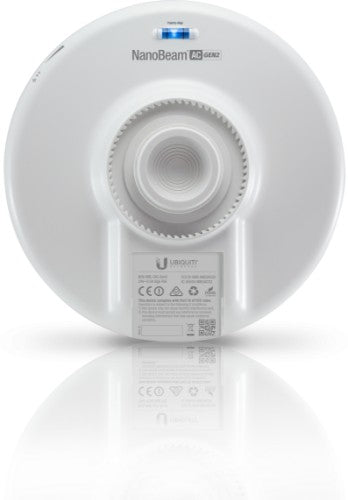

Ubiquiti NanoBeam 5AC Gen 2 Network bridge 450 Mbit/s White

5 Ghz, 450 Mbps, 19 dBi, 10/100/1000 Ethernet, 128 MB DDR2, 8 MB Flash, 1.5:1 VSWR, 189 x 189 x 125 mm

Description

Incorporating innovative industrial design with proprietary airMAX ac technology, the NanoBeam AC is ideal for CPE deployments requiring maximum performance from the smallest possible footprint.

Management Wi-Fi Radio
The NanoBeam AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

Improved Surge Protection
The NanoBeam AC features enhanced protection against ESD events.

Superior Processing
Ubiquiti's airMAX engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.

Incredible Antenna “Beam” Performance
The form factor of the NanoBeam AC features the highest gain for its size. The NanoBeam AC’s excellent beam directivity provides the best performance in high-noise environments.

Performance Breakthrough
airMAX ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.

Advanced Software Technology
Ubiquiti’s airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

Plug and Play Installation

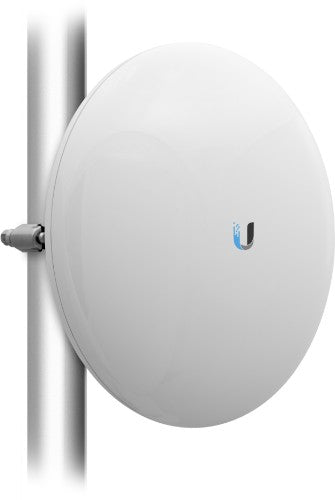

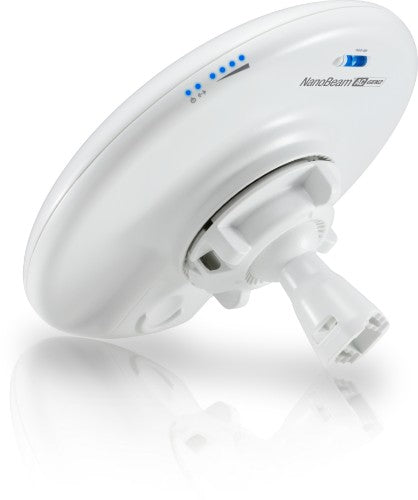

The NanoBeam AC mounts to a variety of surfaces including poles or walls, and offers the freedom of three-axis alignment. No screws are required for pole-mounting, and only a single wall screw (not included) is required for wall-mounting.

Now with airOS8
airOS®8 provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

Specifications

Data transmission
Maximum data transfer rate	450 Mbit/s
Maximum transfer distance	15000 m
Antenna
Antenna gain level (max)	19 dBi
Wireless LAN features
Frequency band	5.15 - 5.875; 5.15 - 5.25; 5.25 - 5.35; 5.47 - 5.725; 5.725 - 5.85 GHz
Modulation	16-QAM, 64-QAM, 256-QAM, BPSK, QPSK
Antenna gain level (max)	19 dBi
Wi-Fi	Yes
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Frequency band	5.15 - 5.875; 5.15 - 5.25; 5.25 - 5.35; 5.47 - 5.725; 5.725 - 5.85 GHz
Ports & interfaces
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	2
Security
Security algorithms	WPA2
Management features
Web-based management	Yes
LED indicators	LAN, Power, Signal strength
Features
Product type	Network bridge
Reset button	Yes
Processor family	Atheros
Processor model	MIPS 74Kc
RAM type	DDR2
Processor frequency	720 MHz
Surge protection	Yes
Material	Plastic
LED indicators	LAN, Power, Signal strength
Internal memory	128 MB
Product colour	White
Mounting type	Wall/Pole
Power
Power consumption (max)	8.5 W
Power source type	PoE
Power over Ethernet (PoE)	Yes
DC output voltage	24 V
DC output current	0.5 A
Operational conditions
Operating temperature (T-T)	-40 - 80 °C
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-40 - 176 °F
Certificates
Certification	CE, FCC, IC, RoHS
Compliance certificates	CE, RoHS
Technical details
Operating temperature (T-T)	-40 - 176 °F
Material	Plastic
Internal memory	128 MB
Product colour	White
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85176990
Compliance certificates	CE, RoHS
Weight & dimensions
Weight	530 g
Width	189 mm
Depth	189 mm
Height	125 mm
Processor
Processor family	Atheros
Processor model	MIPS 74Kc
Processor frequency	720 MHz
Memory
Flash memory	8 MB
RAM type	DDR2
Packaging content
Cables included	AC
PoE+ Injector(s)	Yes
Mounting bracket(s) included	Yes
Packaging data
Quantity per pack	1 pc(s)
Logistics data
Harmonized System (HS) code	85176990
