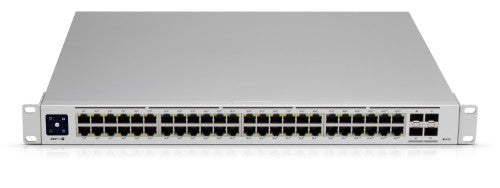

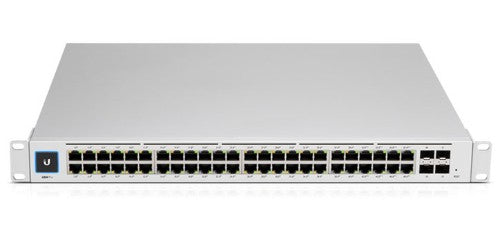

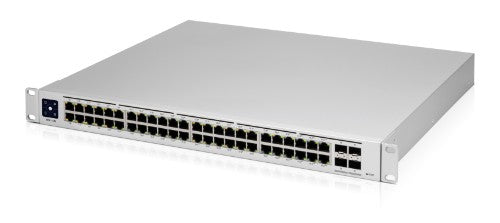

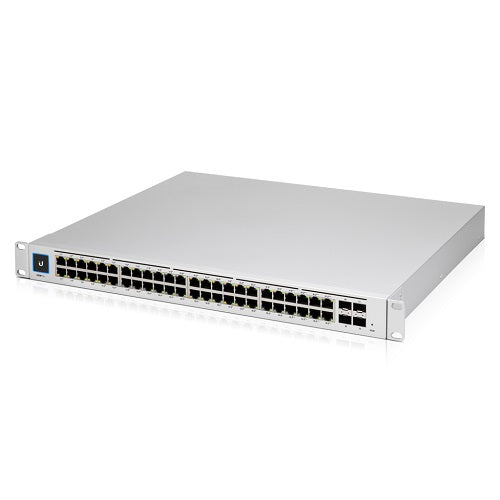

Ubiquiti UniFi Pro 48-Port PoE Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Silver

USW-Pro-48-POE Gen 2, AC/DC, Internal, 660W, (48) 10/100/1000 RJ45 Ports, (4) 1/10 Gbps SFP+, 442.4 x 399.6 x 43.7 mm

Description

Second-Generation UniFi Switching
We’ve redesigned our UniFi Switches from the ground up.

Near Silent Cooling
Our new airflow design reduces the need for fan usage.

Powerful Hardware and Software
UniFi Switches offer a variety of features, including 10G SFP+ ports, PoE+ or PoE++ support, and Layer 3* switching capabilities.

Redundant Power System
UniFi SmartPower RPS, USP-RPS, is our PSU failover system.

Power Supply Failure
In the event of a UniFi switch power supply failure, the USP-RPS automatically supplies redundant power to the failed device.

UniFi SmartPower
One UniFi SmartPower device can support up to 6 devices until the failed device is replaced.

Touchscreen Display
The 1.3" touchscreen display allows easy monitoring and quick troubleshooting.

Specifications

Management features
Switch layer	L2/L3
Switch type	Managed
Ports & interfaces
SFP+ module slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Network
Networking standards	IEEE 802.3af, IEEE 802.3at
Full duplex	Yes
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Flow control support	Yes
Auto-sensing	Yes
Auto MDI/MDI-X	Yes
10G support	Yes
Data transmission
Switching capacity	176 Gbit/s
Throughput	88000 Mpps
Jumbo frames support	Yes
Static route	Yes
Forwarding rate	130.944 Mpps
Security
Authentication type	IEEE 802.1x, RADIUS
DHCP features	DHCP server
Design
Rack mounting	Yes
Product colour	Silver
Form factor	1U
LED indicators	Activity, Link, PoE, Speed, System
Certification	CE, FCC, IC
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Number of power supply units	1
Input current	11.54 A
DC input voltage	44 - 57 V
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	64 W
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	40
Total Power over Ethernet (PoE) budget	600 W
Operational conditions
Operating temperature (T-T)	-5 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Virtual LAN features
VLAN support	Yes
Weight & dimensions
Width	442.4 mm
Depth	399.6 mm
Height	43.7 mm
Weight	6.25 kg
Performance
Harmonized System (HS) code	85176990
Technical details
Harmonized System (HS) code	85176990
Certificates
Certification	CE, FCC, IC
Logistics data
Harmonized System (HS) code	85176990
