MBeat activiva ErgoLife 81.3 cm (32") Clamp Black

13"-32", Max 8 kg weight capacity per screen, Tilt/Swivel/Screen Rotation

Key Features

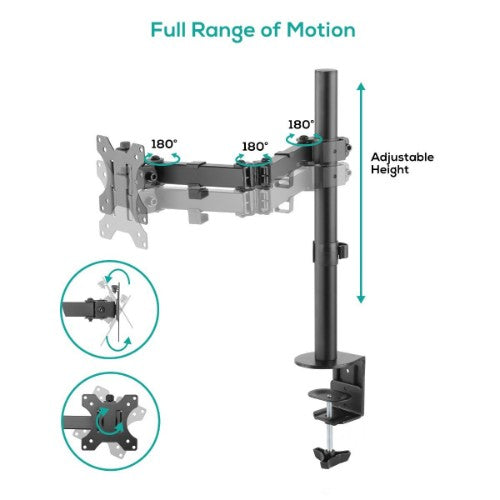

• Single Screen Ergonomical Double Joint Articulating Steel Monitor Arms
• Detachable VESA plate design enables easy installation

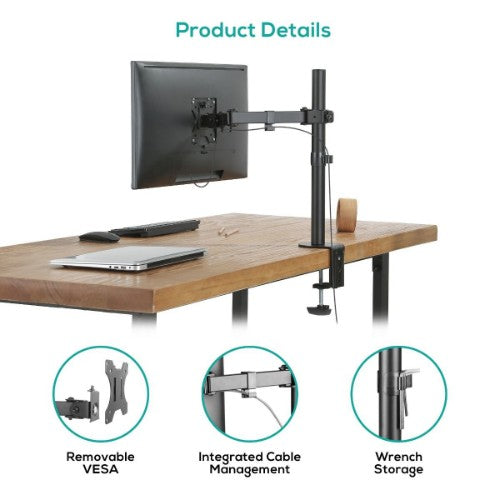

• Cable management elegantly hides any cables that are attached to displays
• 360° Rotary VESA plate for more viewing angles and options

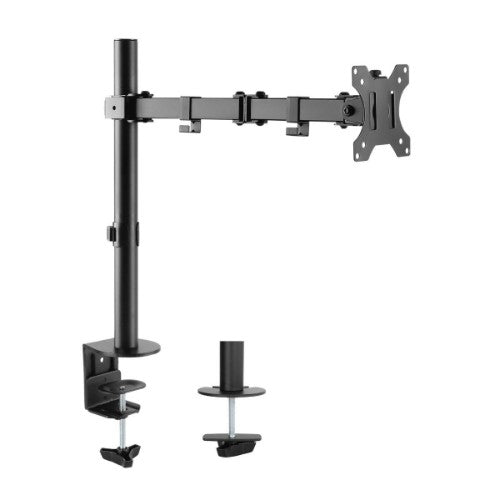

• Two mounting options both desk clamp and grommet are included
• Freely adjusting height for an optimal ergonomic position

Description

mbeat® activiva ErgoLife Single Monitor Screen Double Joint Monitor Arm

Features

• Single Screen Economical Double Joint Articulating Steel Monitor Arm.

• Detachable VESA Plate Design: enables easy installation.

• Cable Management: elegantly hides any cables that are attached to
displays.

• 360° Rotary VESA Plate: for more viewing angles and options.

• Two Mounting Options: both desk clamp and grommet are included.

• Freely Adjusting Height: for an optimal ergonomic position'

Fit Screen Screen:
13''- 32''
Weight Capacity per Screen:
1.5kg- 8kg

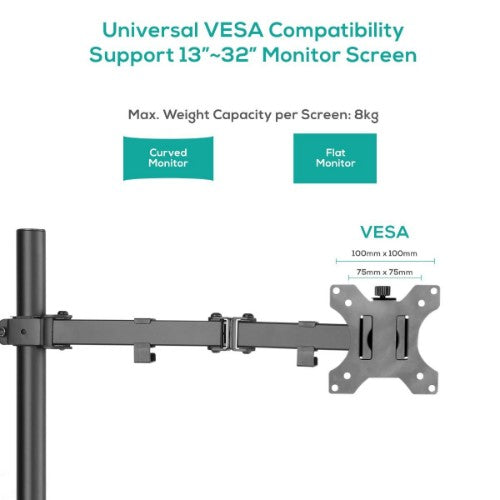

VESA Compatible:
75 x 75, 100 x l00

Tilt Range:
+45''~-45’’

Swivel Range: :
+90''~-90''

Screen Rotation:
+180''~-180''

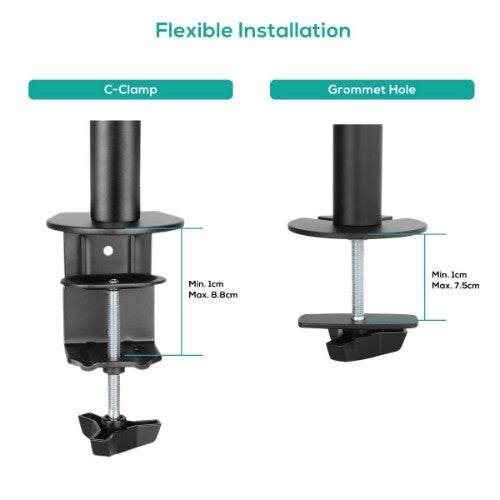

Suggested Desktop
Clamp:10~88mm,

Thickness:
Grommet:10~ 75mm

Carton Size:
44.8cm x 22.5cm x 13.5cm

Gross Weight:
3.8kg

Net Weight
3kg'

Specifications

Mounting
Maximum weight capacity (per display)	8 kg
Minimum screen size	33 cm (13")
Maximum screen size	81.3 cm (32")
Number of displays supported	1
Mounting type	Desk
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Mounting	Clamp
Clamp mount desk thickness (max)	8.8 cm
Grommet mount desk thickness (max)	7.5 cm
Ergonomics
Cable management	Yes
Height adjustment	Yes
Swivel angle range	-90 - 90°
Tilt angle range	-45 - 45°
Angle of rotation	180°
Height adjustment type	Manual
Design
Product colour	Black
Technical details
Cable management	Yes
Weight & dimensions
Weight	3 kg
Package weight	3.8 kg
Packaging content
Clamp included	Yes
Packaging data
Clamp included	Yes
Quantity per pack	1 pc(s)
Other features
Mounting type	Desk
Mounting	Clamp
