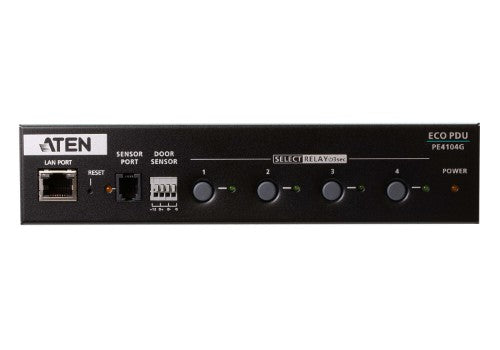

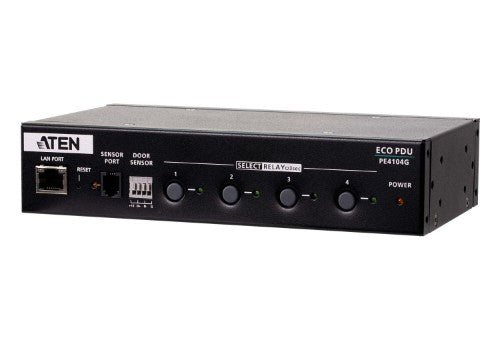

ATEN 4-Outlet IP Control Box

4-Outlet IP Control Box

Key Features

• Local and remote power outlet control (On, Off, Power Cycle) by individual outlets
• Power-on sequencing - users can set the power on sequence and delay time for each port to allow equipment to be turned on in a proper order
• Works with web-based eco DC software
• Remote power control via TCP/IP and a built in 10/100 Ethernet port

Description

Engineered to be an intelligent power distribution solution, the PE4104G IP Control Box ships with 4 power outlets in an IEC socket configuration. It provides secure, centralized, intelligent, and remote power management of data center IT equipment to minimize the operating cost.
1x IP Control Box
1x KC06-0012-B07G Standard Rack Mount Kit
1x LINP-10F3-2B0G Power Cord
4x 0X02-0040-002G Footpads
1x User Instructions

Specifications

Design
PDU types	Basic
Product colour	Black
Certification	CE-EMC CE-LVD
Rack capacity	1U
Ports & interfaces

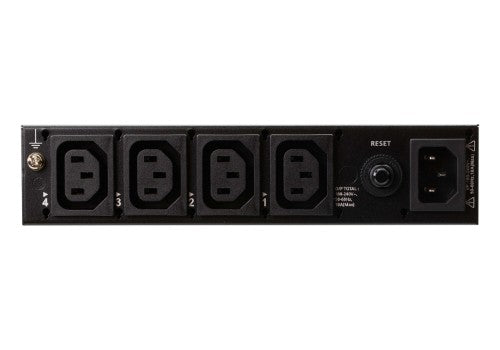

Power plug	IEC 320
AC outlets quantity	4 AC outlet(s)
AC outlet types	C13 coupler
Ethernet LAN (RJ-45) ports	1
Features
LED indicators	Yes
Cable length	3 m
Certification	CE-EMC CE-LVD
Reset button	Yes
Ergonomics
LED indicators	Yes
Cable length	3 m
Power
Nominal input voltage	100-240 V
Maximum current	10 A
Weight & dimensions
Weight	1.29 kg
Width	200 mm
Depth	115 mm
Height	44 mm
Package width	100 mm
Package depth	283 mm
Package height	173 mm
Package weight	1.49 kg
Packaging data
Package width	100 mm
Package depth	283 mm
Package height	173 mm
Package weight	1.49 kg
Packaging content
Cables included	AC
Manual	Yes
Rack mount kit	Yes
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Technical details
Compliance certificates	CE
Logistics data
Master (outer) case width	292 mm
Master (outer) case length	517 mm
Master (outer) case height	194 mm
Master (outer) case gross weight	8.04 kg
Products per master (outer) case	5 pc(s)
Master (outer) case net weight	6.45 kg
