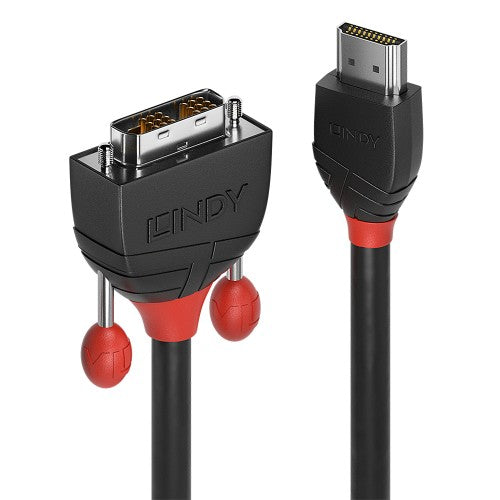

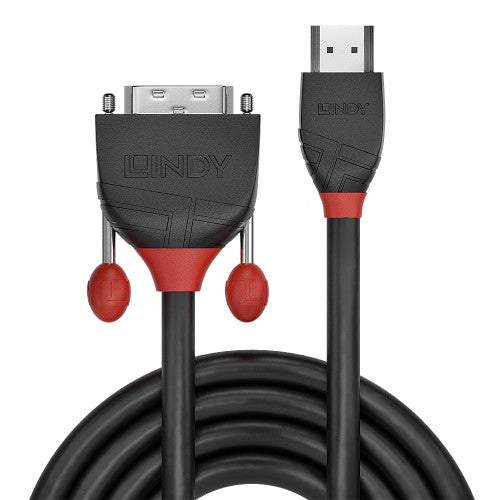

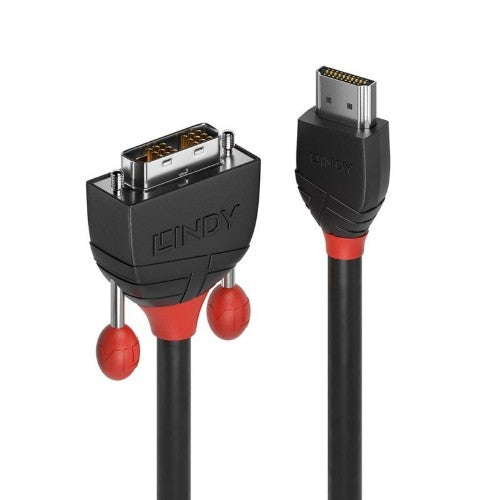

Lindy 2m HDMI to DVI Cable, Black Line

2m HDMI to DVI Cable, Black Line

Key Features

• Entry level HDMI Male to DVI-D Male cable for home and small office applications
• Supports DVI resolutions up to 1920x1200@60Hz and HDTV resolutions up to 1080p
• Robust PVC housing, nickel connectors, 24K gold plated contacts
• Tripled shielded cable, corrosion resistant tinned copper 30AWG conductors
• 10 year warranty

Description

From the Lines cable connectivity concept developed by Lindy, Black Line HDMI to DVI-D cables are fully featured, entry level connection solutions, perfect for connecting PCs to monitors or projectors.

Black Line HDMI to DVI-D cables feature triple shielded construction with 30AWG tinned copper conductors for performance and corrosion resistance. Nickel connectors and 24K gold plated contacts maintain signal integrity and reliability.

The tough PVC housing incorporates an integrated finger grip for easy installation. Large thumb screws allow the connector to be tightened into place without the need for a screwdriver and a flexible strain relief prolongs cable life.

Black Line HDMI to DVI-D cables support resolutions up to 1920x1200@60Hz including HDTV resolutions up to 1080p.

Black Line HDMI to DVI-D cables are available in lengths of 0.5m to 10m.

Specifications

Features
Cable shielding	Aluminium braid
Cable length	2 m
Connector 1	HDMI Type A (Standard)
Connector 2	DVI-D
Connector 1 gender	Male
Connector 2 gender	Male
Connector contacts plating	Gold
Product colour	Black
Jacket material	Polyvinyl chloride (PVC)
AWG wire size	30
Data transfer rate	4.95 Gbit/s
Maximum resolution	1920 x 1200 pixels
Supported graphics resolutions	1920 x 1200 (WUXGA)
Certification	RoHS, REACH, UL
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Dual Link DVI	No
Maximum refresh rate	60 Hz
Bend radius (min)	5.5 cm
Conductor material	Tinned copper
Nominal attenuation	1 €“ 825Mhz 12db
Cable type	Round cable
Connector material	Nickel
Connector housing material	Polyvinyl chloride (PVC)
Contact material	Brass
Operational conditions
Operating temperature (T-T)	-20 - 80 °C
Storage temperature (T-T)	-25 - 85 °C
Weight & dimensions
Cable diameter	5.5 mm
Connector 1 dimensions (WxDxH)	21.4 x 34.2 x 12.7 mm
Connector 2 dimensions (WxDxH)	36.8 x 44.5 x 12.5 mm
Packaging data
Package type	Polybag
Quantity per pack	1 pc(s)
Technical details
Harmonized System (HS) code	84733080
Packaging content
Package type	Polybag
Quantity per pack	1 pc(s)
Logistics data
Harmonized System (HS) code	84733080
