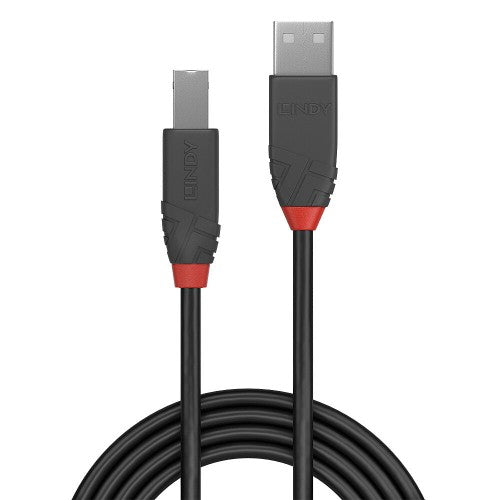

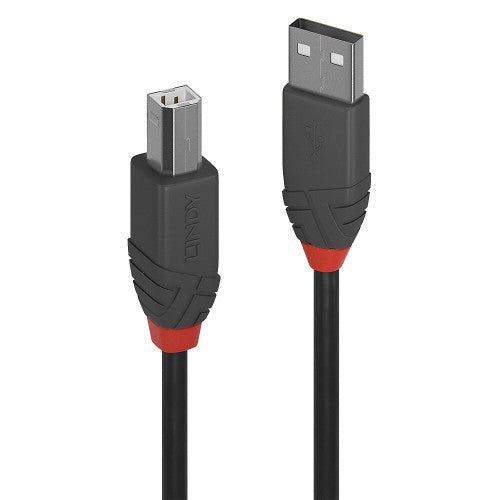

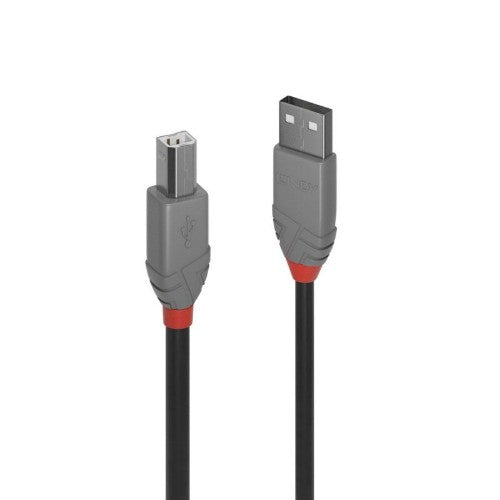

Lindy 0.5m USB 2.0 Type A to B Cable, Anthra Line

0.5m USB 2.0 Type A to B Cable, Anthra Line

Key Features

• Professional choice USB 2.0 Type A to B cable for commercial and high performance AV and IT installations
• Supports data transfer speeds up to 480Mbps
• Robust PVC housing, nickel connectors and gold plated contactsandnbsp;
• Double shielded cable, corrosion resistant tinned copper conductors
• USB 2.0, 480Mbps; 10 year warranty

Description

From the Lines cable connectivity concept developed by Lindy, Anthra Line USB 2.0 Type A to B cables are the professional choice for high performance connections in commercial AV and IT installations.

Anthra Line USB 2.0 cables are premium connections that feature double shielded construction with copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes.

Anthra Line USB 2.0 Type A to B cables are available in lengths from 0.2m to 10m.

Specifications

Features
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Plug and Play	Yes
USB version	USB 2.0
Connector 1	USB A
Connector 2	USB B
Cable length	0.5 m
Connector contacts plating	Gold
Product colour	Black, Grey
Maximum data transfer rate	480 Mbit/s
Cable type	Round cable
AWG wire size	26/28
Certification	RoHS, REACH, UL
Connector 1 gender	Male
Connector 2 gender	Male
Conductor material	Tinned copper
Cable jacket material	Polyvinyl chloride (PVC)
Connector material	Nickel
Contact material	Copper
Connector shielding	Yes
Connector shield material	Aluminium
Connector housing material	Polyvinyl chloride (PVC)
Nominal attenuation	5.8db/km
Cable diameter	4.4 mm
Quantity per pack	1 pc(s)
Weight & dimensions
Cable diameter	4.4 mm
Bend radius (min)	1.6 cm
Connector 1 dimensions (WxDxH)	15.5 x 35 x 7.8 mm
Connector 2 dimensions (WxDxH)	11.8 x 35 x 10.2 mm
Package type	Polybag
Packaging data
Package type	Polybag
Quantity per pack	1 pc(s)
Operational conditions
Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	0 - 60 °C
Technical details
Harmonized System (HS) code	84733080
Other features
Package type	Polybag
Cable type	Round cable
Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	0 - 60 °C
Logistics data
Harmonized System (HS) code	84733080
