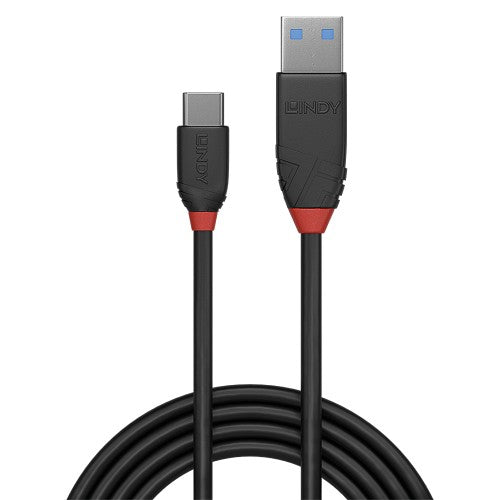

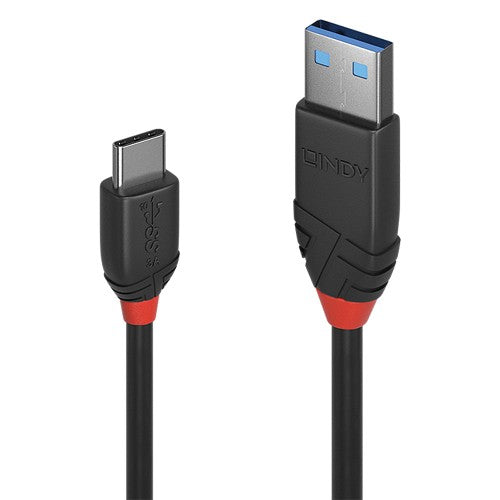

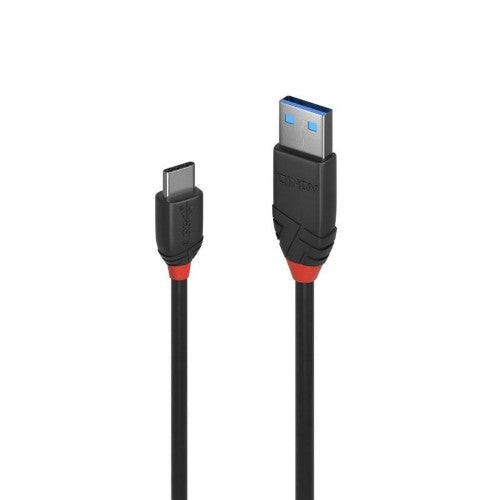

Lindy 0.5m USB 3.2 Type A to C Cable, 10Gbps, Black Line

0.5m USB 3.2 Type A to C Cable, 10Gbps, Black Line

Key Features

• Entry level USB 3.2 Gen 2 Type A to C cable for home and small office applications
• SuperSpeed USB 10Gbps - supports data transfer speeds up to 10Gbps (USB 3.1, USB 3.1 Gen 2)
• Robust PVC housing, nickel connectors, gold plated contacts
• Triple shielded cable, corrosion resistant tinned copper conductors
• 10 year warranty

Description

The Black Line USB 3.2 Type A to C cables from Lindy's Cable Lines concept are fully featured, entry level high resolution connection solutions, perfect for home and small office use.

Black Line USB 3.2 Type A to C cables feature triple shielded construction with tinned copper conductors for premium performance and corrosion resistance. Nickel connectors and gold plated contacts maintain signal integrity and reliability.

USB bandwidths up to 10Gbps are supported for rapid transfer of large data volumes.

USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.

Black Line USB 3.2 Type A to C cables are available in the following lengths: 0.5m, 1m and 1.5m.

Information about USB generations We have adapted the naming of our USB 3 cables to follow the updated USB specification. USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.

Specifications

Features
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Plug and Play	Yes
USB version	USB 3.2 Gen 1 (3.1 Gen 1)
Connector 1	USB A
Connector 2	USB C
Cable length	0.5 m
Connector contacts plating	Gold
Product colour	Black
Maximum data transfer rate	10000 Mbit/s
Cable type	Round cable
AWG wire size	26/30/30
Certification	RoHS, REACH, UL
Connector 1 gender	Male
Connector 2 gender	Male
Conductor material	Tinned copper
Cable jacket material	Polyvinyl chloride (PVC)
Connector material	Nickel
Contact material	Phosphor bronze
Connector shielding	Yes
Connector shield material	Aluminium
Connector housing material	Polyvinyl chloride (PVC)
Nominal attenuation	0.5Mhz €“ 15Ghz 40db
Cable diameter	4.5 mm
Quantity per pack	1 pc(s)
Weight & dimensions
Cable diameter	4.5 mm
Bend radius (min)	4.5 cm
Connector 1 dimensions (WxDxH)	15.5 x 35.1 x 7.8 mm
Connector 2 dimensions (WxDxH)	11 x 25.5 x 7.3 mm
Package type	Polybag
Packaging data
Package type	Polybag
Quantity per pack	1 pc(s)
Operational conditions
Operating temperature (T-T)	-20 - 80 °C
Storage temperature (T-T)	-25 - 85 °C
Technical details
Harmonized System (HS) code	84733080
Other features
Package type	Polybag
Cable type	Round cable
Operating temperature (T-T)	-20 - 80 °C
Storage temperature (T-T)	-25 - 85 °C
Logistics data
Harmonized System (HS) code	84733080
