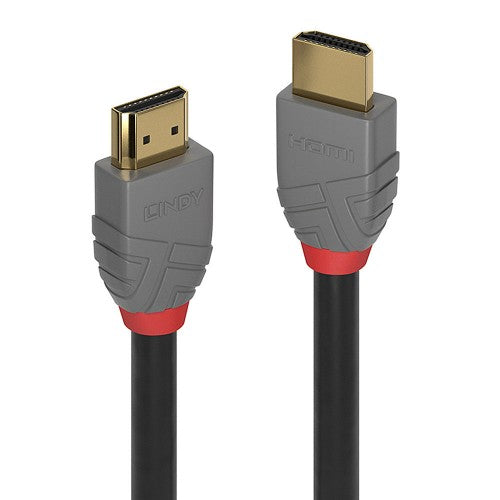

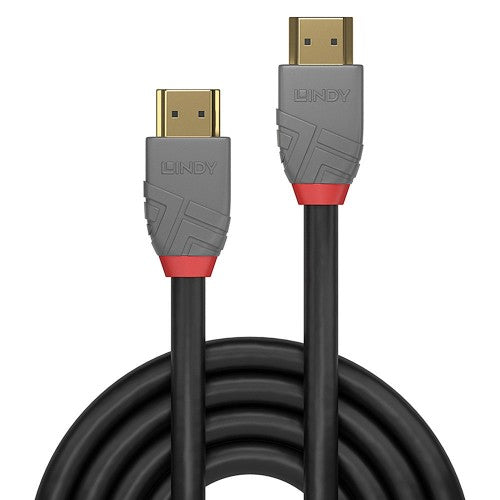

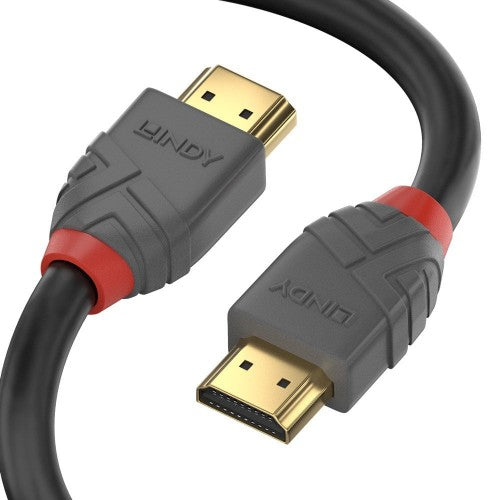

Lindy 10m Standard HDMI Cable, Anthra Line

10m Standard HDMI Cable, Anthra Line

Key Features

• Superior performance and design Standard HDMI 2.0 cable
• Supports UHD resolutions up to 4096x2160@60Hz 4:2:0 8bit
• Robust PVC housing, gold plated connectors and contacts
• Triple shielded cable, corrosion resistant bare copper 24AWG conductors
• HDMI 2.0 compliant, 3D, 4K, 10.2Gbps, HEC, ARC, CEC, Dolby® True HD, DTS-HD Master Audio; 10 year warranty

Description

From the Lines cable connectivity concept developed by Lindy, Anthra Line HDMI cables are the professional choice for high performance connections in commercial AV and IT installations.

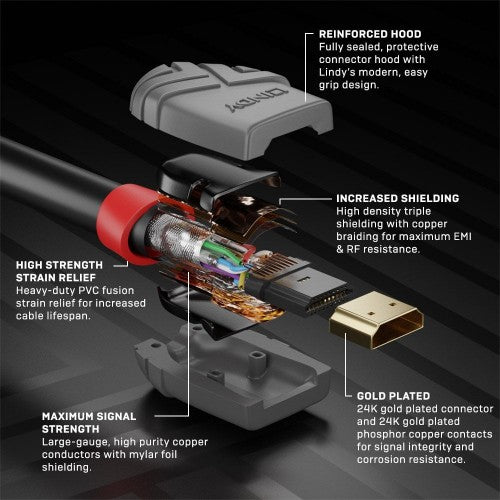

Anthra Line HDMI cables are premium connections that feature triple shielded with 24AWG copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

UHD resolutions up to 4K 4096x2160@60Hz 4:2:0 8bit are supported. Anthra Line HDMI cables are also capable of transmitting 32 channel audio and Dolby® True HD.

These HDMI 2.0 cables support 10.2Gbps bandwidth capacity in cable lengths from 7.5m up to 20m.

Anthra Line HDMI cables are available in lengths from 0.3m to 20m.

Specifications

Features
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Maximum refresh rate	60 Hz
Dolby technologies	DTS-HD, Dolby TrueHD
Cable length	10 m
Connector 1	HDMI Type A (Standard)
Connector 2	HDMI Type A (Standard)
Connector 1 gender	Male
Connector 2 gender	Male
Connector contacts plating	Gold
Product colour	Black, Grey
Cable material	Copper
AWG wire size	24
HDMI version	2.0
Data transfer rate	10.2 Gbit/s
3D	Yes
Supported graphics resolutions	3840 x 2160, 4096 x 2160
Supported video modes	2160p
Certification	RoHS, REACH, UL
Quantity per pack	1 pc(s)
Cable jacket material	Polyvinyl chloride (PVC)
Colour sampling	4:2:0
Bending radius (min)	9.8 cm
Contact material	Phosphor bronze
Connector material	Gold
Connector housing material	Polyvinyl chloride (PVC)
Cable type	Round cable
Shield material	Aluminium
Nominal attenuation	300kHz-825MHz --- 15dB 825MHz-2.475GHz --- 15 - 29dB 2.475GHz-4.125GHz --- 29 - 44dB 4.125GHz-5.1GHz --- 44 - 48dB
Operational conditions
Operating temperature (T-T)	-20 - 80 °C
Storage temperature (T-T)	-25 - 85 °C
Weight & dimensions
Package type	Polybag
Cable diameter	9.8 mm
Connector 1 dimensions (WxDxH)	21.4 x 41.44 x 12.7 mm
Connector 2 dimensions (WxDxH)	21.4 x 41.44 x 12.7 mm
Packaging content
Package type	Polybag
Quantity per pack	1 pc(s)
Technical details
Compliance certificates	RoHS
Logistics data
Harmonized System (HS) code	84733080
