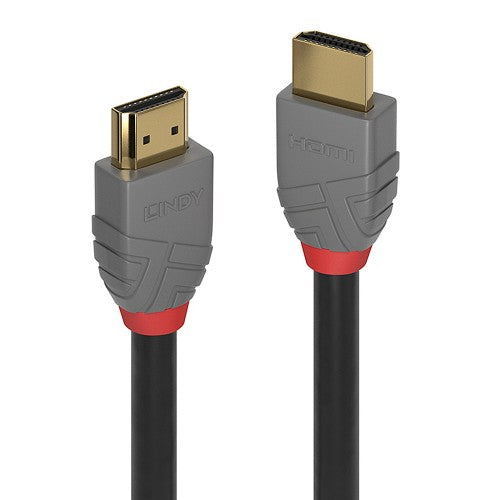

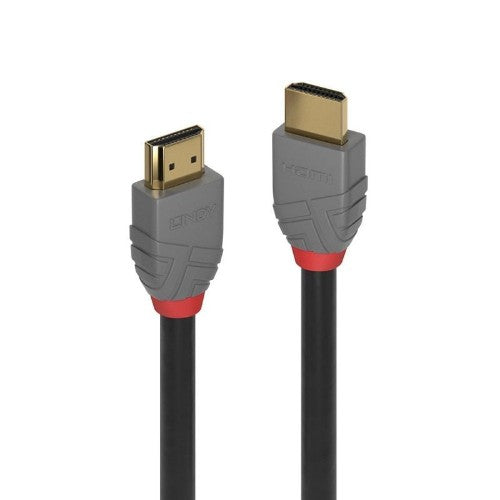

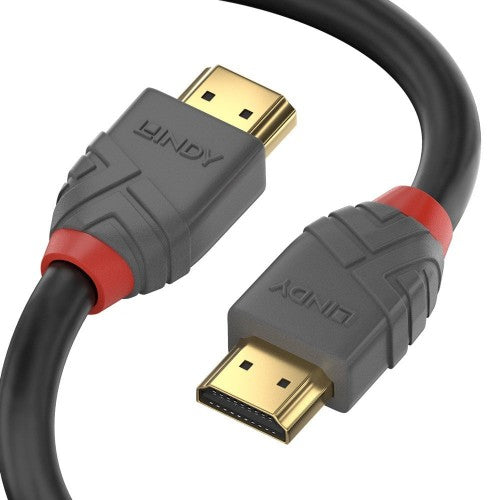

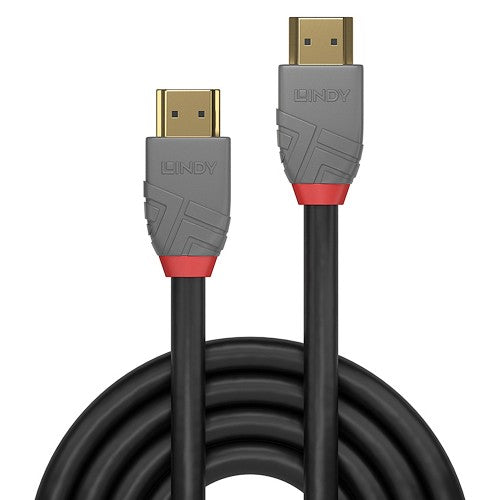

Lindy 3m High Speed HDMI Cable, Anthra Line

3m High Speed HDMI Cable, Anthra Line

Key Features

• Professional choice High Speed HDMI 2.0 cable for commercial and high performance AV and IT installations
• Supports UHD resolutions up to 4096x2160@60Hz and HDTV resolutions up to 1080p
• Robust PVC housing, 24K gold plated connectors and contactsandnbsp;
• Triple shielded cable, corrosion resistant tinned copper 30AWG conductors
• HDMI 2.0 compliant: 3D, 4K, 18Gbps, HEC, ARC, CEC, Dolby® True HD, DTS-HD Master Audio; HDMI ATC certified; 10 year warranty

Description

From the Lines cable connectivity concept developed by Lindy, Anthra Line HDMI cables are the professional choice for high performance connections in commercial AV and IT installations.

Anthra Line HDMI cables are premium connections that feature triple shielded with 30AWG copper conductors with for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

UHD resolutions up to 4K 4096x2160@60Hz 4:4:4 8bit are supported. Anthra Line HDMI cables are also capable of transmitting 32 channel audio and Dolby® True HD.

The HDMI 2.0 specification is supported for 18Gbps bandwidth capacity in cable lengths up to 5m.

Anthra Line HDMI cables are available in lengths from 0.3m to 5m.

Specifications

Features
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Colour depth	8 bit
HDMI Ethernet channel	Yes
Cable length	3 m
Connector 1	HDMI Type A (Standard)
Connector 2	HDMI Type A (Standard)
Connector 1 gender	Male
Connector 2 gender	Male
Connector contacts plating	Gold
Product colour	Black, Grey
Cable material	Copper
AWG wire size	30
Data transfer rate	18 Gbit/s
Maximum resolution	4096 x 2160 pixels
Supported graphics resolutions	4096 x 2160
Supported video modes	2160p
Plug and Play	Yes
Certification	RoHS, REACH, UL, ATC
Quantity per pack	1 pc(s)
Cable jacket material	Polyvinyl chloride (PVC)
Colour sampling	4:4:4
Bending radius (min)	4.8 cm
Contact material	Phosphor copper
Connector material	Gold
Connector housing material	Polyvinyl chloride (PVC)
Cable type	Round cable
Shield material	Copper
Nominal attenuation	300kHz-825MHz <5dB 825MHz-2.475GHz <5dB 2.475GHz-4.125GHz <12dB 4.125GHz-5.1GHz <20dB
Operational conditions
Operating temperature (T-T)	-10 - 80 °C
Storage temperature (T-T)	-10 - 80 °C
Weight & dimensions
Package type	Polybag
Cable diameter	6 mm
Connector 1 dimensions (WxDxH)	20 x 34.2 x 10.9 mm
Connector 2 dimensions (WxDxH)	20 x 34.2 x 10.9 mm
Packaging content
Package type	Polybag
Quantity per pack	1 pc(s)
Logistics data
Harmonized System (HS) code	84733080
