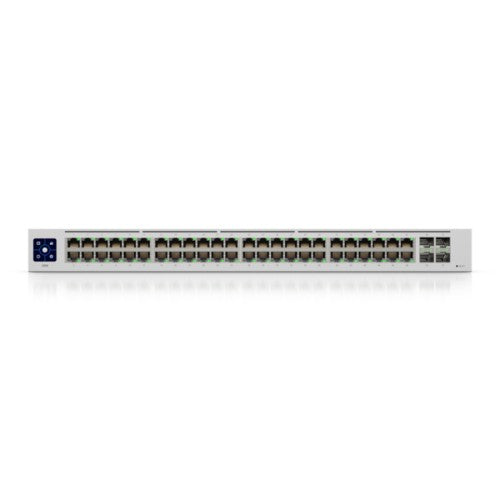

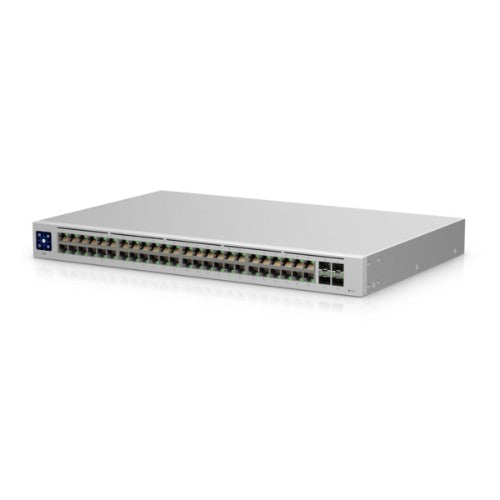

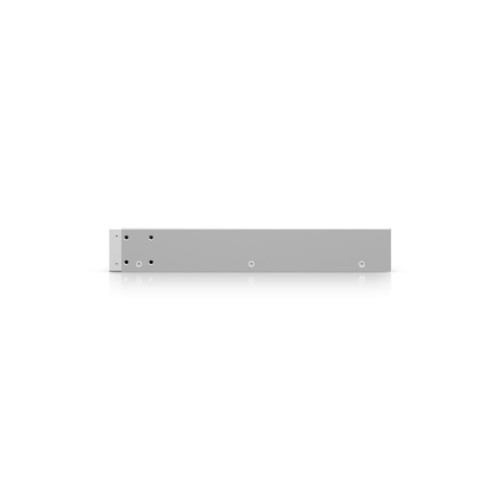

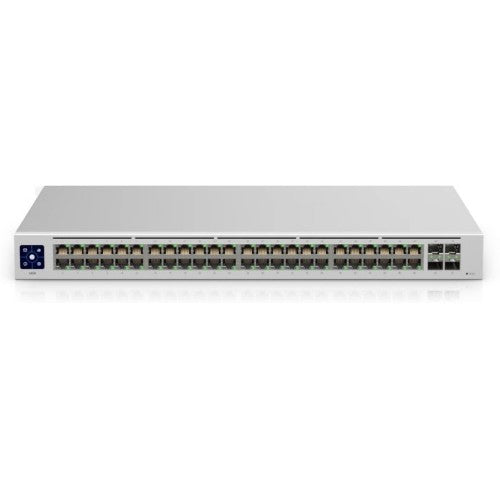

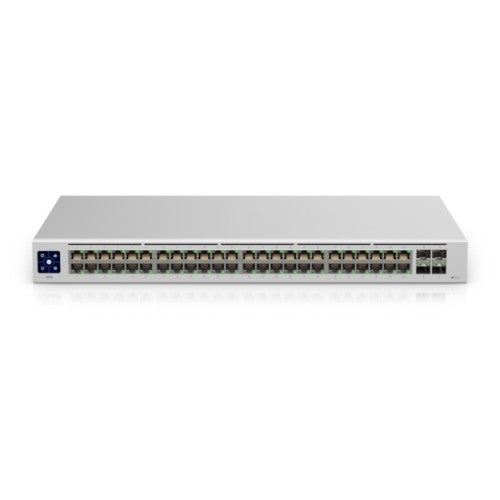

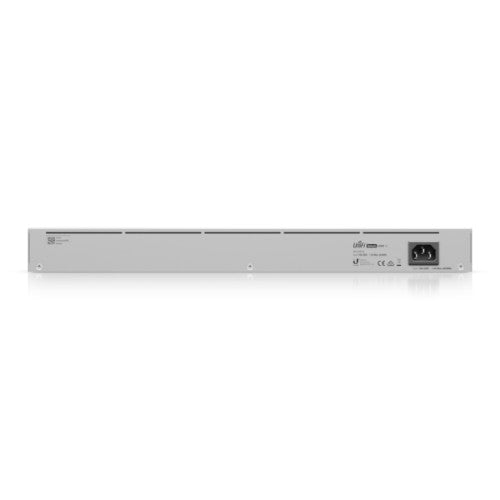

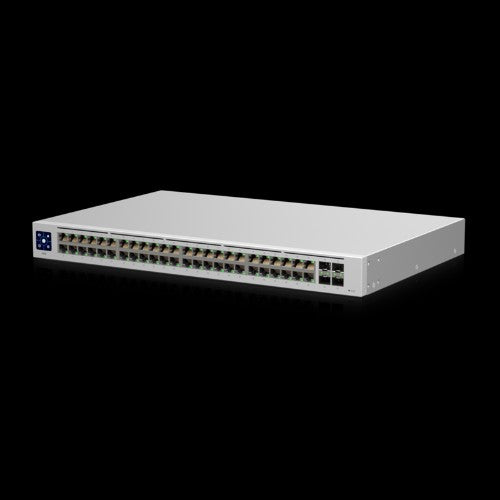

Ubiquiti UniFi USW-48 network switch Managed L2 Gigabit Ethernet (10/100/1000) Silver

Managed, L2, 48x Gigabit Ethernet, 4x 1G SFP, 442.4 x 285 x 43.7 mm, Silver

Key Features

• (48) Gigabit RJ45 ports
• (4) 1G SFP ports
• Layer 2 features
• Fanless, silent cooling
• 1.3" touchscreen display, supports UniFi Network AR
• Managed by UniFi Network Controller (5.13.10 or later)

Description

The UniFi Switch 48 features a rich set of Layer 2 capabilities and fanless, silent cooling for use as an access layer switch. UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.

Specifications

Management features
Switch layer	L2
Switch type	Managed
Ports & interfaces
SFP module slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Network
10G support	No
Data transmission
Switching capacity	52 Gbit/s
Forwarding rate	77.376 Mpps
Design
Rack mounting	Yes
Product colour	Silver
LED indicators	LAN, System
Housing material	Steel
Certification	CE, FCC, IC
Performance
Firmware upgradeable	Yes
Fanless	Yes
Harmonized System (HS) code	85176990
Power
Power consumption (max)	40 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	-15 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	442.4 mm
Depth	285 mm
Height	43.7 mm
Weight	3.9 kg
Technical details
Harmonized System (HS) code	85176990
Certificates
Certification	CE, FCC, IC
Logistics data
Harmonized System (HS) code	85176990
