Ubiquiti UniFi Switch Flex (3-pack) Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) White

Managed, L2, 5x Gigabit Ethernet, PoE, 122.5 x 107.1 x 28 mm, White, 3-pack

Description

PoE Flexibility
The USW-Flex supports a maximum PoE output budget of 46W when powered by 60W 802.3bt PoE++. Four ports offer auto-sensing 802.3af PoE output to power multiple devices on the network.

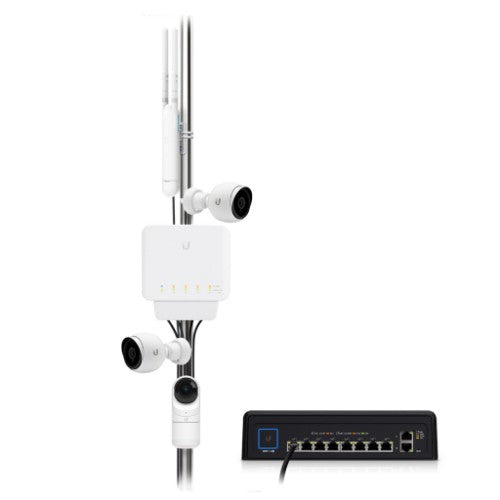

Versatile Mounting
The USW-Flex can be installed horizontally or vertically making it ideal for desktop, magnetic wall-mount, and pole-mount installations.

Indoor/Outdoor Design
The USW-Flex is designed for indoor or outdoor use. With its weatherproof housing and versatile mounting options, the USW-Flex provides both flexibility and durability for environments with extreme temperature variations

Compatible Products
The USW-Flex powers a variety of products, including the UniFi Video Camera G3 Flex, UniFi Video Camera G4 Pro, and UniFi AC Mesh AP, which use 802.3af PoE. To enable its maximum power budget of 46W, the USW-Flex can be powered by the USW-Industrial switch, which provides 60W of 802.3bt PoE++.

Seamless Integration
A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.

Specifications

Virtual LAN features
VLAN support	Yes
Management features
Switch layer	L2
Switch type	Managed
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Network
Networking standards	IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Full duplex	Yes
VLAN support	Yes
Auto MDI/MDI-X	Yes
10G support	No
Data transmission
Jumbo frames support	Yes
Design
Wall mountable	Yes
International Protection (IP) code	IP55
Rack mounting	No
Product colour	White
LED indicators	Activity, Link, PoE, Status
Certification	CE, FCC, IC
Performance
Firmware upgradeable	Yes
Harmonized System (HS) code	85176990
Technical details
Harmonized System (HS) code	85176990
Power
Power consumption (max)	5 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	15.4 W
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	4
Total Power over Ethernet (PoE) budget	46 W
Power over Ethernet (PoE) voltage	57 V
Operational conditions
Operating temperature (T-T)	-40 - 55 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	122.5 mm
Depth	107.1 mm
Height	28 mm
Weight	230 g
Logistics data
Harmonized System (HS) code	85176990
