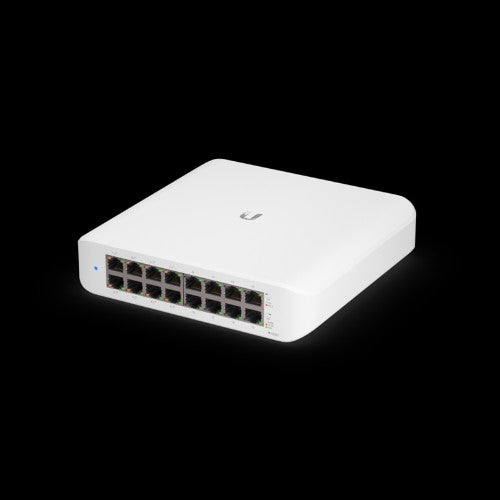

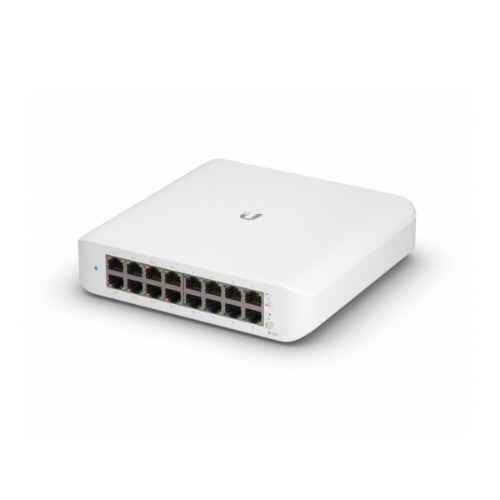

Ubiquiti UniFi Switch Lite 16 PoE L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) White

16 x Gigabit LAN (8 x PoE), Layer 2, 16 Gbps, 1.2 kg, White

Key Features

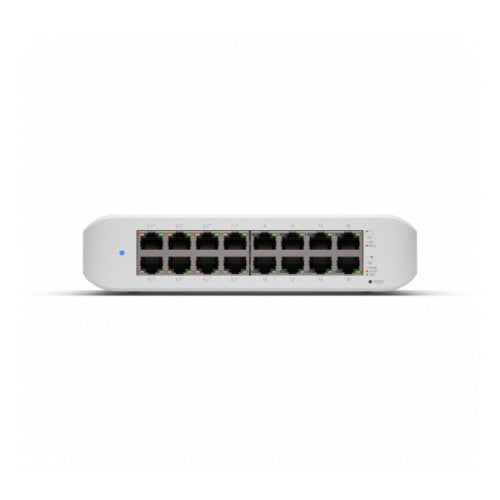

• (16) Gigabit RJ45 ports including (8) 802.3at PoE+
• Managed by UniFi Controller
• 60W power supply

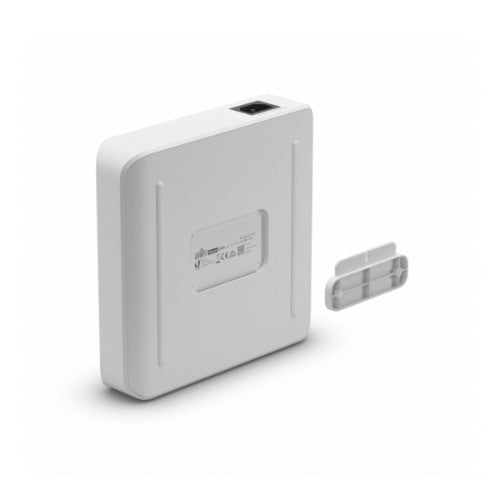

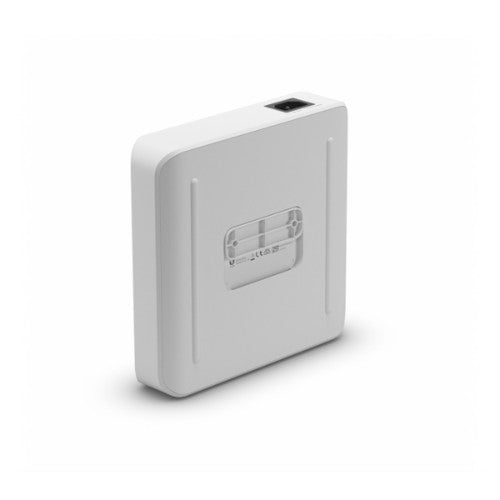

• Wall-mountable (Kit included)

Description

The UniFi Switch Lite 16 PoE is a fully managed Layer 2 switch with sixteen Gigabit Ethernet ports for your RJ45 Ethernet devices. Eight ports also offer auto-sensing 802.3at PoE+ that provide up to a total PoE wattage of 45W for UniFi Access Points or other PoE devices.

Managed and configured by the UniFi Network Controller with UniFi mobile app support, the UniFi Switch Lite 16 PoE offers Layer 2 switching protocols and features. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.

Specifications

Management features
Switch layer	L2
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0

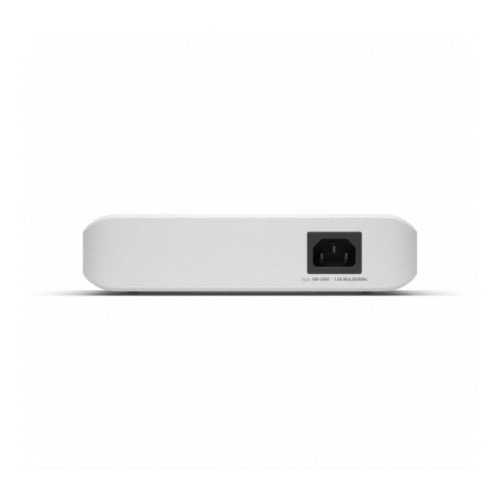

Power connector	AC-in jack
Network
Networking standards	IEEE 802.3af, IEEE 802.3at
10G support	No
Data transmission
Switching capacity	16 Gbit/s
Design
Wall mountable	Yes
Product colour	White
LED indicators	Network, PoE, System
Certification	CE, FCC, IC
Power
Power consumption (max)	15 W
Power supply included	Yes
AC input voltage	100 - 240 V
Number of power supply units	1
Power connector	AC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	30 W
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	8
Operational conditions
Operating temperature (T-T)	-15 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	191.7 mm
Depth	185 mm
Height	43.7 mm
Weight	1.2 kg
Performance
Harmonized System (HS) code	85176990
Technical details
Harmonized System (HS) code	85176990
Certificates
Certification	CE, FCC, IC
Logistics data
Harmonized System (HS) code	85176990
