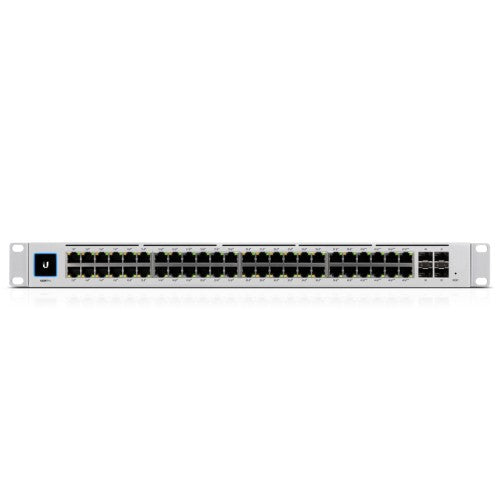

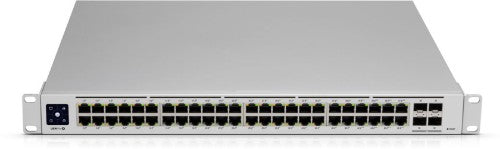

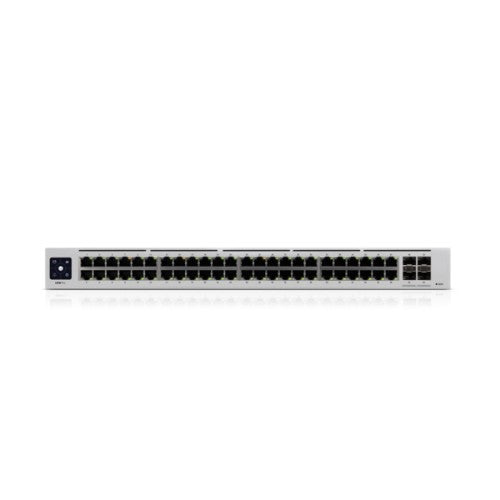

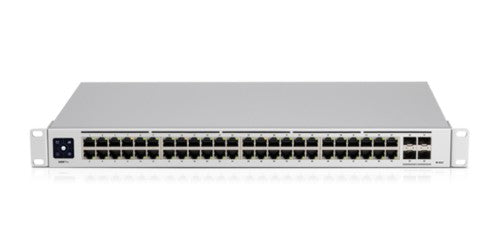

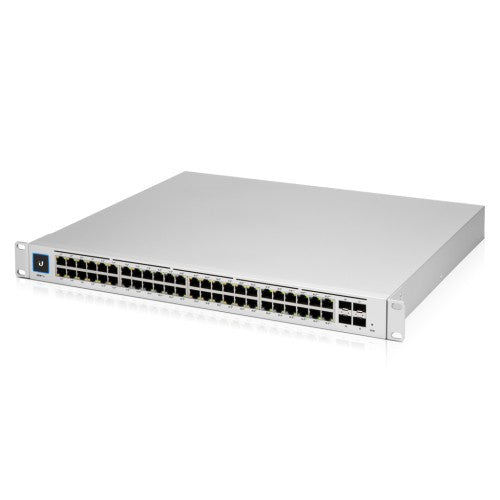

Ubiquiti UniFi USW-PRO-48 network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) 1U Silver
Regular price
$1,350.67 AUD
Regular price
Sale price
$1,350.67 AUD
Unit price
per
Use the contact form below to check availability.
48x Gigabit Ethernet, 4x 10G SFP+, L2/L3, 1.3" Touch, 176Gbps, 60W
The UniFi Switch Pro 48 features a rich set of Layer 2 capabilities and integrates Layer 3 functionality such as inter-VLAN routing, static routing, and DHCP server. The UniFi Switch Pro 48 is an ideal aggregation and access layer switch for any UniFi solution – it combines innovative near-silent cooling with UniFi SmartPower RPS power redundancy. UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.
Key Features
- (48) Gigabit RJ45 ports
- (4) 10G SFP+ ports
- Layer 2 and Layer 3 features
- UniFi SmartPower RPS DC input
- Near-silent cooling
- 1.3" touchscreen display
- Managed by UniFi Network Controller
Description
UniFi Switch Pro 48 is a fully managed Layer 3 switch with (48) Gigabit Ethernet ports. (4) 10G SFP+ uplinks offer link aggregation for higher capacity and increased availability.The UniFi Switch Pro 48 features a rich set of Layer 2 capabilities and integrates Layer 3 functionality such as inter-VLAN routing, static routing, and DHCP server. The UniFi Switch Pro 48 is an ideal aggregation and access layer switch for any UniFi solution – it combines innovative near-silent cooling with UniFi SmartPower RPS power redundancy. UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.
Specifications
| Virtual LAN features | |
|---|---|
| VLAN support | Yes |
| Management features | |
| Switch layer | L2/L3 |
| Switch type | Managed |
| Ports & interfaces | |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| Networking standards | IEEE 802.1x |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | Yes |
| Data transmission | |
| Switching capacity | 176 Gbit/s |
| Forwarding rate | 130.944 Mpps |
| Security | |
| Authentication type | IEEE 802.1x, RADIUS |
| Design | |
| Rack mounting | Yes |
| Backlight display | Yes |
| Product colour | Silver |
| Form factor | 1U |
| LED indicators | Activity, Link, Speed |
| Certification | CE, FCC, IC ETSI300-019-1.4 |
| Performance | |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (max) | 60 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 5.22 A |
| DC input voltage | 11.5 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 442.4 mm |
| Depth | 285.4 mm |
| Height | 43.7 mm |
| Weight | 4 kg |
| Packaging data | |
| User guide | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Packaging content | |
| User guide | Yes |
