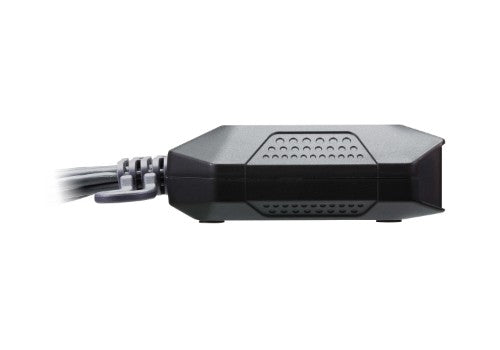

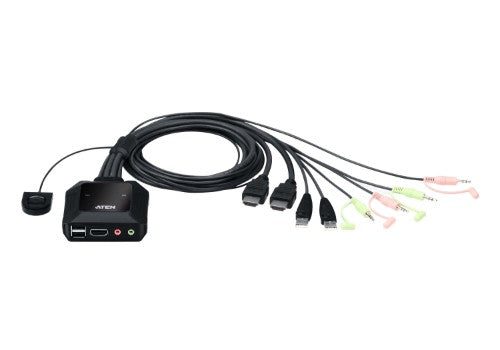

ATEN 2-Port USB 4K HDMI Cable KVM Switch with Remote Port Selector

2-Port USB 4K HDMI Cable KVM Switch with Remote Port Selector

Key Features

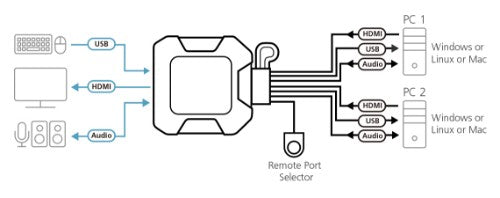

• One KVM console controls two USB HDMI computers
• Superior video quality – up to 4096 x 2160 @ 60 Hz

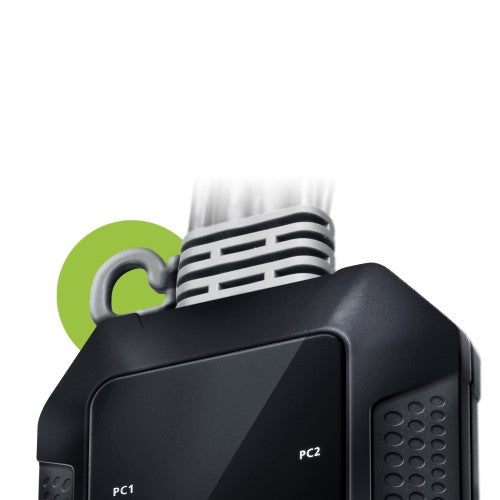

• Hook design for space-saving and organized workstation
• Bus-powered design

Description

1x CS22H 2-Port USB 4K HDMI Cable KVM Switch
1x User Instructions

Specifications

Video
HD type	4K Ultra HD
Video bandwidth	60 Hz
Maximum resolution	4096 x 2160 pixels
Ports & interfaces
Console USB ports quantity	2

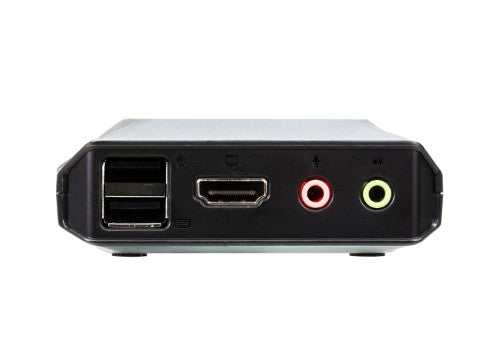

Console ports	3.5mm headphone, 3.5mm mic, HDMI, USB A
Number of microphone inputs	3
Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI
Audio connections	Yes
Headphone outputs	3
HDMI ports quantity	3
Performance
HD type	4K Ultra HD
Video bandwidth	60 Hz
Maximum resolution	4096 x 2160 pixels
Design
Product colour	Black
Rack mounting	No
LED indicators	Yes
Housing material	Plastic
Display
Built-in display	No
Power
Power source	DC
Power consumption (typical)	3.47 W
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Storage relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	83.4 mm
Depth	84.2 mm
Height	30.4 mm
Weight	340 g
Package width	55 mm
Package depth	155 mm
Package height	223 mm
Package weight	420 g
Packaging data
Package width	55 mm
Package depth	155 mm
Package height	223 mm
Package weight	420 g
Packaging content
Quick installation guide	Yes
Logistics data
Master (outer) case width	328 mm
Master (outer) case length	389 mm
Master (outer) case height	330 mm
Master (outer) case gross weight	9.3 kg
Products per master (outer) case	20 pc(s)
Master (outer) case net weight	6.8 kg
Harmonized System (HS) code	85176200
