TP-Link 8-Port 10G Desktop/Rackmount Switch

8× 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps, 160 Gbps, 119.0 Mpps, 294×180×44 mm, 100–240 VAC, 50/60 Hz, 0.8A

Key Features

• Eight 10 Gbps Ports. 8× 10-Gigabit ports unlock the highest performance of your 10G/Multi-Gig bandwidth and devices, and provide up to 160 Gbps of switching capacity
• Lightning-Fast Connections. Provides lightning-fast connections to 10G NAS, Server, 10G PCIe Adapter/ NIC, gaming computer, 2.5G/5G/10G WiFi 6 AP, 8K video, and more
• Ideal for Various Scenarios. Built for lightning-fast connections in business and home offices, workstations, LAN parties, and home entertainment
• Optimal 5-Speed Connections. Auto-negotiation for 5-speed (100Mbps/1G/2.5G/5G/10G) connections provide optimal performance
• Low-Noise Operation. Intelligent fan speed adjustment ensures minimal noise to be non-distracting when use
• Wide Operation Temperature. Durable metal casing and a heat dissipating design guarantee a wide operation temperature (0–50 ℃)
• Plug and Play. Allows for easy deployment without the need for a technician

Description

Futuristic Networking with
Lightning-Fast 10G Connections
8-Port 10G Desktop/Rackmount Switch

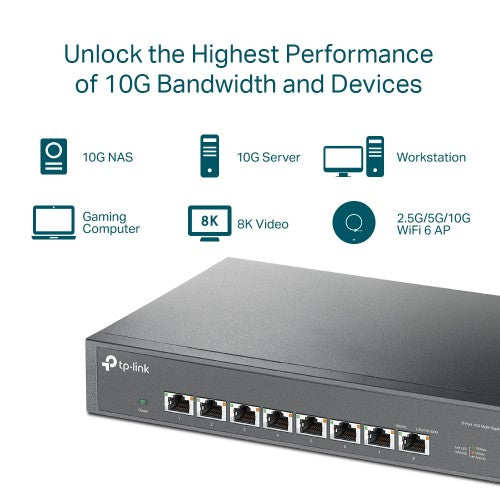

Unlock the Highest Performance of 10G/Multi-Gig Bandwidth
and Devices
As the flagship 10G product, TL-SX1008 is an 8-port 10G desktop/rackmount switch, providing up to 160 Gbps of switching capacity. Auto-negotiation 5-speed (100Mbps/1G/2.5G/5G/10G) connections sense the link speeds and intelligently adjust for compatibility and optimal performance for all your devices, including 10G NAS, 10G server, workstation, gaming computer, 2.5G/5G/10G WiFi 6 AP, 8K video, desktop, and more.

Ready for Immediate Network Upgrading to 10G?
Reliable, lightning-fast connections and the lowest possible latency make it ideal for gaming and small office and home office use.

Lightning-Fast Connections for Business and Home Office
Work at office or home with lightning-fast connections to workstations, desktop computers, and WiFi 6 access points.

Built for Smooth LAN Parties
Never host a laggy LAN party again. Experience the unparalleled speed and lower latency, and prioritize gaming traffic with QoS. Let’s begin the unprecedented smooth game!

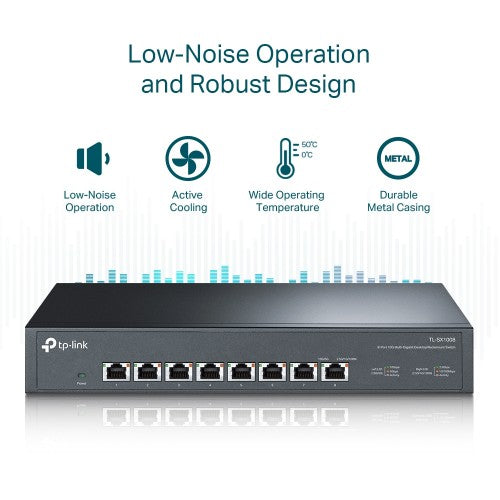

Low-Noise Operation and
Robust Design
Intelligent fan speed adjustment ensures minimal noise to be non-distracting when in use. Durable metal casing and a heat dissipating design guarantee a wide operating temperature (0–50 ℃) that make it ideal for virtually any working environment.

Just Plug and Play for Internet Access
A plug-and-play design allows for easy deployment without the need for a technician. Auto MDI/MDIX eliminates the need for crossover cables.

Flexible Deployment Options
The versatile mounting system gives you the flexibility to place the TL-SX1008 on a desktop or mount it in a rack.

Specifications

Management features
Switch type	Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
10G Ethernet (copper) ports quantity	8
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3p, IEEE 802.3x
Auto MDI/MDI-X	Yes
10G support	Yes
Auto-negotiation	Yes
Data transmission
Jumbo frames	10000
MAC address table	32000 entries
Switching capacity	160 Gbit/s
Store-and-forward	Yes
Jumbo frames support	Yes
Packet buffer memory	16 MB
Forwarding rate	119 Mpps
Design
Rack mounting	Yes
Product colour	Black
Form factor	1U
LED indicators	Yes
Number of fans	1 fan(s)
Certification	CE, FCC ,RoHS
Power
Power consumption (max)	28.4 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	0.8 A
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	294 mm
Depth	180 mm
Height	44 mm
Packaging content
Rack mount kit	Yes
Quick start guide	Yes
Cables included	AC
Packaging data
Package type	Box
Package width	250 mm
Package depth	400 mm
Package height	80 mm
Package weight	2.07 kg
Rack mount kit	Yes
Quick start guide	Yes
Cables included	AC
Performance
Packet buffer memory	16 MB
Auto-negotiation	Yes
Harmonized System (HS) code	85176990
Technical details
Harmonized System (HS) code	85176990
Certificates
Certification	CE, FCC ,RoHS
Logistics data
Harmonized System (HS) code	85176990
