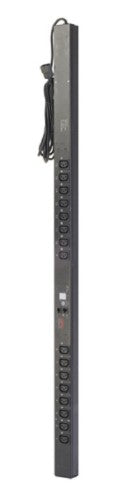

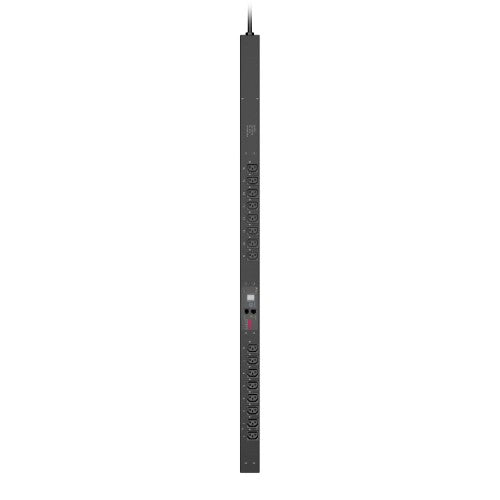

APC AP7950B power distribution unit (PDU) 13 AC outlet(s) 0U Black

230V, 10A, 200V, 208V, 230V, 47 - 63 Hz, IEC-320 C14, 3.05 m, 200-240VAC

Description

Flash Upgradeable

Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only)

Remote Management Capabilities

Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.


Load indicator LED

Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.

Power Delays

Allows users to configure the sequence in which power is turned on or off for each outlet. This helps avoid in-rushes at start-up, which can cause overloaded circuits and dropped loads. Sequencing also allows users to predetermine which piece of equipment is turned on first so other equipment dependant on that unit will function properly.

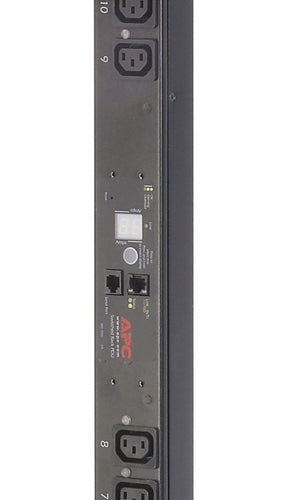

Local Current Monitoring Display

The aggregate current draw per rack PDU is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. (Available on designated SKUs only)

Remote Individual Outlet Control

Remotely manage outlets so users can turn outlets off that are not in use (prevent overloads) or recycle power to locked-up equipment (minimize costly downtime and avoid travel time to equipment).

Alarm Thresholds

Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. (Note: Only available on units with the current monitoring capabilities. Please see SKU specifications for availability)

Network Management Capabilities

Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage rack PDUs from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.

Integrates with StruxureWare Data Center Expert

An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network

Flash Upgradeable

Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only)

Specifications

Design
PDU types	Metered, Switched
Mounting	Vertical
Product colour	Black
Certification	VDE, CE, EAC, EN55022, EN55024, AS/NZS CISPR 22
Rack capacity	0U
Ports & interfaces
Power plug	C14 coupler
AC outlets quantity	13 AC outlet(s)
Output connections	Sixteen IEC 320 C13 outlets
Features
LED indicators	Yes
Cable length	3.05 m
Certification	VDE, CE, EAC, EN55022, EN55024, AS/NZS CISPR 22
Management features
Monitoring	Current, Power, Voltage
Outlet control	Lock-out, Recycle, Turn off, Turn on
Ergonomics
LED indicators	Yes
Cable length	3.05 m
Power
Maximum power	2300 W
Nominal input voltage	200-230 V
Maximum current	10 A
Nominal output voltage	230 V
Load capacity	2300 VA
Maximum input current per phase	10 A
Maximum total current draw per phase	10 A
AC input frequency	47/63 Hz
Certificates
Certification	VDE, CE, EAC, EN55022, EN55024, AS/NZS CISPR 22
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Storage relative humidity (H-H)	5 - 95%
Operating relative humidity (H-H)	5 - 95%
Operating altitude	0 - 4500 m
Non-operating altitude	0 - 15000 m
Operating temperature (T-T)	23 - 113 °F
Weight & dimensions
Weight	4.3 kg
Width	55.6 mm
Depth	43.9 mm
Height	1244.6 mm
Package width	152.4 mm
Package depth	127 mm
Package height	2133.6 mm
Package weight	5.2 kg
Packaging data
Package width	152.4 mm
Package depth	127 mm
Package height	2133.6 mm
Package weight	5.2 kg
Technical details
Compliance certificates	RoHS
