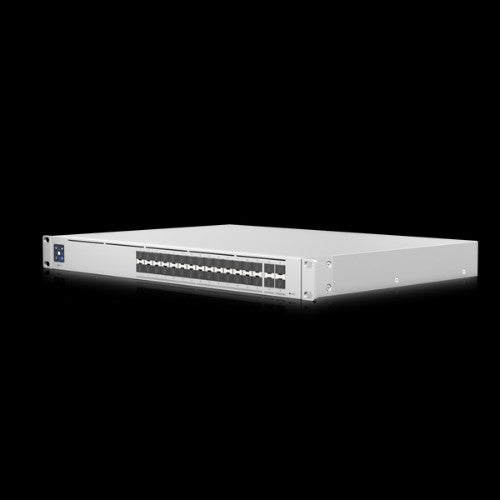

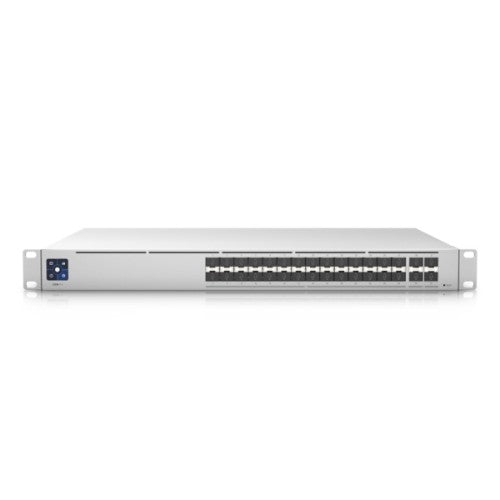

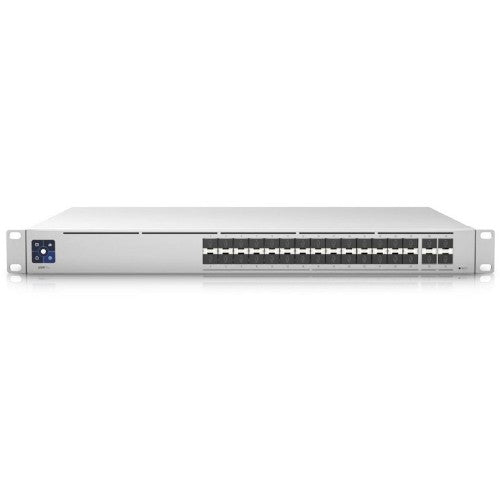

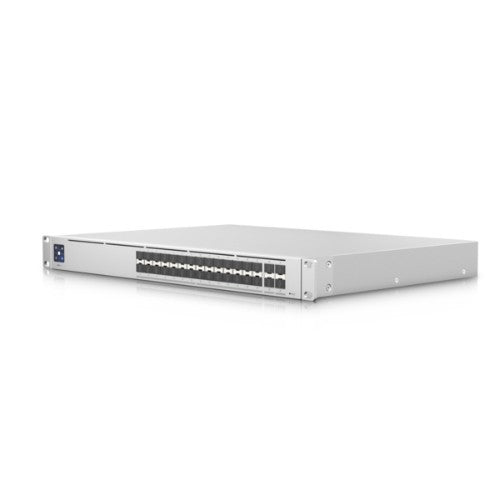

Ubiquiti UniFi Switch Pro Aggregation Managed L3 Grey

Fully Managed Layer 3 Switch, with (4) 25G SFP28 Ports and (28) 10G SFP+ Ports

Key Features

• (28) 10Gbps SFP+
• (4) 25Gbps SFP28
• 760 Gbps switching capacity
• (1) 1.3” Touchscreen with AR switch management
• (1) Backup 12V DC input connector, SmartPower RPS

Description

Featuring a 1.3” touchscreen, it supports high-bandwidth links to provide link aggregation for higher capacity and increased availability. The USW-Pro-Aggregation is managed through the UniFi controller and mobile App, allowing you to easily build, scale and monitor your enterprise networks.

Specifications

Management features
Switch layer	L3
Switch type	Managed
Ports & interfaces
SFP+ module slots quantity	28
Basic switching RJ-45 Ethernet ports quantity	0
Basic switching RJ-45 Ethernet ports type	No
Power connector	DC-in jack
SFP28 ports quantity	4
Network
VLAN support	Yes
Port mirroring	Yes
Link aggregation	Yes
10G support	Yes
Data transmission
Switching capacity	760 Gbit/s
Throughput	380 Mpps
Static route	Yes
Forwarding rate	565.44 Mpps
Security
DHCP features	DHCP server
Design
Product colour	Grey
LED indicators	Yes
Housing material	Steel
Number of fans	4 fan(s)
Power
Power consumption (max)	100 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	2 A
DC input voltage	11.5 V
Power connector	DC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	-5 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Virtual LAN features
VLAN support	Yes
Weight & dimensions
Width	442 mm
Depth	325 mm
Height	44 mm
Weight	4.6 kg
Performance
Harmonized System (HS) code	85176990
Technical details
Harmonized System (HS) code	85176990
Logistics data
Harmonized System (HS) code	85176990
